500mm Height Q345 Carbon Steel Drawbar Towing Dolly Full Trailer for 40-100 Tons Load

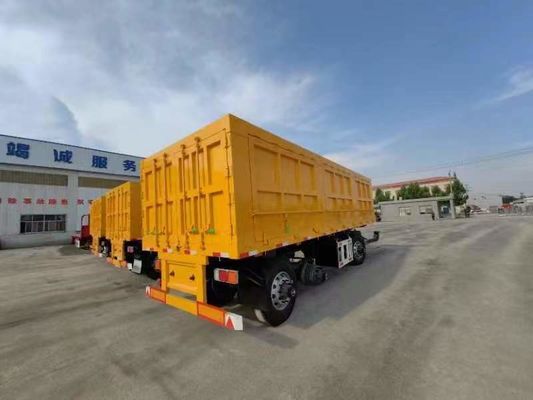

Large Image : 500mm Height Q345 Carbon Steel Drawbar Towing Dolly Full Trailer for 40-100 Tons Load

Product Details:

Place of Origin:	SHANDONG
Brand Name:	YUNSHENG FULL TRAILER

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$3,650.00/units 1-1 units
Payment Terms:	T/T, L/C

Contact Now

500mm Height Q345 Carbon Steel Drawbar Towing Dolly Full Trailer for 40-100 Tons Load

Description

Use:	Truck Trailer	Type:	Full Trailer
Material:	Steel	Size:	7500X2550X270mm(customizable)
Max Payload:	40-100tons	Product Name:	Draw Bar Full Trailer
Usage:	Truck Trailer	Tare Weight:	6.6ton
Color:	Customer's Request	Axle:	13/16 Ton, 3 Axles FUWA
Tire:	12R22.5/11.00R20/12.00R20/315/80R22.5/12.00R22.5/385/65R22.5	Main Beam:	Height 500mm Q345 Carbon Steel
Brake System:	T30/30 Spring Brake Chamber 2 X 40L Air Tanks	Suspension System:	Mechanical /Air Suspension
Function:	Transport Bulk Cargo,Grain,Sand,Coal Etc.

Products Description

3 Axle Hydraulic Side Dump Full Trailer

Wosheng Dump Full Trailers are in great demand from customers, the proven product, which features reliable structure , great loading capacity, excellent power, reliable performance. This trailer model could meet the requirements of different road conditions, and could satisfy your need of long distance highway transportation.

Specification

Products Name	Wosheng 3 Axle Draw Bar Side Dump Full Trailer
Max Payload	40-100 tons
Box Size	7500X2550X1600mm
Tare weight	6600kg
Axle	3 axles 13ton FUWA
Suspension	AIR or Mechanical Suspension
leaf spring	90(w)mm13(thickness)mm10(layer)
platform plate	2.5mm
logo	According to customer's requirment
Braking system	T30/30+T30 spring brake chamber; two units of 40L air tanks
Electrical SYSTEM	1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.)
Spare Wheel Bracket	1 piece of Spare Wheel Bracket
Accessory	1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint
Packaging and delivery	Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
remarks	Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.

Details Images

Featured Tire

Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance

Suspension and break system

Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose.

Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Anti-Tire abrasion Suspension

Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.

Axle
BPW/FUWA/LEAO Axle optional.

Integrated Advanced Low-Alloy Axle Beam,Whole

Axle Beam No Welding process.Strong Carrying

Capacity and high bending Strength.Axle

maintenance-free could reach 3 Year/400,000

kilometers.

TWIST LOCK

Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.

Landing Gear

The warranty period of Chinese brand/JOST landing

gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for

service from -30°C to 120°C.

Packing and Loading

Recommend products

Company Profile

About us

Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used

semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is

Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production

experience in the trailer industry. Please believe that our professional technology and manufacturing

experience can help your transportation be safer and efficient. we can provide high quality products

and competitive prices.

Factory

Our factory commit to strict quality

control and thoughtful customer

service, our experienced staff can

discuss your requirements at any time

to ensure your full satisfaction. We

not only want to be perfect in

appearance, but also pursue the

delicacy of detail. We have advanced

modern equipment, strong technical

force to ensure customer satisfaction

of products and timely delivery.

Certifications

we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000

Quality Management Certification. We are also a national high-tech enterprise and have obtained

more than 30 invention patents and utility model patents.

Why Choose Us

We are your most reliable cooperation partner

We are a national high-tech enterprise and have obtained more than 30 invention patents and utility

model patents. We have attracted customers from all over the world, whether choosing the current

product from our catalog or seeking technical support for your application, you can talk to our

customer service colleagues about your procurement needs.

FAQ

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research

and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional

engineers will design and our well-trained staff will produce according to customer special requirements.

Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process,

finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF

Q6. What logistics ways we can work for shipment?

We can ship all trailer by various transportation tools

For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East,

Africa, Oceania etc, either by container or RoRo/Bulk Shipment.

For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can

ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international

courier service, such as DHL, TNT, UPS, or Fedex.
