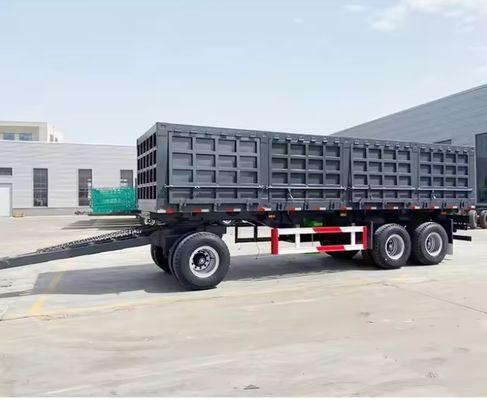

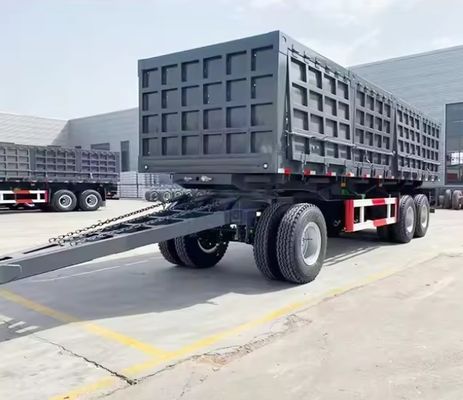

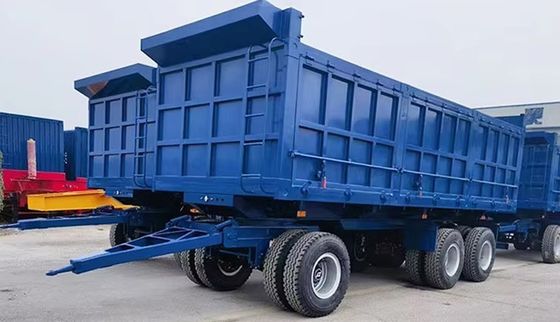

3 Axle Draw Bar Side Dump Full Trailer 40-100 tons Drawbar Towing Dolly Full Truck Trailer

Large Image : 3 Axle Draw Bar Side Dump Full Trailer 40-100 tons Drawbar Towing Dolly Full Truck Trailer

Product Details:

Place of Origin:	SHANDONG
Brand Name:	YUNSHENG FULL TRAILER

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$3,650.00/units 1-1 units
Payment Terms:	T/T, L/C

Contact Now

3 Axle Draw Bar Side Dump Full Trailer 40-100 tons Drawbar Towing Dolly Full Truck Trailer

Description

Use:	Truck Trailer	Type:	Full Trailer
Material:	Steel	Size:	7500X2550X270mm(customizable)
Max Payload:	40-100tons	Product Name:	Draw Bar Full Trailer
Usage:	Truck Trailer	Tare Weight:	6.6ton
Color:	Customer's Request	Axle:	13/16 Ton, 3 Axles FUWA
Tire:	12R22.5/11.00R20/12.00R20/315/80R22.5/12.00R22.5/385/65R22.5	Main Beam:	Height 500mm Q345 Carbon Steel
Brake System:	T30/30 Spring Brake Chamber 2 X 40L Air Tanks	Suspension System:	Mechanical /Air Suspension
Function:	Transport Bulk Cargo,Grain,Sand,Coal Etc.

Products Description

3 Axle Hydraulic Side Dump Full Trailer

Wosheng Dump Full Trailers are in great demand from customers, the proven product, which features reliable structure , great loading capacity, excellent power, reliable performance. This trailer model could meet the requirements of different road conditions, and could satisfy your need of long distance highway transportation.

Specification

Products Name	Wosheng 3 Axle Draw Bar Side Dump Full Trailer
Max Payload	40-100 tons
Box Size	7500X2550X1600mm
Tare weight	6600kg
Axle	3 axles 13ton FUWA
Suspension	AIR or Mechanical Suspension
leaf spring	90(w)mm13(thickness)mm10(layer)
platform plate	2.5mm
logo	According to customer's requirment
Braking system	T30/30+T30 spring brake chamber; two units of 40L air tanks
Electrical SYSTEM	1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.)
Spare Wheel Bracket	1 piece of Spare Wheel Bracket
Accessory	1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint
Packaging and delivery	Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
remarks	Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.

Details Images

Featured Tire

Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance

Suspension and break system

Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose.

Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Anti-Tire abrasion Suspension

Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.

Axle
BPW/FUWA/LEAO Axle optional.

Integrated Advanced Low-Alloy Axle Beam,Whole

Axle Beam No Welding process.Strong Carrying

Capacity and high bending Strength.Axle

maintenance-free could reach 3 Year/400,000

kilometers.

TWIST LOCK

Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.

Landing Gear

The warranty period of Chinese brand/JOST landing

gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for

service from -30°C to 120°C.

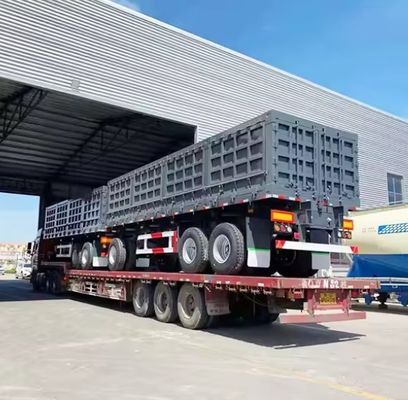

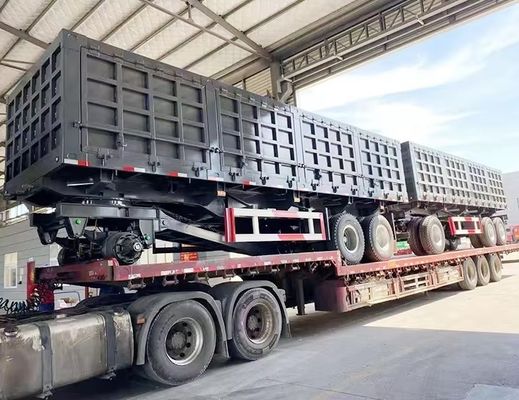

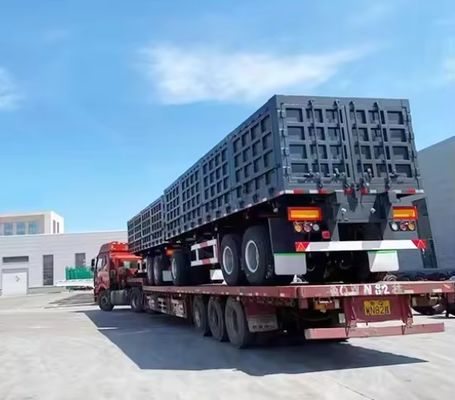

Packing and Loading
