Drawbar Towing Dolly Full Trailer With Side Wall Stake for Heavy Cargo Transportation

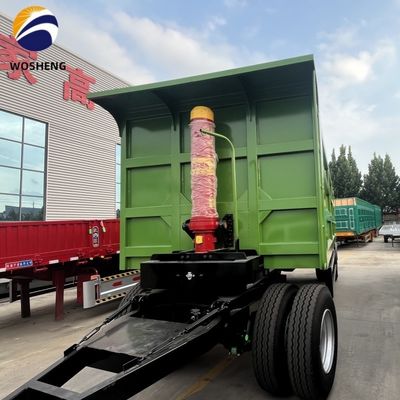

Large Image : Drawbar Towing Dolly Full Trailer With Side Wall Stake for Heavy Cargo Transportation

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Wosheng Full Trailer

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$3,700.00/units 1-4 units
Payment Terms:	T/T, L/C

Contact Now

Drawbar Towing Dolly Full Trailer With Side Wall Stake for Heavy Cargo Transportation

Description

Use:	Truck Trailer, Truck Trailer	Type:	Full Trailer
Material:	Steel	Size:	7600X2450X2500mm(customizable)
Max Payload:	40-100 Tons	Product Name:	Draw Bar Full Trailer
Tare Weight:	6.6ton	Color:	Customer's Request
Axle:	13/16 Ton, 2/3/4 Axles FUWA	Tire:	12R22.5/11.00R20/12.00R20/315/80R22.5/12.00R22.5/385/65R22.5
Main Beam:	Height 500mm Q345 Carbon Steel	Brake System:	T30/30 Spring Brake Chamber 2 X 40L Air Tanks
Suspension System:	Mechanical /Air Suspension	Function:	Transport Bulk Cargo,Grain,Sand,Coal Etc.

Products Description

Low price 2/3/4 Axle Draw Bar Side Wall Full Trailer 40-100 tons Drawbar Towing Dolly Full Truck Trailer With side wall Stake

Wosheng Draw Bar Fence Full Trailer is designed for transporting cargo that requires secure containment and partial protectionfrom external elements. These trailers can be used for a wide range of cargo types, including agricultural products, building materials, and other bulk goods. The fence design offers flexibility in terms of cargo loading and securing.

Specification

Products Name	Draw Bar Fence Full Trailer
Max Payload	40-100 tons
Box Size	7600X2450X1500mm
Tare weight	6600kg
Axle	3 axles 13ton FUWA
Suspension	AIR or Mechanical Suspension
Leaf spring	90(w)mm13(thickness)mm10(layer)
Platform plate	2.5mm
Logo	According to customer's requirment
Braking system	T30/30+T30 spring brake chamber; two units of 40L air tanks
Electrical system	1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector,side light, side reflector etc.)
Spare Wheel Bracket	1 piece of Spare Wheel Bracket
Accessory	1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint
Packaging and delivery	Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
Remarks	Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.

Details Images

Anti-Tire abrasion Suspension

Specially designed anti-Tire ware suspension system prevent tire deflection after loading and avoids tires to the maximum extent worn out. at the same time , easy to disassemble and maintain.

Brake System

T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Axle

BPW/FUWA/LEAO Axle optional.Integrated advanced low-alloy axle beam,Whole axle beam no welding process.strong carrying capacity and high bending strength.Axle maintenance-free could reach 3 year/400,000 kilometers.

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.

Suspension and break system

Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose.

Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Tire

Double Coin / Ling Long / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.

Company Profile

About us

Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.

Factory

Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.

Certifications

We have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management
Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.

We are your most reliable cooperation partner

We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.

Packing and Loading

FAQ

Q1. Are you a factory or trade company ?

We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification?

Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent?

Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. What services can we provide?

Accepted Delivery Terms: EXW, FOB, CFR, CIF
