Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 16690x2700x3000mm |
| Max Payload: | >30000 Kg | Function: | Car Carrier Semi Trailer |
| Color: | Customer's Request | Landing Gear: | 1 Unit, Optioned By Factory |
| King Pin: | 2" (50#), Bolted Type | Suspension: | 2-axles Enforced Mechanical Suspension |
| Rim: | 8.25x22.5 Steel Rim, 4 Pcs | Tire: | 11R22.5, 4pcs, Triangle Or And Other Brand |
| Transport: | Auto Cars | Leaf Spring: | 90(W)mm*13(Thickness)mm*10(Layer) |
| Tools Box: | 1 Standard |
Overall Dimension (mm) | Length width height:16690x2700x3000 mm approx. |
(The height will be adjusted according to the tractor specification) | |
Kingpin Height (mm) | The height will be adjusted according to the tractor specification. |
Loading Height | The overall height when full loading based on the cars dimension. |

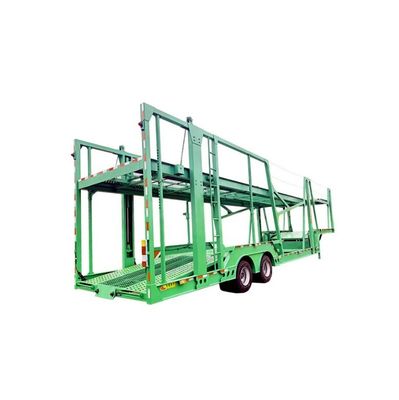

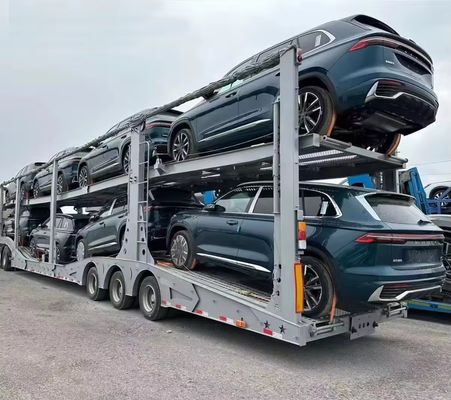

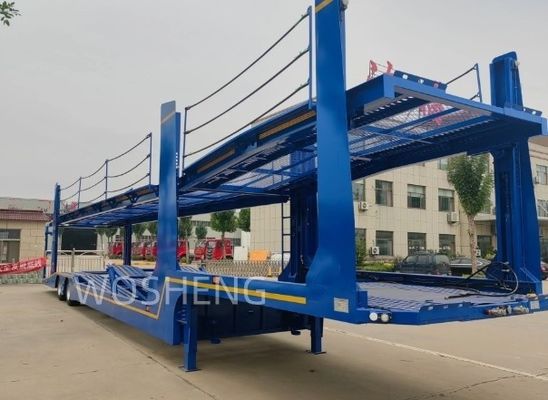

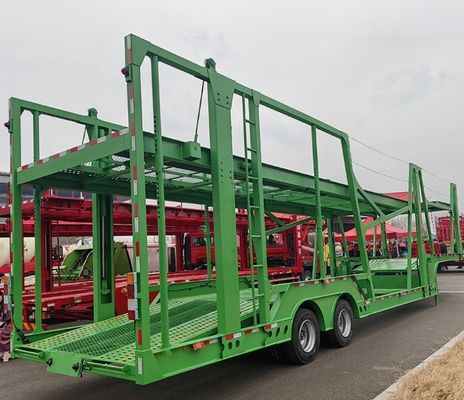

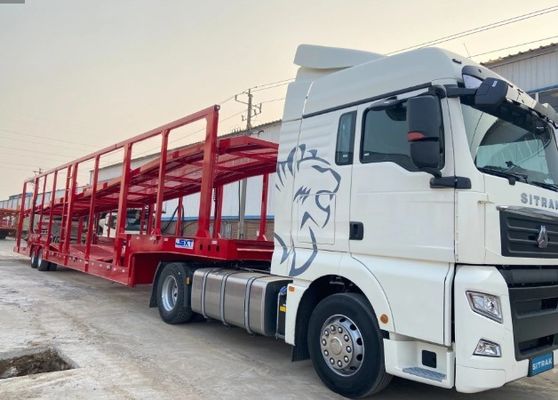

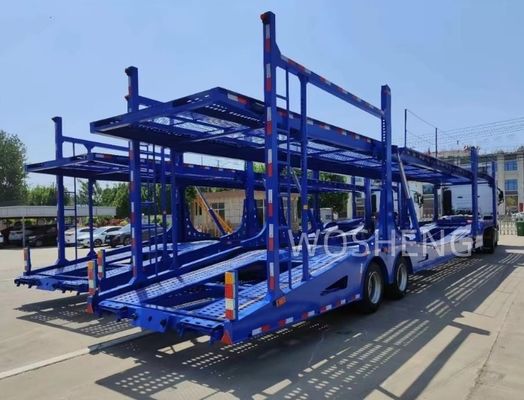

Type | Two decks, top front deck and rear deck can be lifting and down separately by hydraulic system |
Welding standard | All welding are to be done by qualified welder per applicable national standard |
Main beam | High tensile steel T700, beam height 300mm, top flange 12mm, middle web 8mm, bottom flange 12mm |
Stanchions | Reinforced design |
Tire | Type: 11R22.5, 4pcs, Triangle brand from China. |
Rim | 8.25x22.5 steel rim, 4 pcs |
Axle | brand customized low center type for car carrier trailer, 13Tx 2 sets |
Suspension | 2-axles enforced mechanical suspension |
Landing Gear | 1 unit, optioned by factory |
Kingpin | 2“（50#） |
Brake System | 30/30 type on two axles, WABCO brake valve, with ABS |
ABS | 4S/2M ABS |
Electrical System | 24V, LED lamp |
Spare Tire Carrier | Equip 1 set per chassis |
Tool Box | 1 set |
Hydraulic System | High quality hydraulic system, power taken off truck head. |
(PTO device provide by the client according to the truck head brand. ) | |
Accessories | Tighten device 16pcs each deck, include tighten tape. |
8kg, 2pcs, fire Extinguisher | |
Painting | All steel shall be sandblasted to SA 2.5 and painted Epoxy zinc phosphate primer and polyurethane finish painting (anti-corrosion), with client Logo. Specification for the Logo provided by the client. |
Color | By customer requirement. |
Pre-shipping treatment | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. |
