Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer, Oil Tank Semi Trailer |
|---|---|---|---|
| Material: | Steel, Q345B T700 | Size: | 11500x2500x3900 |
| Max Payload: | >60000 Kg | Axles: | 2/3/4 Axles |
| Tare Weight: | 9.8 T | Color: | Customized Color |
| Painting: | Customization | Payload: | Customization |
| Tire Specification: | 12R22.5 Customized | Rim: | 9.0-22.5 |
| Lead Time: | 10 Days |
Detail Specification | ||

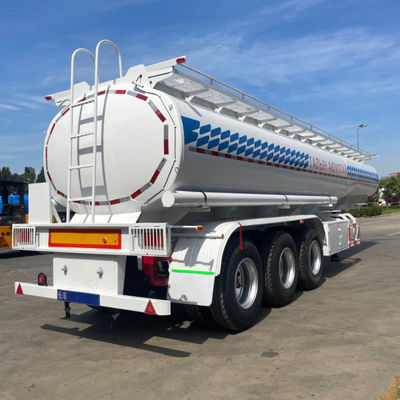

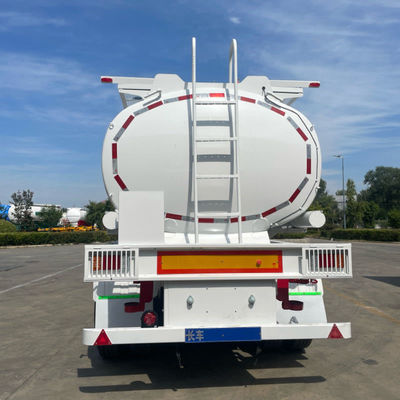

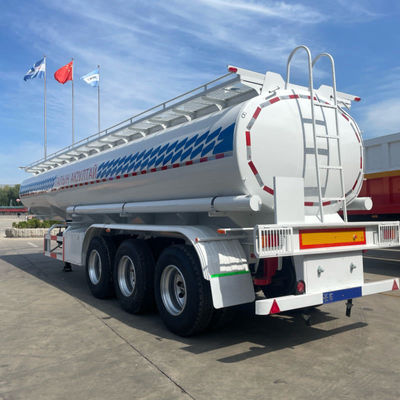

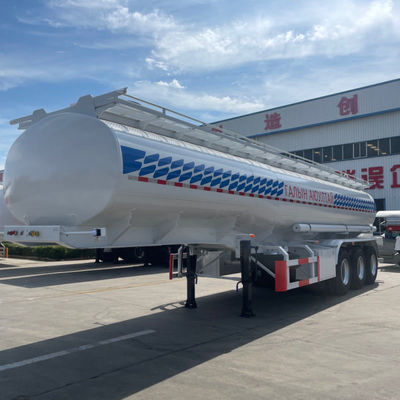

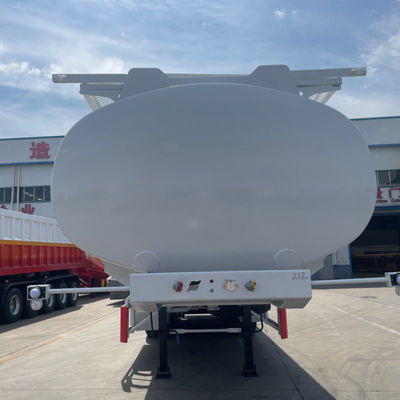

Items | Oil tank semi trailer | |
Tare Weight | 9.8Tons (depends on final configuration) | |
Payload | 60 tons or cutomizable | |
Size | 11500x2500x3900mm (customization) | |
Main Beam | Q345B/T700 steel Height 500mm Upper Plate is 14mm Down plate is 16mm Middle plate is 8mm or customization | |
Axles | 13/16/20 tons, axle amount optional like 2/3/4 axles etc, axle brand optional like SAF, FUWA, BPW etc | |
King pin | 2.00"(50#), bolting king pin, JOST or another brand according to customer | |
Suspension | Mechanical suspension air suspension (American or Geman) | |
Leaf Spring | 10pcs leaf spring, thickness 13mm. width 90mm | |

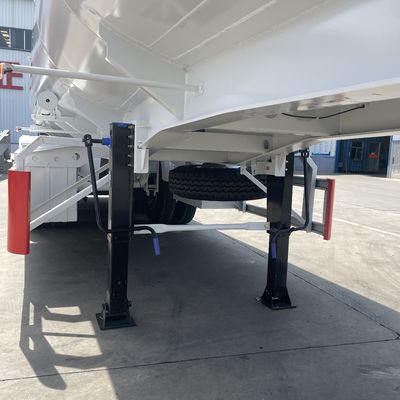

Landing Gear | 28 Tons heavy duty, brand optional fuwa /jost etc | |
Tire specs | 12R22.5/315 80R22.5/11R20/12R20 Choose freely | |
Braking system | dual line brake system , Air chamber T30/30 3X40L gas storage drums | |
Rim | 9.00-22.5 /8.00-20/8.5-20 | |
ABS system | None or installed as your requirement. | |
Painting | Sanding , anti-corrosion , one primer paining add two layer top coat painting | |
Side Gurd | According to customer | |
Electrical system | 24 volt electrical system 7 pin electrical connector, Parking stop, reverse, number plate and indicator lights, rear lights conform to european standard, rear front and side reflectors | |
spare tire | Two set of heavy duty spare wheel carriers, indluding a riser | |
Tool Box | One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar | |
Color | According to customers requirements | |
Delivery | From China Port and carry by container ship, ro-ro ship or by bulk | |
Remark | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects | |
