Product Details:
|
| Use: | Truck Trailer, Tuck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 16690x2700x3000(can Be Customized) |
| Max Payload: | >30tons | Product Name: | 2 Axles Car Carrier Semi Trailer |
| Tire: | 11R22.5, 4pcs, Triangle Or And Other Brand | Rim: | 8.25x22.5 Steel Rim, 4 Pcs |
| Suspension: | 2-axles Enforced Mechanical Suspension | Landing Gear: | 1 Unit, Optioned By Factory |
| Kingpin: | 2" (50#), Bolted Type | Brake System: | 30/30 Type On Two Axles, WABCO Brake Valve, With ABS |

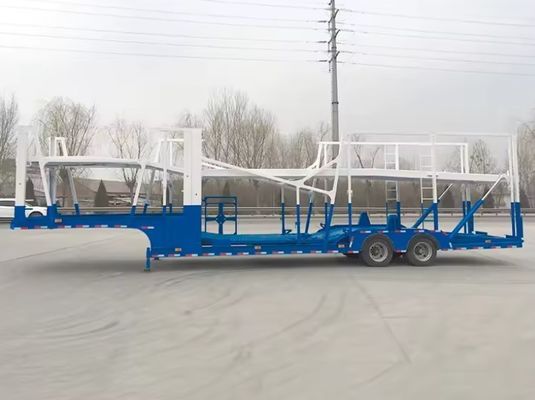

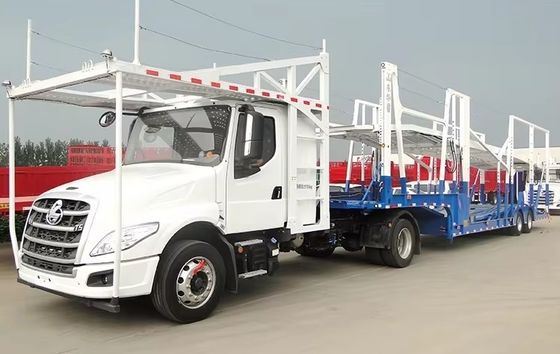

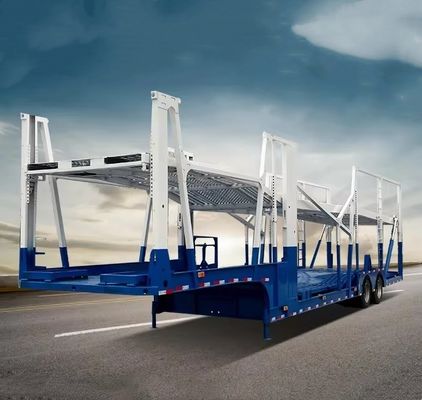

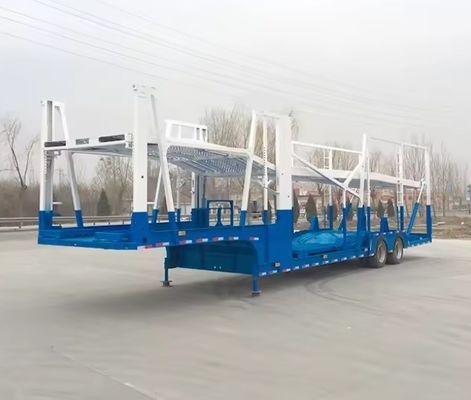

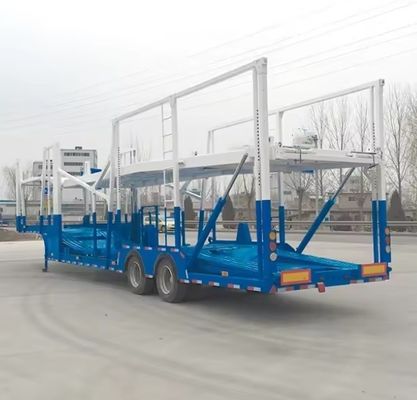

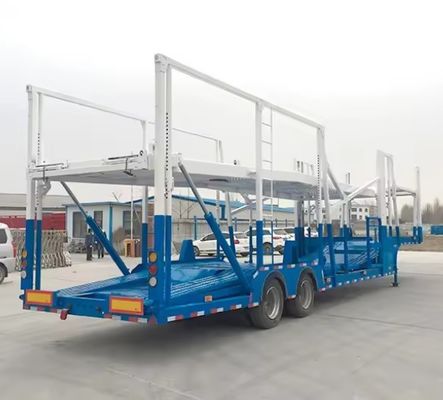

Product Name | Car Carrier Semi Trailer | |
Dimension(Lx W x H)（mm） | 16690x2700x3000 mm (customizable) | |
Tare weight (kg) | 9800 (depends on final configuration) | |
Max Loading Capacity (kg) | 60000 （customizable) | |
Main Beam | Q345B / T700 Steel Height 300mm upper plate is 12mm, down plate is 12mm, middle plate is 8mm. (customizable) | |
Type | Two decks, top front deck and rear deck can be lifting and down separately by hydraulic system | |
Lifting type of upper floor | Hydraulic and manual lifting mechanism | |
Quantity of carried cars | 8 units (4m per car) | |
Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc | |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) | |
Rim | 9.00-22.5/8.00-20/8.50-20 | |
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional | |
Suspension | Mechanical Suspension Air Suspension(American or Geman) | |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) | |
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. | |
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums | |
ABS System | None or installed as your requirement. | |
Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) | |
Color | As per customer requirement | |
Spare Wheel Bracket | 1 piece of Spare Wheel Bracket | |
Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar | |
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; | |
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. | |
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. | |
Remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. | |
Pls kindly noted that pictures and configuration information are only for your reference.The final product can be made according to specific requirements. | ||
