Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel, Steel | Size: | 13000*2550*2900mm(customizable) |
| Max Payload: | 30-100tons | Product Name: | Wosheng 3 Axles Side Dump Semi Trailer Side Tipper Trailer Truck |
| Use: | Truck Triler | Axle: | 13/16 Ton Fuwa/BPW/WOSHENG |
| Rim: | 9.00*22.5/8.00-20/8.5-20 | King Pin: | 2"(50mm)or3.5"(90mm) |
| Suspension: | Mechanical Suspension | Leaf Spring: | 90(w)mm*13/16(thickness)mm*10Layer |
| Condition: | New | Color: | Customers' Request |
Product Name | Side Dump Semi Trailer | |
Dimension(Lx W x H)（mm） | 13000*2550*2900mm (customizable) | |
Inside dimension | 12800mm*2350mm600mm （customizable) | |
Tare weight (kg) | 8500 (depends on final configuration) | |
Max Loading Capacity (kg) | 30000-100000 （customizable) | |
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) | |
Bottom plate thickness (mm) | 2mm zinc-rion alloy plate or 3mm plain plate (customizable) | |
Sidewall Thickness (mm) | 1.5mm - 2.5mm Q235 steel (customizable) | |
side wall height | 600mm (customizable) | |

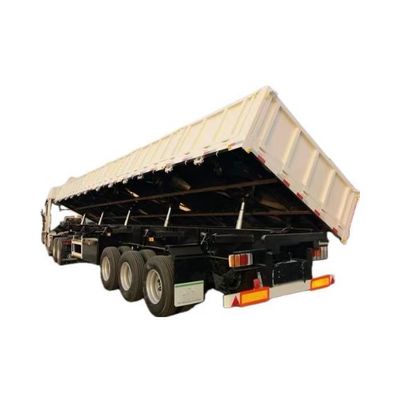

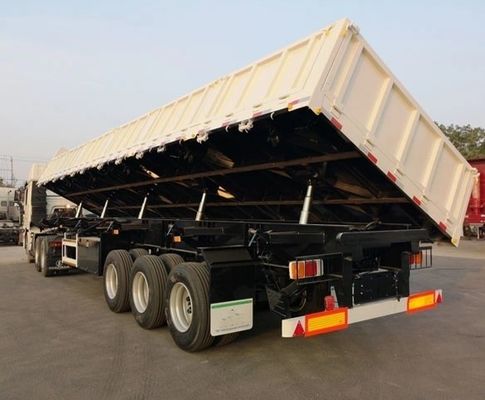

Lifting system | 130 Hydraulic Lifting Cylinder | |
Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc | |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) | |
Rim | 9.00-22.5/8.00-20/8.50-20 | |
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional | |
Suspension | Mechanical Suspension Air Suspension(American or Geman) | |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) | |
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. | |
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums | |
ABS System | None or installed as your requirement. | |
Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) | |
Color | As per customer requirement | |
Spare Wheel Bracket | 1 piece of Spare Wheel Bracket | |
Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar | |
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; | |
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. | |
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. | |
Remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. | |
Pls kindly noted that pictures and configuration information are only for your reference.The final product can be made according to specific requirements. | ||
