Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400X2500X3650mm(customized) |
| Max Payload: | 50-100ton | Usage: | Truck Trailer |
| Color: | Customer's Request | Landing Gear: | SAF Two Speed 28t Heavy Duty Landing Gear |
| Suspension: | AIR/Mechanical Suspension | King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand |
| Axle: | 13/16 Ton, 3 Axles FUWA | Tire: | 12.00R22.5(Brand Optional) |
| Brake System: | Wabco Re 6 Relay Valve T30/30 Spring Brake Chamber 3 X 40L Air Tanks | Function: | Construction, Agriculture, Electronics Transportation |
| Product Name: | Fence Semi Trailer |

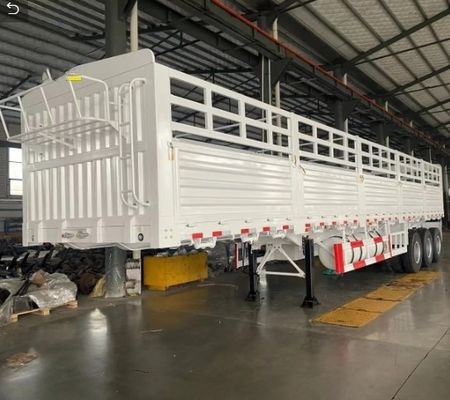

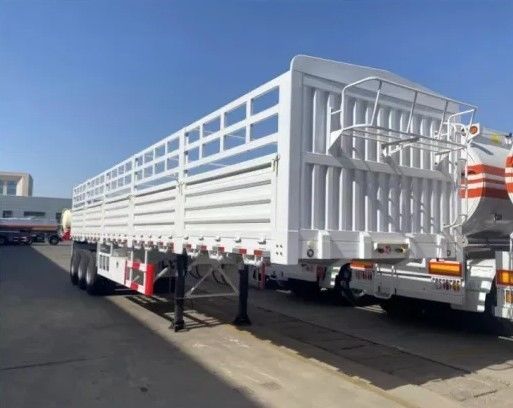

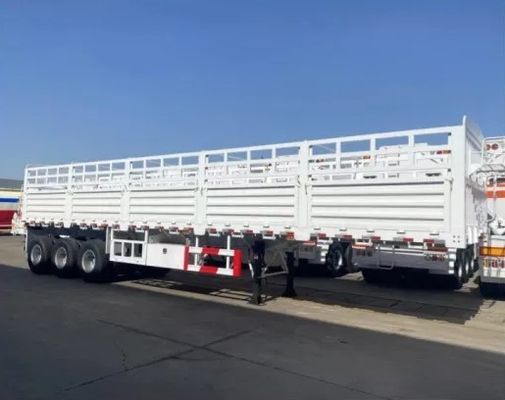

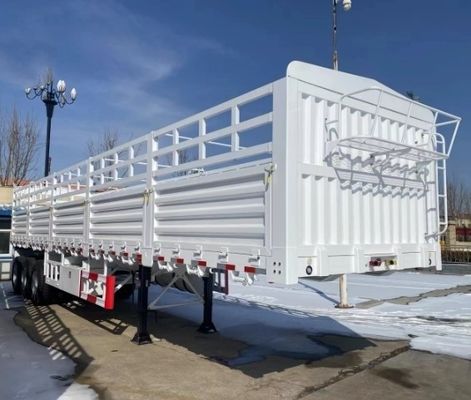

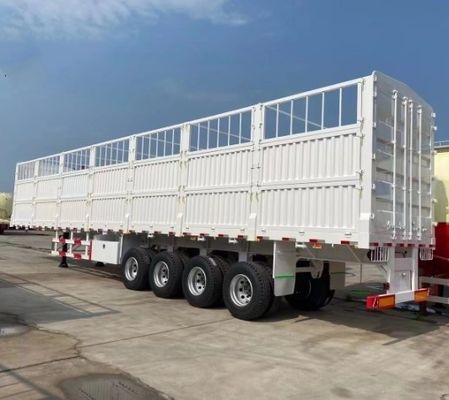

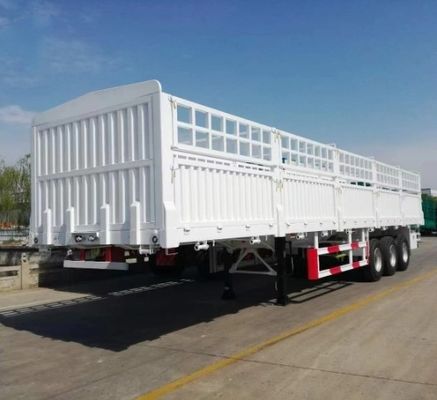

Products Name | Wosheng 3/4 Axle Fence Steel Stake Semi Trailer |
Max Payload | 50-100ton |
Size | 12400X2500X3650mm (customized) |
Tare weight | 6500kg (Depends on final configuration) |
Color | According to customer's requirment |
Axle | 3/4axles 13/16ton FUWA |
Suspension | Air/Mechanical Suspension |
Wheel | 6780X1310X1310 |
King Pin | 2"(50mm)or3.5"(90mm) |
Landing gear | SAF two speed 28t Heavy Duty Landing Gear |
leaf spring | 90(w)mm*13(thickness)mm*10(layer) |
platform plate | 3mm |
logo | According to customer's requirment |
Application | Coal/ Livestock/Vegetable/Cargo Loading |
Main beam | Height: 500mm upper plate is 14mm middle plate is 8mm down plate is 16mm Q345B Steel |
side wall height | 600-1700mm(can be customized) |
side beam | 16mm channel steel(material is Q235B steel) |
tire | 12.00R22.5 Trangle or other brand |
Rim | 9.0-22.5 |
Kin pin | 2"(50mm)or3.5"(90mm) |
Landing gear | SAF two speed 28t Heavy Duty Landing Gear |
Braking system | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; three units of 40L air tanks |
Electrical SYSTEM | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) |
Spare Wheel Bracket | 1 piece of Spare Wheel Bracket |
Accessory | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint |
Packaging and delivery | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. |
