Product Details:
|
| Use: | Truck Trailer, Animal Fence Transport Trucks Trailers | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel, Steel | Size: | 12400x2500x3650mm(customizable), 12400x2500x3650mm |
| Max Payload: | >30000 Kg | Product Name: | Fence Semi Trailer |
| Axle: | 3/4 Axles | King Pin: | 2"(50#) Or 3/5"(90#) |
| Main Bean: | Q345B/T700 | Rim: | 9.00-22.5/8.00-20/8.5-20 |
| Tire: | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 | Color: | Customization |

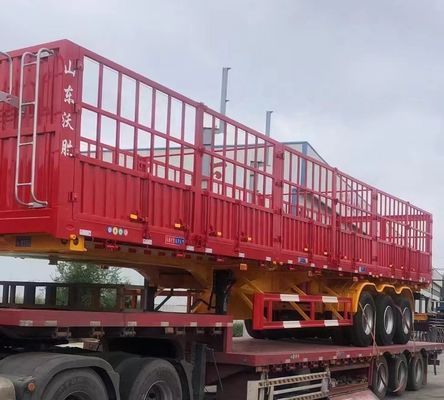

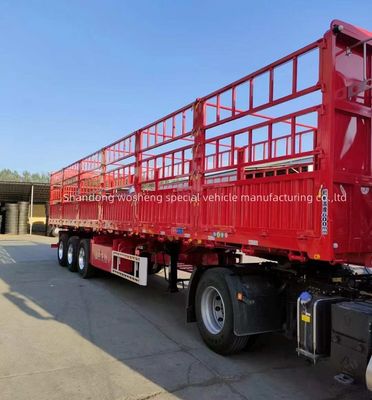

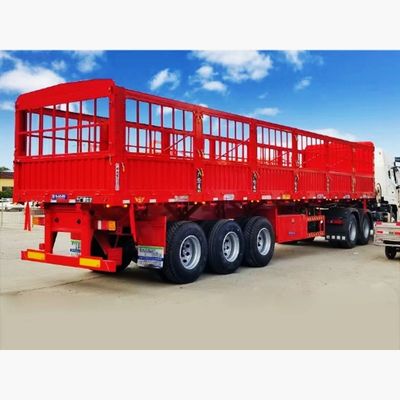

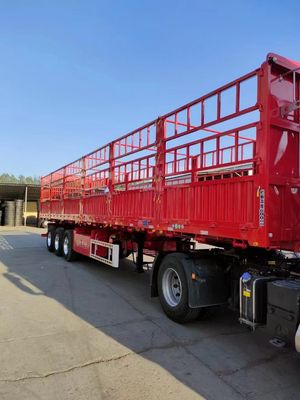

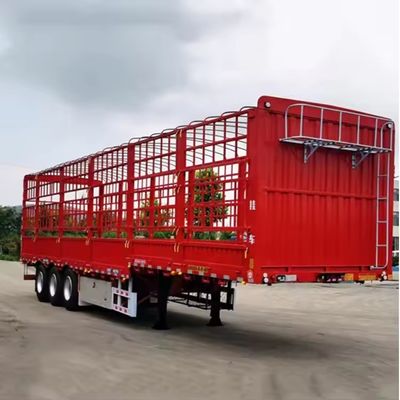

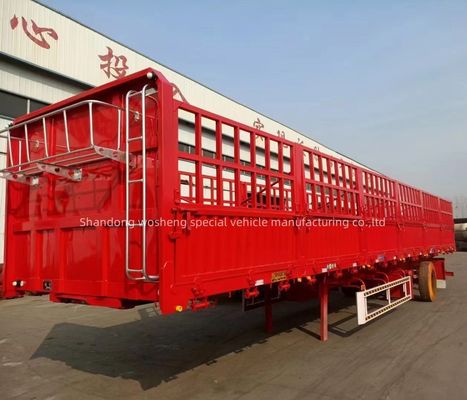

Wosheng Fence Cargo Semi Trailer(Customerize and OEM Service Available) | ||||||
Application | Coal/ Livestock/Vegetable/Cargo Loading | |||||
Product Name | 2 axles fence semi trailer | 3 axles fence semi trailer | 4 axles fence semi trailer | |||
Size（mm) | 9500/11000*2500*2800/3800 | 12500/13000*2500*2800/3800 | 12500/13000*2500*2800/3800 | |||
Payload | 30-60Tons | 30-80Tons | 40-100Tons | |||
Main beam | Height: 500mm, Upper plate is 12mm, Middle plate is 6mm, Down plate is 14mm , Material is Q345B Steel. | Height: 500mm, Upper plate is 16mm, Middle plate is 10mm, Down plate is 18mm ,Material is Q345B Steel. | Height: 500mm, Upper plate is 18mm, Middle plate is 12mm, Down plate is 20mm, Material is Q345B Steel. | |||
Axles | 2*13T/16Ton Wosheng/ FUWA/BPW/Other | 3*13T/16Ton Wosheng/FUWA/BPW/Other | 4*13T/16Ton Wosheng/ FUWA/BPW/Other | |||
Side Wall Height | 600mm-1700mm (can be customized) | |||||
Side beam | 16mm channel steel (Material is Q235B steel) | |||||
Bottom Platform | 3mm checquered steel plate | |||||
Suspension | Mechanical suspension (Air suspension optional) | |||||
Leaf spring | 90(width)mm*13(thickness)mm*10 layer(especial for exporting market) | |||||
Tire | 12R22.5 / 11.00R20 8/12pcs (Other size optional) | |||||
Rim | 9.00-22.5 / 11.00R20 8/12pcs (Other size optional) | |||||
Kin pin | Jost brand 2.0 or 3.5 inch | |||||
Landing gear | Jost brand 28Ton two speed | |||||
Braking system | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks | |||||
Electrical | LED light , 7 ways ,24V | |||||
Tool box | One piece 1m *0.5m*0.5m ( size can be customized) | |||||
Twist locks | Optional | |||||
ABS | Optional | |||||
Painting | 1.Sand blasting processing clean rust.2.Coat of anticorrosive primer. 3.Coats of finish urethane paint. 4.Color as customer choice. | |||||
Shipping terms | By bulk vessel, RORO, or 40HQ container | |||||
Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar | |||||
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; | |||||
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. | |||||
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. | |||||
Remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. | |||||
