Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton

Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton

Large Image :  Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton

Product Details:
Place of Origin: SHANDONG CHINA, CHINA Shandong
Brand Name: WO SHENG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $10,000.00/units 1-1 units
Payment Terms: T/T, L/C
Contact Now

Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 12400X2500X3650mm
Max Payload: 40-80 Ton Product Name: Fence Semi Trailer
Leaf Spring: SAF Two Speed 28t Heavy Duty Landing Gear Brake System: Wabco Re 6 Relay Valve T30/30 Spring Brake Chamber 3 X 40L Air Tanks
SHIPPING: Sea King Pin: 2"(50mm)or3.5"(90mm) JOST Or Other Brand
Axle: 13/16 Ton, 3 Axles FUWA/Wosheng Suspension: Mechanical Suspension
MOQ: 1 Delivery Time: 10 Days

Products picture
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 0

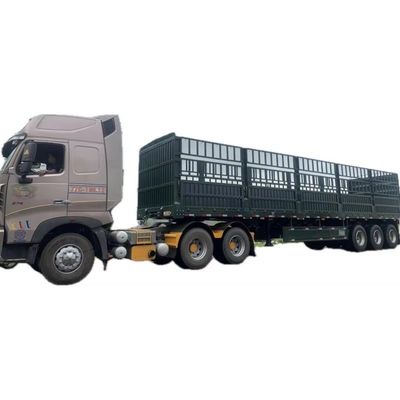

3 Axle Fence Semi Trailer.
WO SHENG Fence semi trailer generally less expensive compared to other specialized trailers, making them a cost-effective option for businesses that require flexibility in cargo transportation.
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 1
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 2
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 3
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 4
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 5
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 6
Products Description
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 7
Product Name
Fence Semi Trailer
Dimension(Lx W x H)（mm）
12400*2500*3650mm (customizable)
Inside dimension
12200mm*2300mm2000mm （customizable)
Tare weight (kg)
7500 (depends on final configuration)
Max Loading Capacity (kg)
50000 （customizable)
Main Beam
Q345B / T700 Steel Height 500mm
upper plate is 14mm,
down plate is 16mm,
middle plate is 8mm. (customizable)
side Beam
16mm channel steel(material is Q235B steel)
bottom plate thickness
3mm (customizable)
Sidewall Thickness (mm)
1.5mm - 2.5mm Q235 steel (customizable)
side wall height
600mm (customizable)
Axles
13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc
Tire
12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional)
Rim
9.00-22.5/8.00-20/8.50-20
King Pin
2"(50mm)or3.5"(90mm) JOST or other brand optional
Suspension
Mechanical Suspension Air Suspension(American or Geman)
Leaf Spring
90(w)mm*13/16(thickness)mm*10(layer)
Landing Gear
28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc.
Brake System
Dual line brake system, Air chamber T30/30,
3 X 40L gas storage drums
ABS System
None or installed as your requirement.
Painting
Sand blasting before painting;one coats of primer, anti
corrosion; two coat of finish painting
Packing
Wax painting treatment to protect the vehicles from sea water,
and the chassis greased to avoid rusting during shipping.
Delivery
From China port, and carry by container ship, ro-ro ship or bulk
ship, the freight cost depends on the volume.
Products detail
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 8

Suspention - Anti-Tire Abrasion

avoids tires to the maximum extent worn out
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 9

bottom

stronger sturction
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 10

Axle suspension and brake system

BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 11

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 12

Leaf Spring

Usually six sets, 10pcs leaf spring , 13mm thickness, 90mm width
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 13

Tire

use famous brand , or according to customer

Recommend Products
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 14
Company Profile
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 15
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 16
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 17
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD. Our company focuses on the development and production of semi-trailer, engaged in the semi-trailer industry has more than 20 years of rich experience, is a real set of trade and production as one of the manufacturers.our experienced staff can discuss your requirements at any time to ensure your full satisfaction. modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 18
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 19
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 20

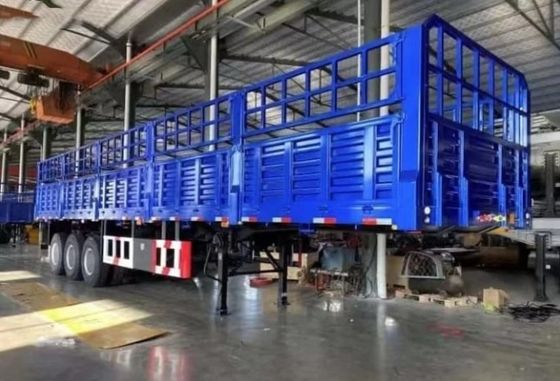

Factory Actual Shoot
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 21
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 22
We are your most reliable cooperation partner.
We are a national high-tech enterprise and have obtained more than 30 invention patents and utilitymodel patents. We haveattracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 23
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 24
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 25
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 26
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 27
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 28
Exhibition
Custom Multiaxis Steel Semi-Trailer for Truck Cargo Fence and Max Payload 40-80 Ton 29
FAQ

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
