Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400X2500X3650mm(customized) |
| Max Payload: | 80ton | Product Name: | Fence Semi Trailer |
| Function: | Farm, Livestock, Vegetable, Wooden Chips Etc | Axle: | 13/16/20 Ton Fuwa/BPW |
| Suspension: | Mechanical Suspension/ Air Suspension | Color: | Customer's Request |
| Landing Gear: | 28t Heavy Duty Landing Gear | King Pin: | JOST 2"(50mm)or3.5"(90mm) |
| Brake System: | Dual Line Braking System | Leaf Spring: | 90(W)mm*13/16 (Thickness)mm*10(Layer) |
| Condition: | New |

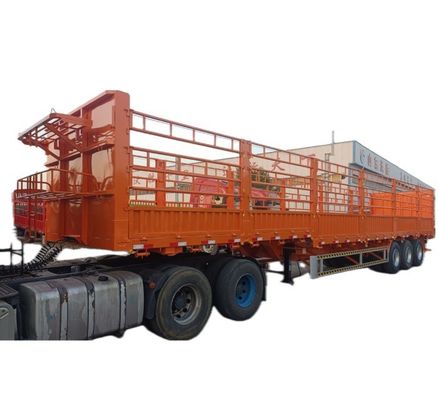

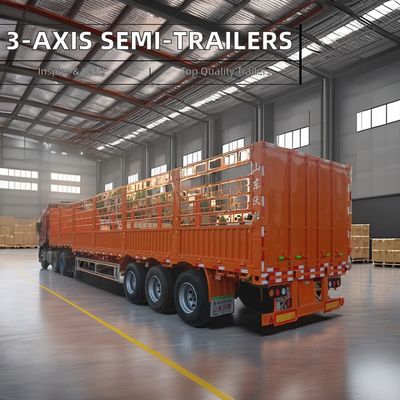

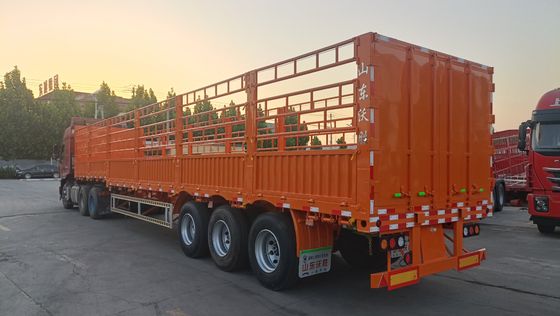

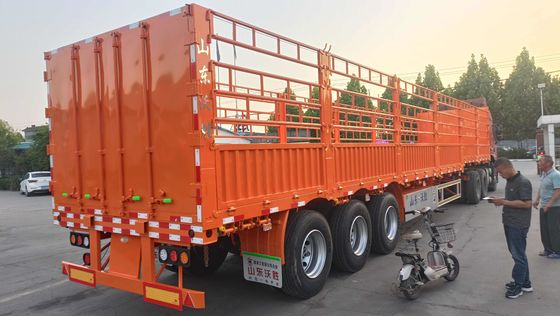

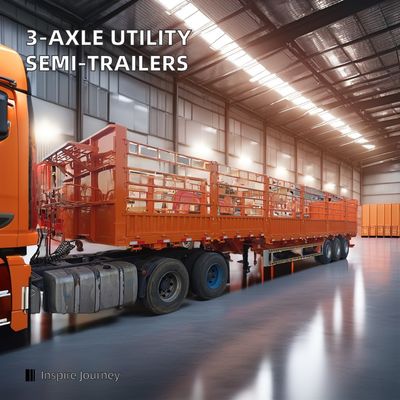

Product Name | Fence Semi Trailer |
Dimension(Lx W x H)（mm） | 12400*2500*3650mm (customizable) |
Inside dimension | 12200mm*2300mm2000mm （customizable) |
Tare weight (kg) | 7500 (depends on final configuration) |
Max Loading Capacity (kg) | 50000 （customizable) |
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) |
Side Beam | 16mm channel steel(material is Q235B steel) |
Bottom plate thickness (mm) | 3mm (customizable) |
Sidewall Thickness (mm) | 1.5mm - 2.5mm Q235 steel (customizable) |
side wall height | 600mm (customizable) |
Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) |
Rim | 9.00-22.5/8.00-20/8.50-20 |
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional |
Suspension | Mechanical Suspension Air Suspension(American or Geman) |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. |
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums |
ABS System | None or installed as your requirement. |
Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) |
Color | As per customer requirement |
Spare Wheel Bracket | 1 piece of Spare Wheel Bracket |
Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar |
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; |
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. |
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
