Product Details:
|
| Use: | Truck Trailer, Animal Fence Transport Trucks Trailers | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel, Steel | Size: | 12400x2500x3650mm(customizable), 12400x2500x3650mm |
| Max Payload: | <50000 Kg | Product Name: | Fence Semi Trailer |
| Axle: | 3/4 Axles | King Pin: | 2"(50#) Or 3/5"(90#) |
| Main Bean: | Q345B/T700 | Rim: | 9.00-22.5/8.00-20/8.5-20 |
| Tire: | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 | Color: | Customization |

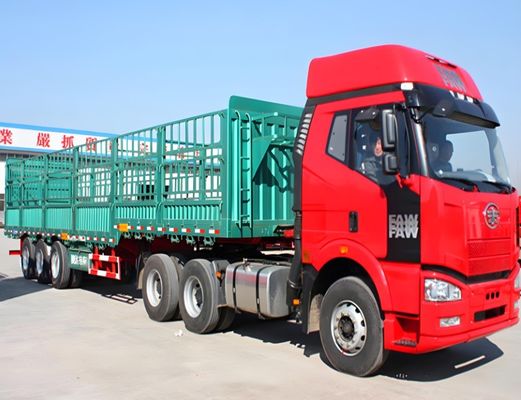

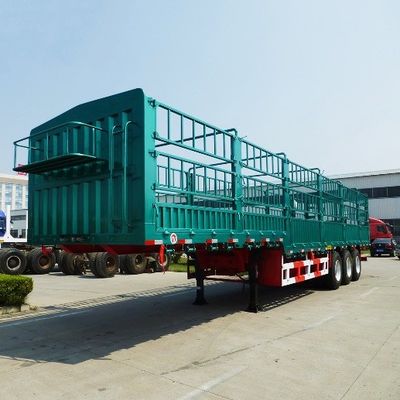

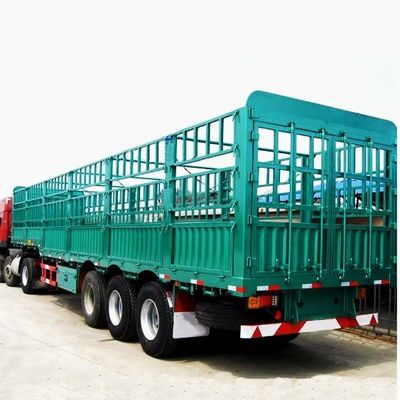

Products Name | Fence Semi Trailer |
Max Payload | 50 tons |

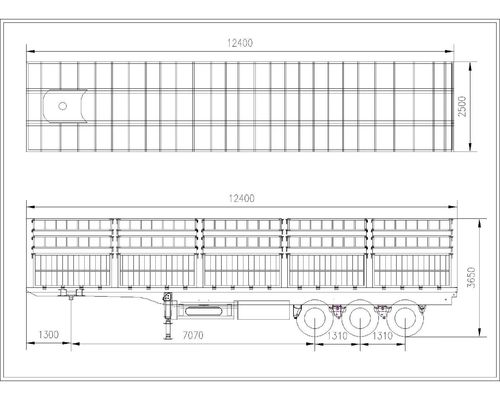

Size | 12400X2500X3650mm |
Tare weight | 7500kg |
Color | According to customer's requirment |
Axle | 3 axles 13ton FUWA |
Suspension | Mechanical Suspension |
Wheel | 6780X1310X1310 |
King Pin | 2"(50mm)or3.5"(90mm) |
Landing gear | SAF two speed 28t Heavy Duty Landing Gear |
Leaf spring | 90(w)mm*13(thickness)mm*10(layer) |
Logo | According to customer's requirment |
Application | Coal/ Livestock/Vegetable/Cargo Loading |
Main beam | Q345B Steel Height: 500mm Upper plate is 14mm Middle plate is 8mm Down plate is 16mm |
Side wall height | 600-1700mm(can be customized) |
Side beam | 16mm channel steel(material is Q235B steel) |
Bottom Platform | 3mm steel plate |
Tire | 12.00R22.5 Trangle or other brand |
Rim | 9.0-22.5 |
Braking system | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; three units of 40L air tanks |
Electrical | LED light , 7 ways ,24V |
Tool box | one set |
Spare wheel carrier | one set |
ABS | 4S/2M |
Painting | 1.Sand blasting processing clean rust. |
2.Coat of anticorrosive primer. | |
3.Coats of finish urethane paint. | |
4.Color as customer choice. |
