3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng

3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng

Large Image :  3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng

Product Details:
Place of Origin: Shandong, China
Brand Name: Yun Cheng
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $14,500.00/sets 1-3 sets
Payment Terms: T/T, L/C
Contact Now

3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng

Description
Use: Truck Trailer Type: Semi-Trailer, Ellipse , Circle
Material: Aluminum / Alloy Size: 11500x2500x3900mm Or Customization
Max Payload: >30000 Kg Color: According To Customer
Axle: 3axles King Pin: 2"(50mm) Or 3.5"(90mm)
Tire: 12R22.5 Apply: Fuel, Oil Etc Liquid Cargo Transporting
Suspension: Air Or Mechanical Brake System: Air Drum Brake
Rim: 9.00-22.5 Condition: New

Products Description

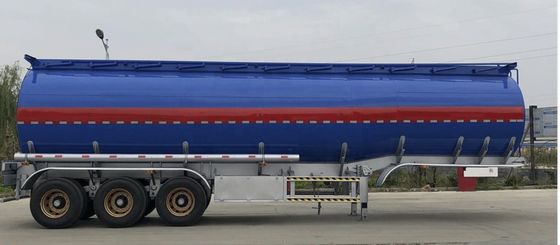

3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 0
Fuel tanker trailer
1.Compared with the common single one pieve oil tank truck, the semi-trailer fuel tank can effectively improve the transportation efficiency. In the case of the same tonnage, the transportation cost is reduced and the fuel consumption is saved

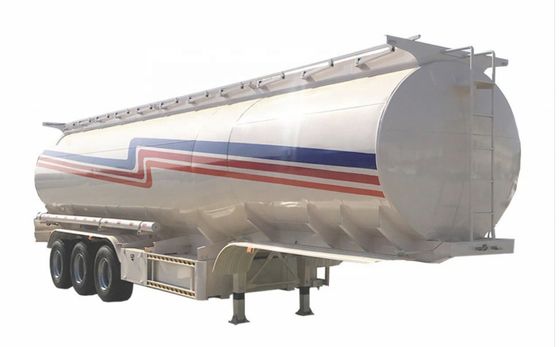

3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 1
2.The fuel tank body is made of 4mm 5.5mm 6mm high-quality plate produced by the iron steel  company according to thenational standard. It can also produce heating and thermal insulation series tanks.
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 2

3.There are multiple anti-wave baffles in the tank. High-pressure gas leak detection is adopted, so that the tank has the characteristics of high strength, stable center of gravity, safe and stable vehicle transportation, etc.
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 3

4.Centrifugal pumps, gear pumps and stainless steel pumps can be selected according to the purpose of the tanker, which have the characteristics of large flow rate and fast suction speed.
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 4

5.Single-counting and double-counting flow meters can be selected for the measurement of oil tankers, and a tax-controlled computer fuel dispenser can also be installed, and a 10-15m automatic retractable return reel can be installed, equipped with arefueling gun. Edible oil products can be measured with a computerized edible oil product meter.
Drawing
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 5
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 6
Specification
Shandong Wosheng  Fuel Tanker Truck Trailer
Material
Carbon Steel/Aluminum/Stainless Steel
Application
Fuel/Liquid Loading
Volume of Tank
20-55 CBM Customized
Axle
2/3/4 Axles
Compartment
1 to 9
Length*Width*Height
13000mm*2500mm*3800mm
European System
Available
Thermal
Available
Manhole
Anti-Explosion
Lifted Axle
Available
Vehicle Examination
X-RAY Room Examination
OEM/ODM
Available
SKD/CKD Cooperation
Available
Tank Shape
D Style/Round Style
Item
Spec.
Tank Thickness
5mm
Dish End Thickness
6mm
Buffle Thickness
4mm
The spare parts below are based on the quantity of compartments.For ExampleOne Compartment.
Manhole
X-RAY Room Examination
Discharge Valve
2*3 inch
Bottom Valve
4 inch Aluminum
Discharge Pipe
3 inch rubber hose,6m/each
Hose Carrier
2 Pieces Carbon Steel/Aluminum
Axles
2/3/4 Axles *13/16 Ton FUWA/BPW/Other
Tire
12R22.5/11.00r20 (8/12/16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other
Rim
9.00*22.5/8.0 (8/12/16 Pieces) Steel/Aluminum
Leaf Spring
90mm*13mm*10/90mm*16mm*10
Suspension System
Mechanical or Air Suspension
Kin Pin
50#(2")/90#(3.5") JOST/Other Brand,Changeable
Landing Gear
28 Tons Two Speed,/JOST/Other Brand
Tool Box
Steel or Aluminum
Extinguisher
2 Sets
Above Information are Standard Spec.If customer want to change Spec.Please Let us know. Want to know more details,please contact
us directly.
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 7
Bottom Valve
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 8
Manhole Cover
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 9
Discharge Valvel
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 10
Discharge Pipe
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 11
Air Control
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 12
Pressure Gauge
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 13
Tanker Body Material Thickness 5mm
End Plate：6mm or customizition
We choose clearly thickness for tanker body and end plate, and the tanker will be much safer than normal type
Axle
Brand :BPW/FUWA Wosheng . Because Fuel tankers are special to transport oil, they need high quality to ensure safety. We usually choose BPW or Fuwa axles(Chinese best axles) . If you want , we can choose other axles.
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 14
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 15
Tires
Featured Tire Double Coin / LingLong/ Michelin/ Triangle/Bridgestone and other famous brand for choice. Better
Performance in wear resistance.
Landing Gear
Landing Gear The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses lowtem perature premium
chassis oil and israted for service from -30'C to 120°C
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 16
Recommend Products
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 17
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 18
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 19
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 20
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 21
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 22
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 23
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 24
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 25
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 26
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 27
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 28
Company Profile
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 29
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD.
Our Company mainly produce fence semi trailer, lowbed semi trailer , low fence semi trailer , rear dump semi trailer, container flat semi trailer, fuel oil semi trailer, etc all kinds of semi trailer, Our company have more than 20 years produce and exporting experience Quality is firstly, Credit is our base for business, Welcome to know us and build business relationship.
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 30
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 31

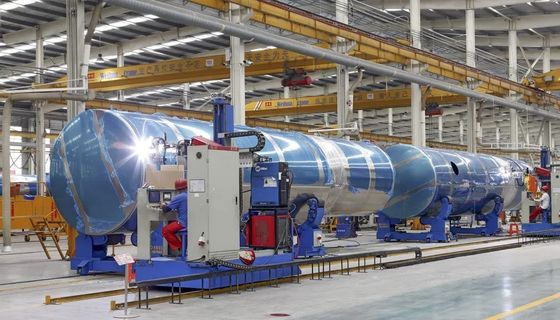

Factory :
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in
appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 32
Packing and Loading
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 33
Container usually us 45 feet
Usually by bulk
Certification
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 34

we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 35
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 36
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
High quality , factory lower price , good service !
3axles Liquid and Oil Tank Semi Trailer Fuel Tanker Trailer with Cheaper from Wosheng 37
FAQ

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
