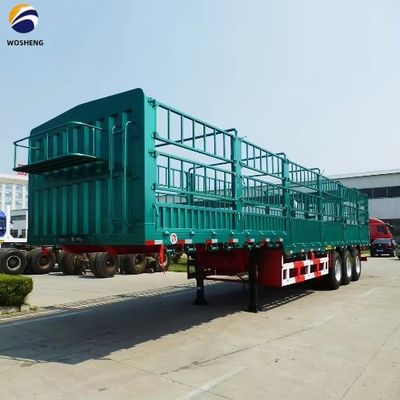

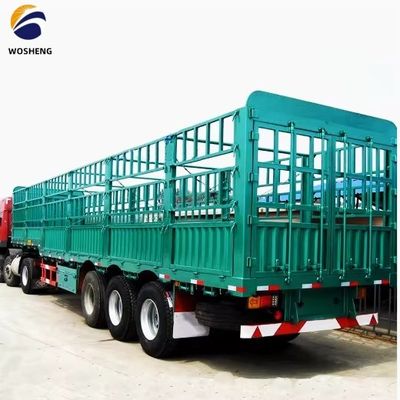

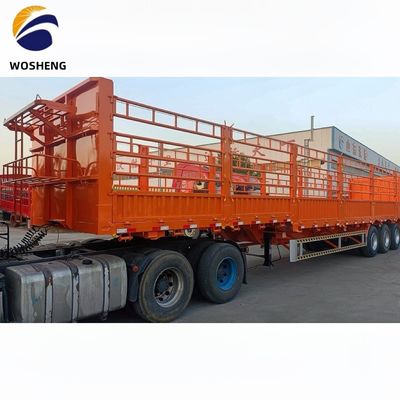

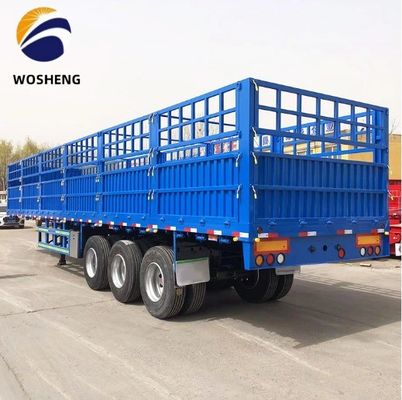

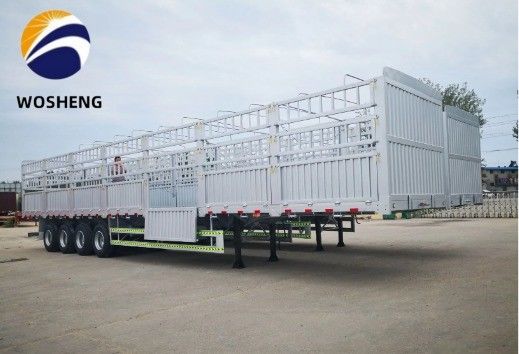

3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t

3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t

Large Image :  3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t

Product Details:
Place of Origin: SHANDONG CHINA, Shandong
Brand Name: WO SHENG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $8,600.00/units 1-4 units
Payment Terms: T/T, L/C
Contact Now

3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t

Description
Use: Truck Trailer Type: Semi-Trailer, Fence Stake Semi Trailer
Material: Steel Size: 12400X2500X3650mm
Max Payload: 40-80 Ton Color: Customer's Request
Leaf Spring: SAF Two Speed 28t Heavy Duty Landing Gear Brake System: Wabco Re 6 Relay Valve T30/30 Spring Brake Chamber 3 X 40L Air Tanks
King Pin: 2"(50mm)or3.5"(90mm) JOST Or Other Brand Axle: 13/16 Ton, 3 Axles FUWA/Wosheng
Suspension: Mechanical Suspension Landing Gear: Heavy Duty Landing Gear 28t
Tire: 12.00R22.5/11.00R20(Brand Optional)

Products picture
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 0

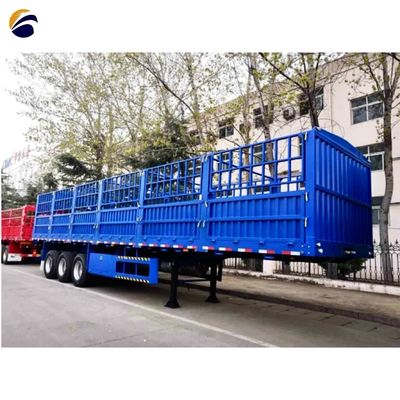

3 Axle Fence Semi Trailer.
WO SHENG Fence semi trailer generally less expensive compared to other specialized trailers, making them a cost-effective option for businesses that require flexibility in cargo transportation.
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 1
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 2
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 3
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 4
Products Description
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 5
Product Name
Fence Semi Trailer
Dimension(Lx W x H)（mm）
12400*2500*3650mm (customizable)
Inside dimension
12200mm*2300mm2000mm （customizable)
Tare weight (kg)
7500 (depends on final configuration)
Max Loading Capacity (kg)
50000 （customizable)
Main Beam
Q345B / T700 Steel Height 500mm
upper plate is 14mm,
down plate is 16mm,
middle plate is 8mm. (customizable)
side Beam
16mm channel steel(material is Q235B steel)
bottom plate thickness
3mm (customizable)
Sidewall Thickness (mm)
1.5mm - 2.5mm Q235 steel (customizable)
side wall height
600mm (customizable)
Axles
13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc
Tire
12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional)
Rim
9.00-22.5/8.00-20/8.50-20
King Pin
2"(50mm)or3.5"(90mm) JOST or other brand optional
Suspension
Mechanical Suspension Air Suspension(American or Geman)
Leaf Spring
90(w)mm*13/16(thickness)mm*10(layer)
Landing Gear
28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc.
Brake System
Dual line brake system, Air chamber T30/30,
3 X 40L gas storage drums
ABS System
None or installed as your requirement.
Painting
Sand blasting before painting;one coats of primer, anti
corrosion; two coat of finish painting
Packing
Wax painting treatment to protect the vehicles from sea water,
and the chassis greased to avoid rusting during shipping.
Delivery
From China port, and carry by container ship, ro-ro ship or bulk
ship, the freight cost depends on the volume.
Products detail
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 6

Suspention - Anti-Tire Abrasion

avoids tires to the maximum extent worn out
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 7

bottom

stronger sturction
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 8

Axle suspension and brake system

BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 9

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 10

Leaf Spring

Usually six sets, 10pcs leaf spring , 13mm thickness, 90mm width
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 11

Tire

use famous brand , or according to customer

Recommend Products
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 12
Company Profile
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 13
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 14
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 15
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD. Our company focuses on the development and production of semi-trailer, engaged in the semi-trailer industry has more than 20 years of rich experience, is a real set of trade and production as one of the manufacturers.our experienced staff can discuss your requirements at any time to ensure your full satisfaction. modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 16
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 17
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 18
Factory Actual Shoot
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 19
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 20
We are your most reliable cooperation partner.
We are a national high-tech enterprise and have obtained more than 30 invention patents and utilitymodel patents. We haveattracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 21
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 22
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 23
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 24
Packing and Shipping
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 25
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 26
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 27
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 28
Exhibition
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 29
3 Axle 40-80 Ton Cargo Transporting Fence Semi Trailer with Heavy Duty Landing Gear 28t 30

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
