Wosheng 3 Axles 20-50T Livestock High Fence Semi Trailer for Vegetable Transportation

Large Image : Wosheng 3 Axles 20-50T Livestock High Fence Semi Trailer for Vegetable Transportation

Product Details:

Place of Origin:	SHANDONG
Brand Name:	YUNSHENG LIVESTOCK FENCE SEMI TRAILER

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$8,100.00/units 1-1 units
Payment Terms:	T/T, L/C

Contact Now

Wosheng 3 Axles 20-50T Livestock High Fence Semi Trailer for Vegetable Transportation

Description

Use:	Truck Trailer	Type:	Semi-Trailer
Material:	Steel	Size:	13000X2550X3650mm(customized)
Max Payload:	50tons	Product Name:	3 AXLE LIVESTOCK FENCE SEMI TRAILER
Usage:	Truck Trailer	Color:	Customer's Request
Landing Gear:	SAF Two Speed 28t Heavy Duty Landing Gear	Suspension:	Mechanical Suspension
King Pin:	2"(50mm)or3.5"(90mm) JOST Or Other Brand	Axle:	13/16 Ton, 3 Axles FUWA
Tire:	12.00R22.5(Brand Optional)	Brake System:	Wabco Re 6 Relay Valve T30/30 Spring Brake Chamber 3 X 40L Air Tanks
Function:	Transport Livestock, Vegetable,grain

Shandong Wosheng Semi Trailers

Shandong Wosheng is a professional semi-trailer manufacturer with more than ten years of production experience. With a professional R & D team, we can do special design and production according to the needs of customers, like flatbed, lowbed, fence, sidewall, side curtain, container skeleton, ,fuel tank,dump semi trailer etc. Contact us whenever you need !

Products Description

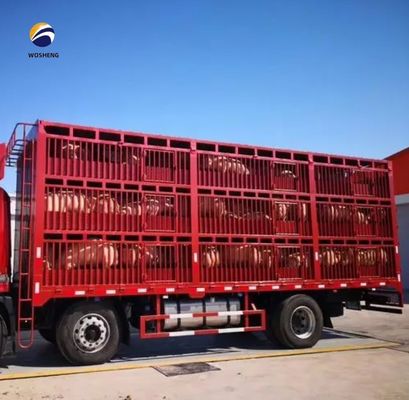

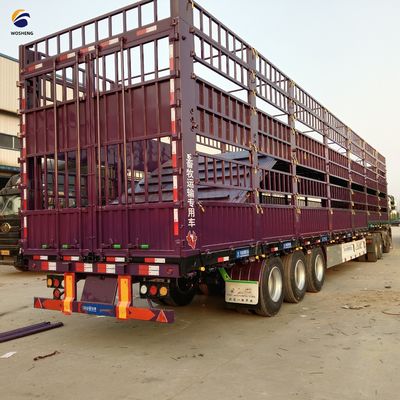

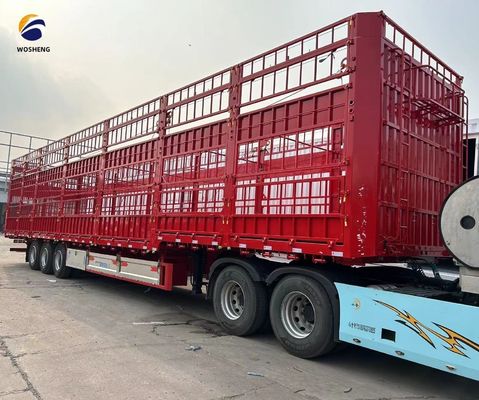

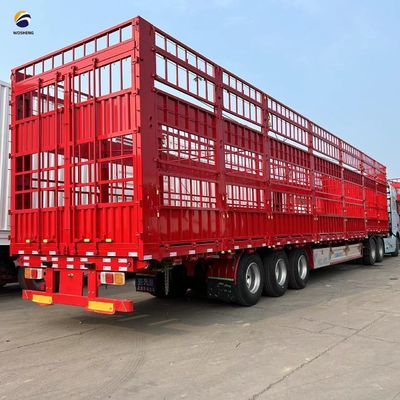

Wosheng Livestock fence semi trailer usually has a tall body and specially designed railings, ‌ to provide adequate space and protection for the livestock, ‌ to prevent them from being injured or subjected to unnecessary stress during transport. ‌

Our livestock high hurdle semi-trailer uses a strong structural design and high-quality materials ‌ has a strong load carrying capacity and pressure resistance. ‌ This design enables the vehicle to remain stable in harsh road conditions and environments, ‌ensures the safe transport of livestock.

They are suitable for transporting large quantities of goods over long distances ‌ especially those which require special protection or comfort ‌ such as fragile, ‌ valuable or in need of special protection. ‌ The use of such vehicles not only improves the transportation efficiency, ‌ but also reduces the cost, ‌ plays a role in promoting the form of logistics organization.

Wosheng Livestock Fence Semi Trailer
Product Name	Livestock Fence Semi Trailer
Dimension(Lx W x H)（mm）	175002800430mm (customizable)
Floors	1/2/3/4 (customizable)
Tare weight (kg)	7500 (depends on final configuration)
Max Loading Capacity (kg)	50000 （customizable)
Main Beam	Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable)
Side Beam	16mm channel steel(material is Q235B steel)
Bottom plate thickness (mm)	3mm (customizable)
Above Decks	Electric lifting

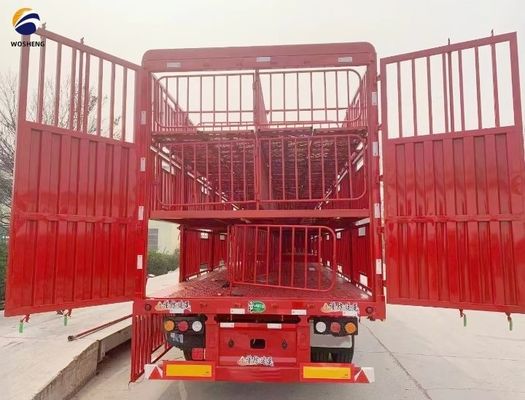

Back door	Common manual open/close ,Electric lifting or Hydraulic lifting
Axles	13Ton. 3Axles Brand optional
Tire	12.00R22.5 (optional)Brand Tringle, double coin etc
Rim	9.00-22.5 (optional)
King Pin	2"(50mm)or3.5"(90mm) JOST
Suspension	AIR/Mechanical Suspension
Leaf Spring	90(w)mm13(thickness)mm10(layer)
Landing Gear	28t Heavy Duty Landing Gear. Brand optional FUWA
Brake System	Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums
ABS System	None or installed as your requirement.
Electrical system	1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.)
Color	As per customer requirement
Spare Wheel Bracket	1 piece of Spare Wheel Bracket
Tool box	1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
Painting	Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting;
Packing	Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.
Delivery	From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
Remarks	Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.

Details Images

Landing Gear

JOST or Wosheng landing gear can be optioned made in aluminum or steel;designed to work under both high and low temperature in the
range of 30℃ to 120℃.

Brands Tire

Use well-known brand tires such as Double Coin / LingLong/ Michelin/ Triangle/Bridgestone and other famous brand for choice. More wear resistant safety.

Anti-Tire abrasion Suspension

Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.

Brake System

T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Tool Box

Located on the side of the trailer without taking up too much space, it can store necessary maintenance tools, straps and safety equipment. made of durable materials and securely locks to keep the contents safe.

Axle BPW/FUWA/LEAO Axle optional.

Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000 kilometers.
