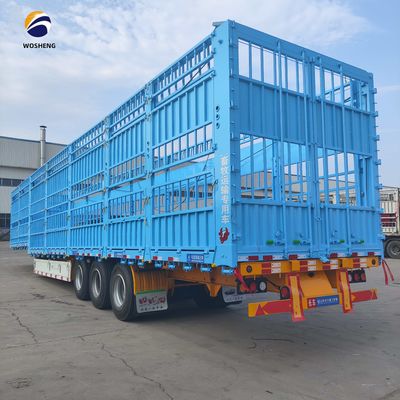

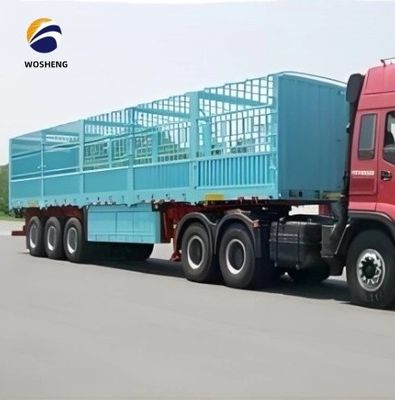

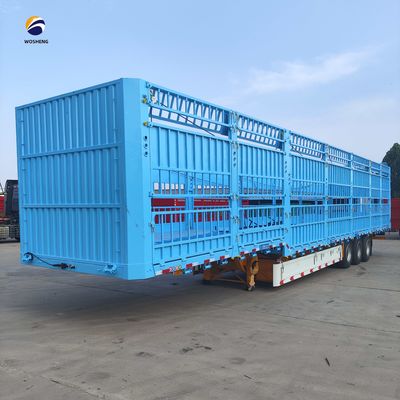

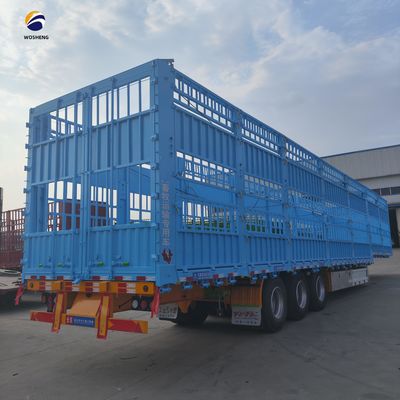

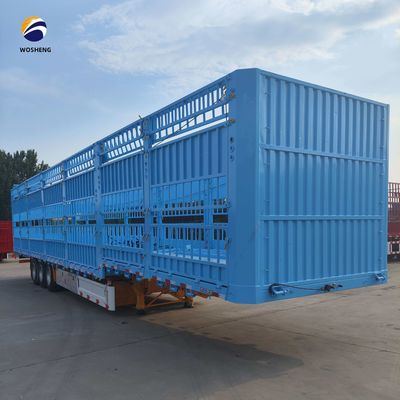

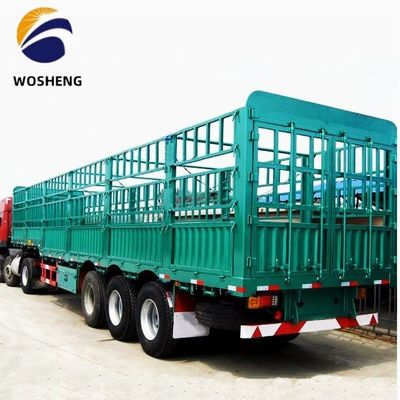

Customized 3 Axles 20-50T High Fence Semi Trailer for Livestock Cattle Cow from Wosheng

Large Image : Customized 3 Axles 20-50T High Fence Semi Trailer for Livestock Cattle Cow from Wosheng

Product Details:

Place of Origin:	SHANDONG
Brand Name:	YUNSHENG LIVESTOCK FENCE SEMI TRAILER

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$8,100.00/units 1-1 units
Payment Terms:	T/T, L/C

Contact Now

Customized 3 Axles 20-50T High Fence Semi Trailer for Livestock Cattle Cow from Wosheng

Description

Use:	Truck Trailer	Type:	Semi-Trailer
Material:	Steel	Size:	13000X2550X3650mm(customized)
Max Payload:	50tons	Product Name:	3 AXLE LIVESTOCK FENCE SEMI TRAILER
Usage:	Truck Trailer	Color:	Customer's Request
Landing Gear:	SAF Two Speed 28t Heavy Duty Landing Gear	Suspension:	Mechanical Suspension
King Pin:	2"(50mm)or3.5"(90mm) JOST Or Other Brand	Axle:	13/16 Ton, 3 Axles FUWA
Tire:	12.00R22.5(Brand Optional)	Brake System:	Wabco Re 6 Relay Valve T30/30 Spring Brake Chamber 3 X 40L Air Tanks
Function:	Transport Livestock, Vegetable,grain

Shandong Wosheng Semi Trailers

Shandong Wosheng is a professional semi-trailer manufacturer with more than ten years of production experience. With a professional R & D team, we can do special design and production according to the needs of customers, like flatbed, lowbed, fence, sidewall, side curtain, container skeleton, ,fuel tank,dump semi trailer etc. Contact us whenever you need !

Products Description

Wosheng Livestock fence semi trailer usually has a tall body and specially designed railings, ‌ to provide adequate space and protection for the livestock, ‌ to prevent them from being injured or subjected to unnecessary stress during transport. ‌

Our livestock high hurdle semi-trailer uses a strong structural design and high-quality materials ‌ has a strong load carrying capacity and pressure resistance. ‌ This design enables the vehicle to remain stable in harsh road conditions and environments, ‌ensures the safe transport of livestock.

They are suitable for transporting large quantities of goods over long distances ‌ especially those which require special protection or comfort ‌ such as fragile, ‌ valuable or in need of special protection. ‌ The use of such vehicles not only improves the transportation efficiency, ‌ but also reduces the cost, ‌ plays a role in promoting the form of logistics organization.

Wosheng Livestock Fence Semi Trailer
Product Name	Livestock Fence Semi Trailer
Dimension(Lx W x H)（mm）	175002800430mm (customizable)
Floors	1/2/3/4 (customizable)
Tare weight (kg)	7500 (depends on final configuration)
Max Loading Capacity (kg)	50000 （customizable)
Main Beam	Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable)
Side Beam	16mm channel steel(material is Q235B steel)
Bottom plate thickness (mm)	3mm (customizable)
Above Decks	Electric lifting
Back door	Common manual open/close ,Electric lifting or Hydraulic lifting
Axles	13Ton. 3Axles Brand optional
Tire	12.00R22.5 (optional)Brand Tringle, double coin etc
Rim	9.00-22.5 (optional)
King Pin	2"(50mm)or3.5"(90mm) JOST
Suspension	AIR/Mechanical Suspension
Leaf Spring	90(w)mm13(thickness)mm10(layer)
Landing Gear	28t Heavy Duty Landing Gear. Brand optional FUWA
Brake System	Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums
ABS System	None or installed as your requirement.
Electrical system	1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.)
Color	As per customer requirement
Spare Wheel Bracket	1 piece of Spare Wheel Bracket
Tool box	1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
Painting	Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting;
Packing	Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.
Delivery	From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
Remarks	Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.

Details Images

Landing Gear

JOST or Wosheng landing gear can be optioned made in aluminum or steel;designed to work under both high and low temperature in the
range of 30℃ to 120℃.

Brands Tire

Use well-known brand tires such as Double Coin / LingLong/ Michelin/ Triangle/Bridgestone and other famous brand for choice. More wear resistant safety.

Anti-Tire abrasion Suspension

Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.

Brake System

T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Tool Box

Located on the side of the trailer without taking up too much space, it can store necessary maintenance tools, straps and safety equipment. made of durable materials and securely locks to keep the contents safe.

Axle BPW/FUWA/LEAO Axle optional.

Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000 kilometers.

Packing and Shipping

Company Profile

About us

Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.

Factory

Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.

Manufacturing Technique

Our Advantages

We are your most reliable cooperation partner

We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.

Certification

FAQ

Q1. Are you a factory or trade company ?

We are a comprehensive industrial and trade enterprise integrating product design,scientific research and

development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification?

Sure of course. As we all know that the traffic regulations are different in different areas, our professional
engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent?

Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process,
finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide?

Accepted Delivery Terms: EXW, FOB, CFR, CIF

Q6. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools.
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East,
Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can
ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international
courier service, such as DHL, TNT, UPS, or Fedex.
