Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel, Aluminum Alloy | Size: | 13000*2550*3780mm |
| Max Payload: | 60 Ton | Function: | Tank Semi Trailer |
| Color: | Customer's Request | Landing Gear: | Standard 28 Ton |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST | Axle: | 13/16 Ton, 3 Axles FUWA/Wosheng |
| Suspension: | Mechanical Suspension | Tire: | 12.00R22.5/11.00R20(Brand Optional) |
| Usage: | Fuel Transport | Tools Box: | 1 Standard |

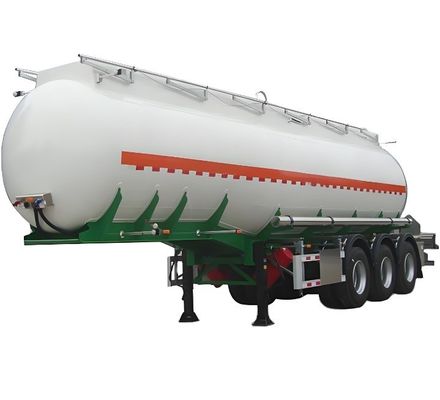

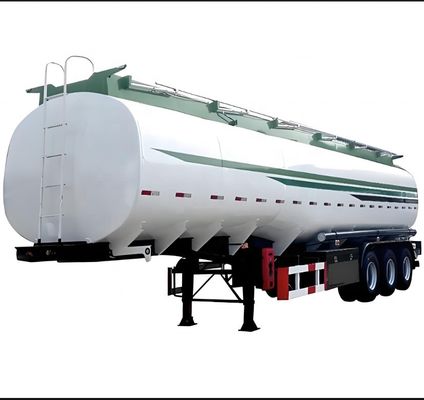

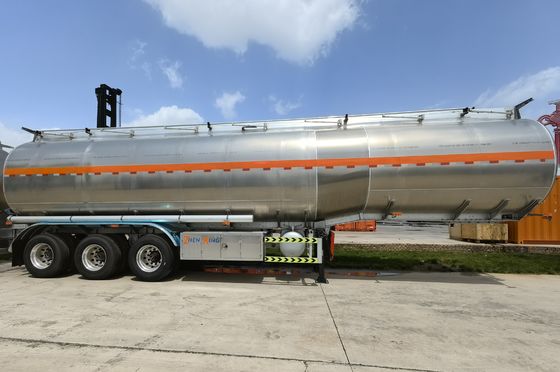

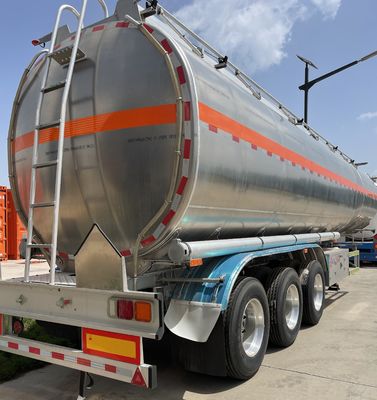

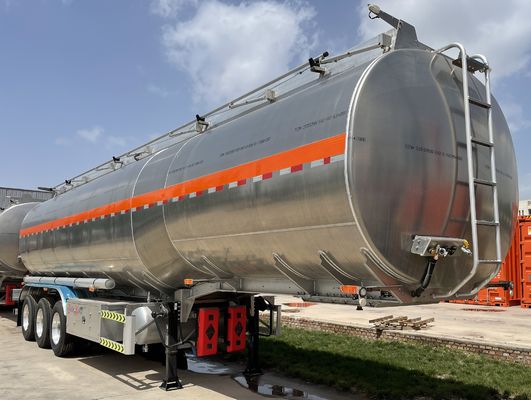

Product Name | Oil Tank Semi Trailer |
Dimension(Lx W x H)（mm） | 11500*2500*3900mm (customizable) |
Tare weight (kg) | 9800 (depends on final configuration) |
Max Loading Capacity (kg) | 60000 （customizable) |
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) |
Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) |
Rim | 9.00-22.5/8.00-20/8.50-20 |
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional |
Suspension | Mechanical Suspension Air Suspension(American or Geman) |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. |
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums |
ABS System | None or installed as your requirement. |
Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) |
Color | As per customer requirement |
Spare Wheel Bracket | 1 piece of Spare Wheel Bracket |
Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar |
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; |
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. |
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
Remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. |
