Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer, Fence Stake Semi Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400X2500X3650mm |
| Max Payload: | 40-80 Ton | Color: | Customer's Request |
| Leaf Spring: | SAF Two Speed 28t Heavy Duty Landing Gear | Brake System: | Wabco Re 6 Relay Valve T30/30 Spring Brake Chamber 3 X 40L Air Tanks |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand | Axle: | 13/16 Ton, 3 Axles FUWA/Wosheng |
| Suspension: | Mechanical Suspension | Landing Gear: | Heavy Duty Landing Gear 28t |
| Tire: | 12.00R22.5/11.00R20(Brand Optional) |

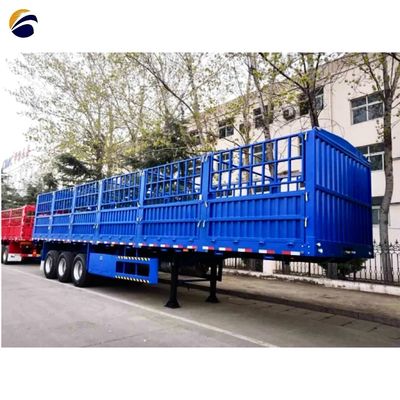

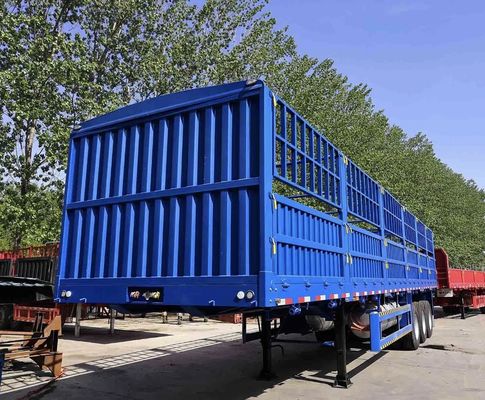

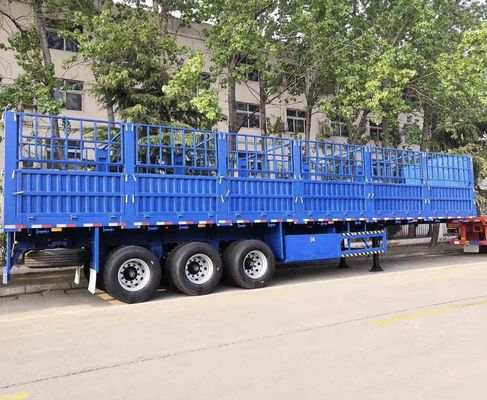

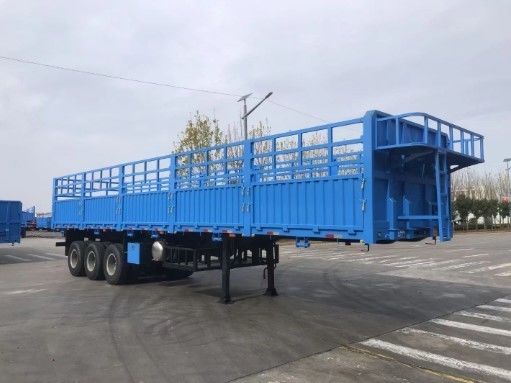

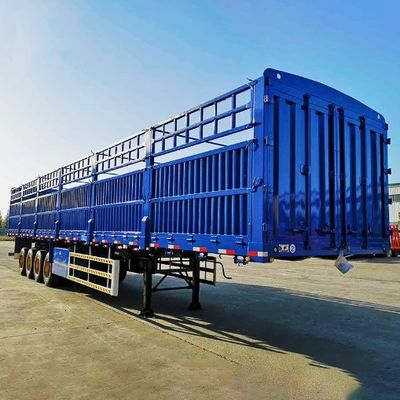

Product Name | Fence Semi Trailer | |||
Dimension(Lx W x H)（mm） | 12400*2500*3650mm (customizable) | |||
Inside dimension | 12200mm*2300mm2000mm （customizable) | |||
Tare weight (kg) | 7500 (depends on final configuration) | |||
Max Loading Capacity (kg) | 50000 （customizable) | |||
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) | |||
side Beam | 16mm channel steel(material is Q235B steel) | |||
bottom plate thickness | 3mm (customizable) | |||
Sidewall Thickness (mm) | 1.5mm - 2.5mm Q235 steel (customizable) | |||
side wall height | 600mm (customizable) | |||
Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc | |||
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) | |||
Rim | 9.00-22.5/8.00-20/8.50-20 | |||
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional | |||
Suspension | Mechanical Suspension Air Suspension(American or Geman) | |||
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) | |||
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. | |||
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums | |||
ABS System | None or installed as your requirement. | |||
Painting | Sand blasting before painting;one coats of primer, anti corrosion; two coat of finish painting | |||
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. | |||
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
