Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock

Certification
China Qingdao Wosheng Import and Export Co.,Ltd certification
China Qingdao Wosheng Import and Export Co.,Ltd certification
I'm Online Chat Now

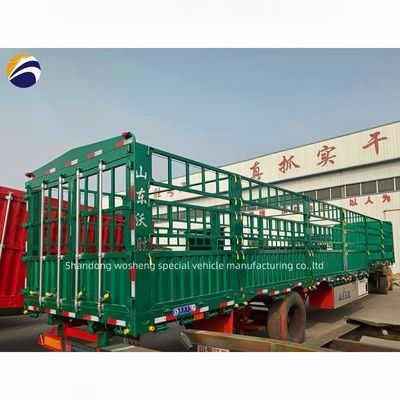

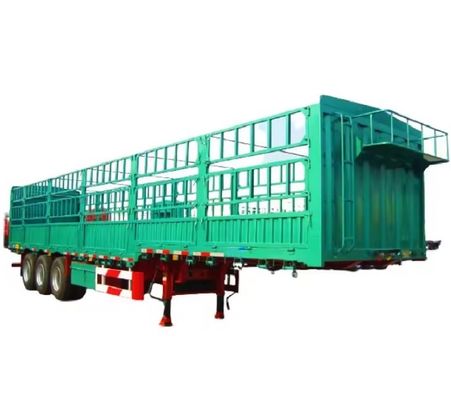

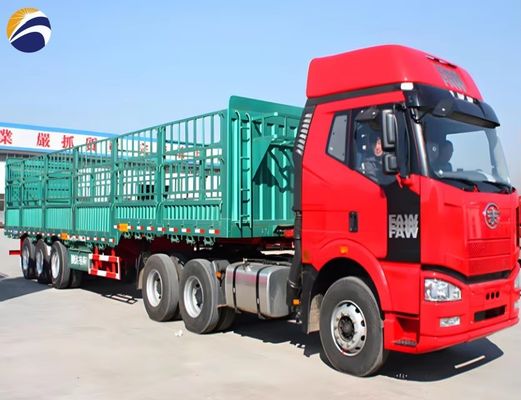

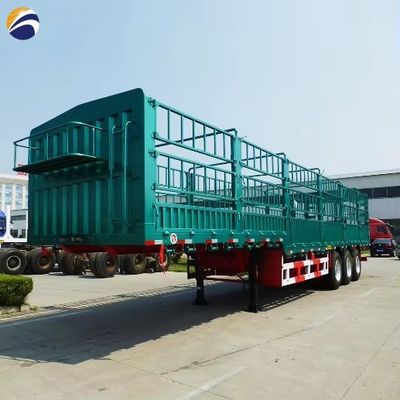

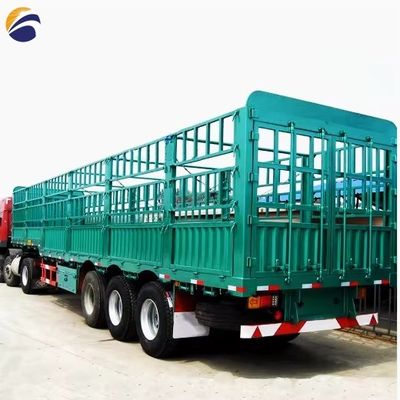

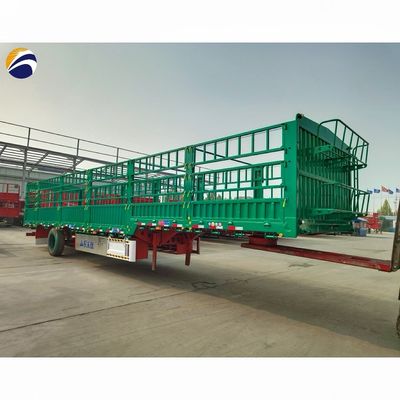

Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock

Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock

Large Image :  Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock

Product Details:
Place of Origin: SHANDONG CHINA, Shandong
Brand Name: WO SHENG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $8,600.00/units 1-4 units
Payment Terms: T/T, L/C

Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock

Description
Use: Truck Trailer Type: Semi-Trailer, Fence Stake Semi Trailer
Material: Steel Size: 12400X2500X3650mm
Max Payload: 40-80 Ton Color: Customer's Request
Leaf Spring: SAF Two Speed 28t Heavy Duty Landing Gear Brake System: Wabco Re 6 Relay Valve T30/30 Spring Brake Chamber 3 X 40L Air Tanks
King Pin: 2"(50mm)or3.5"(90mm) JOST Or Other Brand Axle: 13/16 Ton, 3 Axles FUWA/Wosheng
Suspension: Mechanical Suspension Landing Gear: Heavy Duty Landing Gear 28t
Tire: 12.00R22.5/11.00R20(Brand Optional)

Products Description
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 0
3 Axle Fence Semi Trailer
WO SHENG Fence semi trailer generally less expensive compared to other specialized trailers, making them a cost-effective option for businesses that require flexibility in cargo transportation.
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 1
Specification
Products Name
Fence Steel Stake Semi Trailer
Max Payload
42.5 ton
Size
12400X2500X3650mm
Tare weight
7500kg
Color
According to customer's requirment
Axle
3 axles 13ton FUWA
Suspension
Mechanical Suspension
Wheel
6780X1310X1310
King Pin
2"(50mm)or3.5"(90mm)
Landing gear
SAF two speed 28t Heavy Duty Landing Gear
Leaf spring
90(w)mm*13(thickness)mm*10(layer)
Logo
According to customer's requirment
Application
Coal/ Livestock/Vegetable/Cargo Loading
Main beam
Height: 500mm
upper plate is 14mm
middle plate is 8mm
down plate is 16mm
Q345B Steel
Side wall height
600-1700mm(can be customized)
Side beam
16mm channel steel(material is Q235B steel)
Bottom Platform
3mm steel plate
Tire
12.00R22.5 Trangle or other brand
Rim
9.0-22.5
Braking system
Wabco re 6 relay valve; T30/30+T30 spring brake chamber; three units of 40L air tanks
Electrical
LED light , 7 ways ,24V
Tool box
one set
Spare wheel carrier
one set
ABS
4S/2M
Painting
1.Sand blasting processing clean rust.
2.Coat of anticorrosive primer.
3.Coats of finish urethane paint.
4.Color as customer choice.
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 2

Axle

BPW/FUWA/LEAO Axle optional.Integrated advanced low-alloy axle beam,Whole axle beam no welding process.strong carrying capacity and high bending strength.Axle maintenance-free could reach 3 year/400,000 kilometers.
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 3

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 4

Suspension and break system

Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose.
Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 5

Tire

Double Coin / Ling Long / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.
Packing and Loading
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 6
Company Profile
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 7

About us

Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 8
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 9
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 10
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 11
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 12
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 13
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 14
Factory
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 15
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 16
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 17
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 18
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 19
Certifications
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 20
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 21
Exhibition
Semi-Trailer 3/4 Axle Load Capacity 30-80 Tons for Transporting Cargo and Livestock 22
FAQ
1.Are you a factory or a trading company? We are factory,based in Shandong,China.There are total about 150-200 people in our factory.
2. What services can we provide? Accepted Delivery Terms: EXW,FOB, CFR, CIF Accepted Payment Currency: EUR,USD, CNY Accepted Payment Type:T/T,Western Union,Cash
3.Why should you choose us?
We are trailer manufacturer with more than 30 years' experience.we have professional technician and sales, good after-sale service and prompt response sales team.
