design 15000L 60000L 2/3/4 axles fuel oil Gasoline/kerosene/diesel tank semi trailer

Large Image : design 15000L 60000L 2/3/4 axles fuel oil Gasoline/kerosene/diesel tank semi trailer

Product Details:

Place of Origin:	SHANDONG CHINA
Brand Name:	WOSHENG FUEL TANK SEMI TRAILER

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$6,500.00/units 1-4 units
Payment Terms:	T/T, L/C

Contact Now

design 15000L 60000L 2/3/4 axles fuel oil Gasoline/kerosene/diesel tank semi trailer

Description

Use:	Truck Trailer	Type:	Semi-Trailer
Material:	Steel, Stainless Steel/carbon Steel/Aluminum Alloy	Size:	1300025503780mm (customized)
Max Payload:	60 Ton	Product Name:	Wosheng Fuel Tank Semi Trailer
Function:	Tank Semi Trailer	Color:	Customer's Request
Landing Gear:	Standard 28 Ton	King Pin:	2"(50mm)or3.5"(90mm) JOST
Axle:	13/16 Ton, 2/3/4 Axles FUWA/Wosheng	Suspension:	Air/Mechanical Suspension
Tire:	12.00R22.5/11.00R20(Brand Optional)	Leaf Spring:	90(W)mm13/16 (Thickness)mm10(Layer)

Shandong Wosheng Semi Trailers

Shandong Wosheng is a professional semi-trailer manufacturer with more than ten years of production experience. With a professional R & D team, we can do special design and production according to the needs of customers, like flatbed, lowbed, fence, sidewall, side curtain, container skeleton, ,fuel tank,dump semi trailer etc. Contact us whenever you need !

Products Description

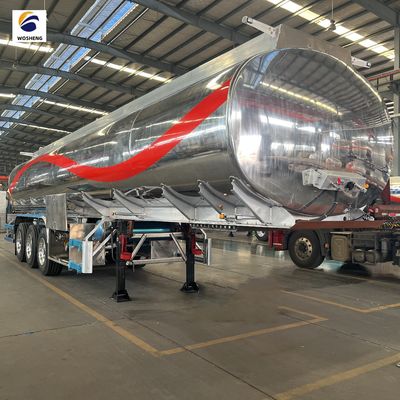

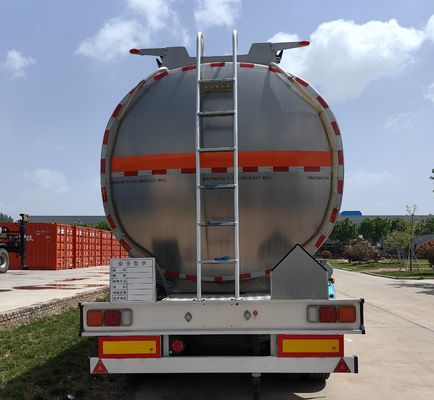

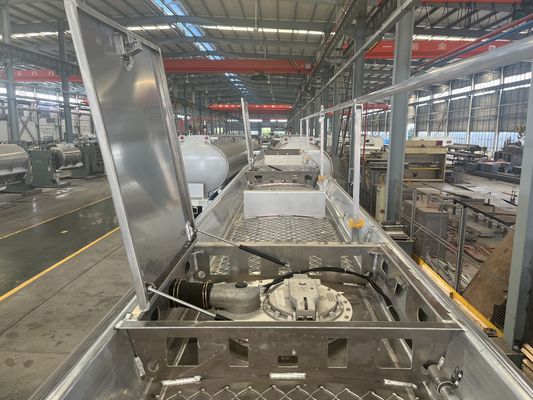

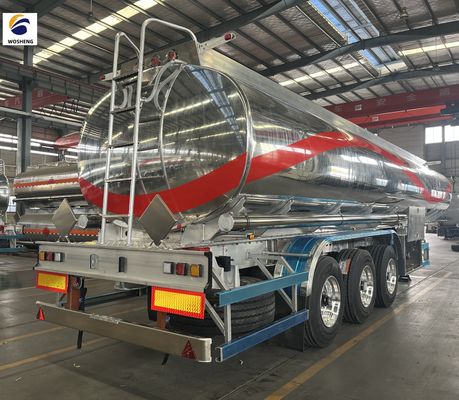

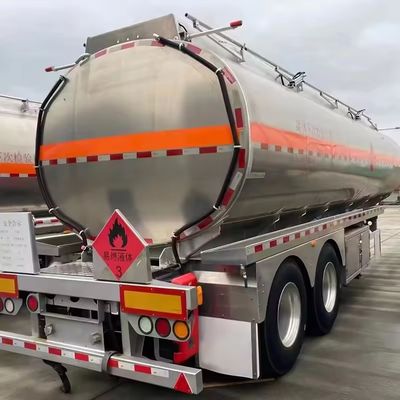

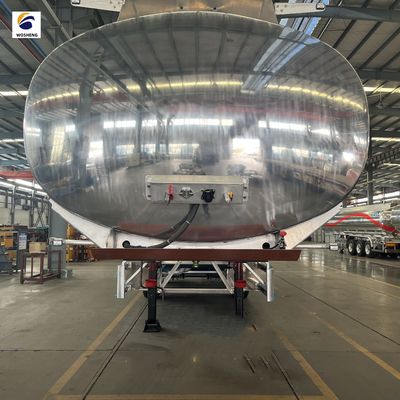

Wosheng Fuel semi trailer 's main features include high transportation efficiency, ‌ low transportation cost, ‌ energy saving and lightweight design, and a wide range of applications.

Wosheng Fuel Tanker Semi Trailer
Material	Carbon Steel/Aluminum/Stainless Steel
Application	Fuel/Liquid Loading
Volume of Tank	20-60CBM Customized
Axle	2/3/4 Axles
Compartment	1 to 9
LengthWidthHeight	13000mm2500mm3800mm(customized)
European System	Available
Thermal	Available
Manhole	Anti-Explosion
Lifted Axle	Available
Vehicle Examination	X-RAY Room Examination
OEM/ODM	Available
SKD/CKD Cooperation	Available
Tank Shape	D Style/Round Style
Item	Spec.
Tank Thickness	5mm
Dish End Thickness	6mm
Buffle Thickness	4mm
The spare parts below are based on the quantity of compartments.For ExampleOne Compartment.
Manhole	X-RAY Room Examination
Discharge Valve	2*3 inch
Bottom Valve	4 inch Aluminum
Discharge Pipe	3 inch rubber hose,6m/each
Hose Carrier	2 Pieces Carbon Steel/Aluminum
Axles	2/3/4 Axles *13/16 Ton FUWA/BPW/Other
Tire	12R22.5/11.00r20 (8/12/16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other
Rim	9.00*22.5/8.0 (8/12/16 Pieces) Steel/Aluminum
Leaf Spring	90mm13mm10/90mm16mm10
Suspension System	Mechanical or Air Suspension
Kin Pin	50#(2")/90#(3.5") JOST/Other Brand,Changeable
Landing Gear	28 Tons Two Speed,/JOST/Other Brand
Tool Box	Steel or Aluminum
Extinguisher	2 Sets

Details Images

Landing Gear

JOST or Wosheng landing gear can be optioned made in aluminum or steel;designed to work under both high and low temperature in the
range of 30℃ to 120℃.

Brands Tire

Use well-known brand tires such as Double Coin / LingLong/ Michelin/ Triangle/Bridgestone and other famous brand for choice. More wear resistant safety.

Anti-Tire abrasion Suspension

Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.

Brake System

T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Tool Box

Located on the side of the trailer without taking up too much space, it can store necessary maintenance tools, straps and safety equipment. made of durable materials and securely locks to keep the contents safe.

Axle BPW/FUWA/LEAO Axle optional.

Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000 kilometers.
