Product Details:
|
| Condition: | Used | Steering: | Left |
|---|---|---|---|
| Horsepower: | 351 - 450hp | Emission Standard: | EURO 5 |
| Segement: | Heavy Truck | Market Segement: | Urban Construction Muck Transportation |
| Forward Shift Number: | 5 | Maximum Torque(Nm): | ≥2500Nm |
| Cargo Tank Dimension: | 5400x2300x1400 | Cargo Tank Length: | 5.3-6.2M |
| Gross Vehicle Weight: | 10-15T | Drive Wheel: | 6x4 |
| Passengers: | 3 | Rear Camera: | 360° |
| ABS(Antilock Braking System): | Yes | ESC(Electronic Stability Control System): | Yes |
| Touch Screen: | None | After-sales Service Provided: | Onsite Installation, Video Technical Support, Overseas Call Centers, Return And Replacement, Online Support |

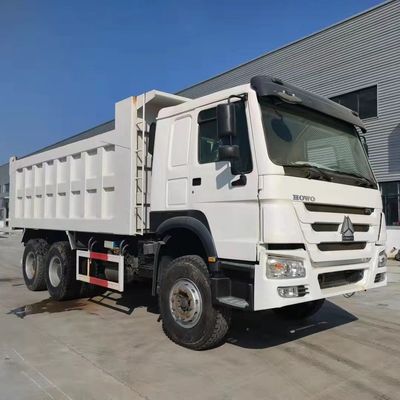

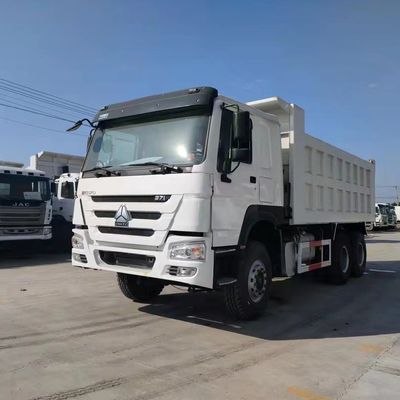

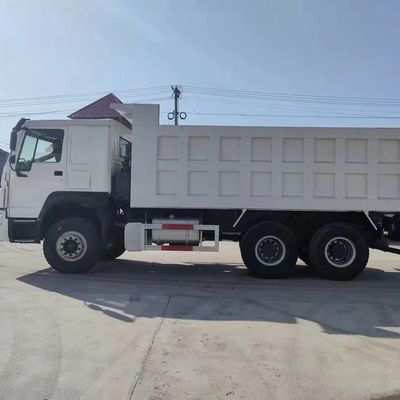

| Product Name: | Dump Truck |
Detail Specification | ||
Items | Dump truck | |
Dimension (mm) | 8685x2496x3850 | |
Overhang(front/rear) (mm) | 1500x725 | |
Wheel Base (mm) | 3625+1350 | |
Engine | ||
Modle | WP 12.400E201 | |
Emission | EURO 2/3/4/5/6 | |
Displacement（L) | 11.896 | |
Power | 400hp/295kw.2000r/min | |
Type | Water-cooled, four strokes, 6 cylinders in line, turbocharged directly injection | |
Fuel Consumption(l/100km) | 25L/100km | |
Axles | ||
Front Axle Model | VGD95 axle, Capacity: 9000kg | |
Rear Axle | HC16 axle. Capacity:2X 16000KG | |
Ratio of rear axle | 4.8 | |
Electrical System | ||
Battery | 2x12V/165Ah | |
Alternator | 28V-1500kw | |
Starter | 7.5Kw/24V | |
Brake System | ||
Service brake | Dual circuit compressed air brake | |
Parking brake | Spring energy, compressed air operating on rear wheels | |
Auxiliary brake | Engine exhaust brake | |
Steering System | ||
Modle | ZF8118 | |
Type | Hydraulic steering with power assistance | |
Singer sleeper with air condition , all-steel forward control, 55 degree hydraulic tiltable to the front, 2-arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial,hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereoradio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4 point support fully floating suspension and shock absorbers. | ||
