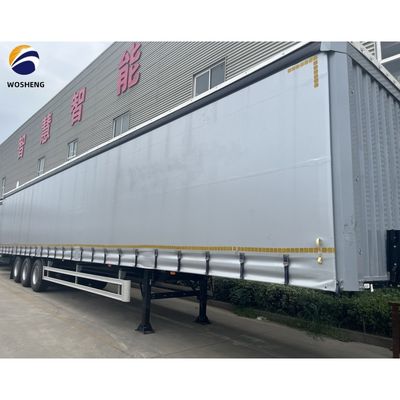

Q345B T700 10ton 13ton 16tons 3 Axle Side Curtain Truck Semi Trailer for Transportation

Large Image : Q345B T700 10ton 13ton 16tons 3 Axle Side Curtain Truck Semi Trailer for Transportation

Product Details:

Place of Origin:	Shandong, China
Brand Name:	WS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$15,500.00/sets 1-4 sets
Payment Terms:	T/T, L/C

Contact Now

Q345B T700 10ton 13ton 16tons 3 Axle Side Curtain Truck Semi Trailer for Transportation

Description

Use:	Truck Trailer	Type:	Semi-Trailer, Side Curtain Semi Trailer
Material:	Steel, Q345B T700	Size:	13900x2500x4000mm
Max Payload:	>40000 Kg	Axles:	2/3/4 Axles
Tare Weight:	7.0 T	Color:	Customized Color
Painting:	Customization	Payload:	Customization
Tire Specification:	12R22.5 Customized	Rim:	9.0-22.5
Lead Time:	10 Days

Products Description

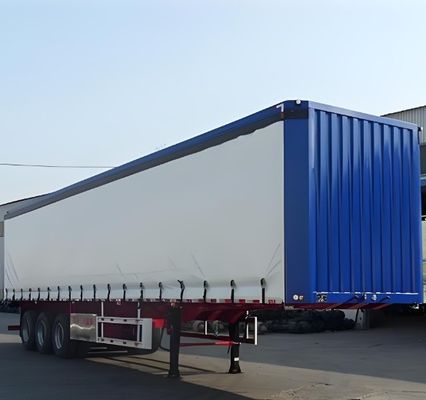

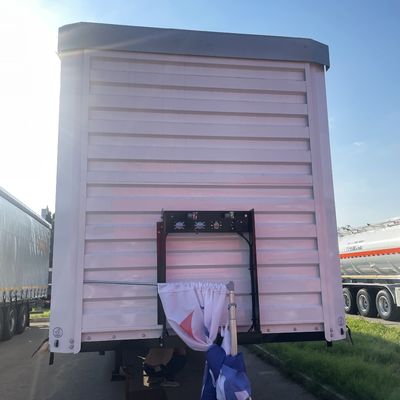

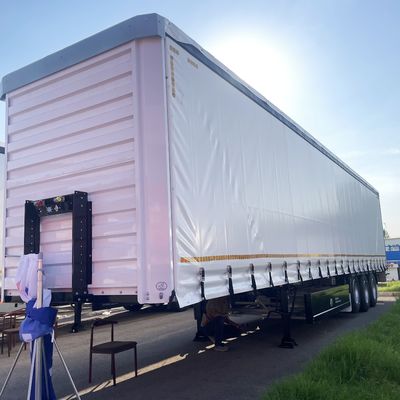

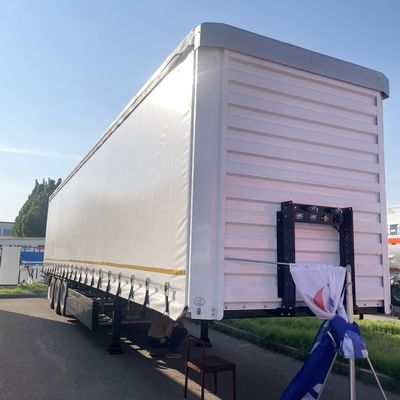

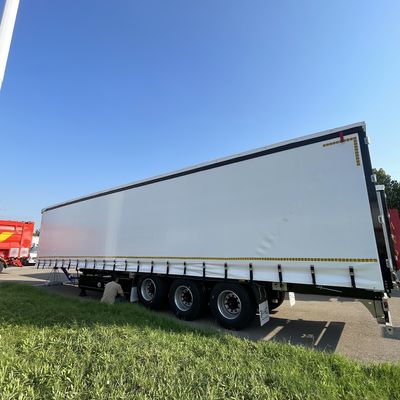

Side Curtain Semi trailer

*** Speaking of side curtain trailers, since both side and rear doors can be opened, the brake operation width can reach the entire lenth of the carriage, saving 70% of the loading and unloading time

*** Light Weight : the curtain fabric of the side curtain car is lighter than the composite plate of the ordinary box car, and it is equipped with high-strength light weight materials to improve the loading and unloading weight of the goods

*** Good protection of the side curtain , in additional to improving the loading and unloading and sealing efficiency, but also in the transportation process of dust and rain , to protect special goods from pollution

Drawing

Specification

Detail Specification
Items	Side curtain semi trailer
Tare Weight	7.0Tons (depends on final configuration)
Payload	40 tons or cutomizable
Size	13900x2500x4000mm (customization)
Inside Size	13280X2440X2547mm （customization)
Main Beam	Q345B/T700 steel Height 500mm Upper Plate is 14mm Down plate is 16mm Middle plate is 8mm or customization
Bottom Plate	Thickness 3mm (customization)
Curtain Height	2000mm
Slider	Manual Operation
Axles	13/16/20 tons, axle amount optional like 2/3/4 axles etc, axle brand optional like SAF, FUWA, BPW etc
King pin	2.00"(50#), bolting king pin, JOST or another brand according to customer
Suspension	Mechanical suspension air suspension (American or Geman)
Leaf Spring	10pcs leaf spring, thickness 13mm. width 90mm
Tire specs	12R22.5/315 80R22.5/11R20/12R20 Choose freely
Braking system	dual line brake system , Air chamber T30/30 3X40L gas storage drums
Rim	9.00-22.5 /8.00-20/8.5-20
ABS system	None or installed as your requirement.
Painting	Sanding , anti-corrosion , one primer paining add two layer top coat painting
Side Gurd	According to customer
Electrical system	24 volt electrical system 7 pin electrical connector, Parking stop, reverse, number plate and indicator lights, rear lights conform to european standard, rear front and side reflectors
spare tire	Two set of heavy duty spare wheel carriers, indluding a riser
Tool Box	One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar
Color	According to customers requirements
Delivery	From China Port and carry by container ship, ro-ro ship or by bulk
Remark	Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects

Suspention - Anti-Tire Abrasion

Specially designed anti-Tire abrasion suspension system prevent tire deflection after loading and avoids tires to the maximum extent worn out. and easy to disassemble and maintain

bottom

stronger sturction

Leaf Spring

Usually six sets, 10pcs leaf spring , 13mm thickness, 90mm width

Tire

use famous brand , or according to customer

Axle suspension and brake system

BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost , Fix quality springs and suspension , support longer service life, save maintain cost

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C

Company Profile

About us

Shandong Wosheng Special Vehicle Manufacturer Co., LTD.

Our Company mainly produce fence semi trailer, lowbed semi trailer , low fence semi trailer , rear dump semi trailer, container flat semi trailer, fuel oil semi trailer, etc all kinds of semi trailer, Our company have more than 20 years produce and exporting experience Quality is firstly, Credit is our base for business, Welcome to know us and build business relationship.

Recommend Products

Factory :

Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in
appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.

Packing and Loading

Container usually us 45 feet

Usually by bulk

Certification

we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.

We are your most reliable cooperation partner

We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.

High quality , factory lower price , good service !

FAQ

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
