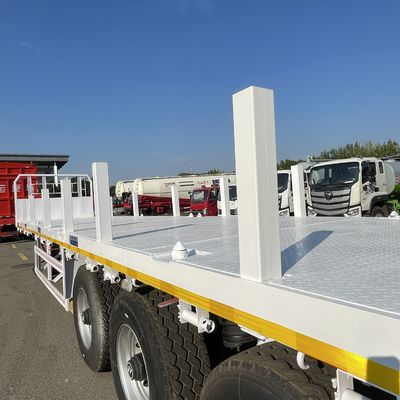

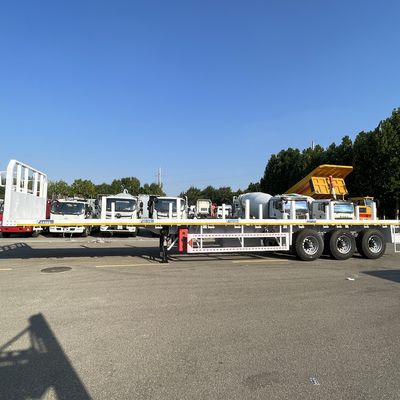

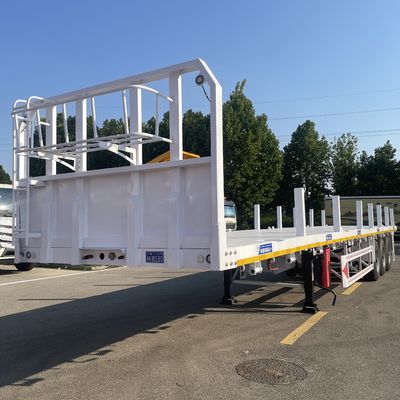

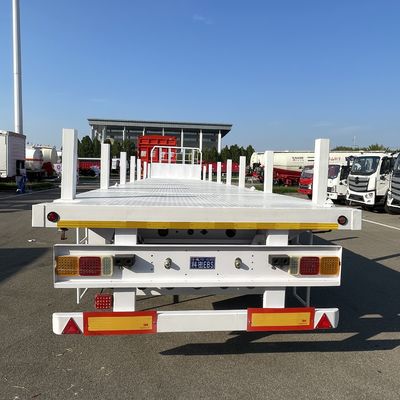

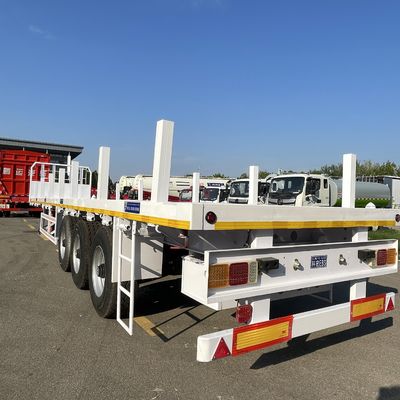

12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container

12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container

Large Image :  12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container

Product Details:
Place of Origin: Shandong, China
Brand Name: Wosheng
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $8,750.00/sets 1-9 sets
Payment Terms: T/T, L/C
Contact Now

12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 12400x2500x1550 Or Customization
Max Payload: >30000 Kg Color: Customization
Usage: Container Etc All Kind Of Cargo Axle: 3pc Or Customization
Tare Weight: 7.0 Ton Or Customaization Loading Capacity: 50 Tons Or Customization
King Pin: 2.00" (50#)/(90#) Tire Specs.: 12R22.5, Triangle Brand Or According Customer Reauirements
Rim: 9.0-22.5 Main Beam: Q345b
Lead Time: One Week

12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 0
Shandong Wosheng Semi Trailers
Qingdao Wosheng Import and Export Co., Ltd is a professional semi-trailer manufacturer with more than ten years of production experience. With a professional R & D team, we can according to your needs specializing in the production of customized high quality trailer. We provide the best quality, factory price, timely delivery and perfect after-sales. Please contact us if necessary.
Products Description
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 1

Wosheng Flatbed semi-trailers are usually used to transport 20FT/40FT/45FT container. The lower the center of gravity, the better the stability and safety, the better the ability to transport super high loads and pass overhead obstacles. According to the number of axles and the size of the tires, the load of the flatbed semi trailer is also different. The more the number of axles, the greater the load, and the load range is between 30-80 tons.
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 2
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 3

This flatbed semi trailer is specially used for transporting all kinds of containers, and it can also be used for transporting general bulk goods. It is mainly used in ships, ports, shipping lines, highways, transit stations, bridges, tunnels and other transportation systems.
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 4
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 5
Specification



The 40ft flatbed container trailer can carry 40ft and two 20ft containers. Flatbed trailers range from 20 to 80 tons and are available with 2, 3 and 4 axles. This flatbed semi-trailer can be equipped with removable breastplates, stake, number of locks, etc. as per customer requirements.
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 6
Example of engineer drawing
We can design as per your requirements
Flatbed Semi Trailer Specification


20FT FLATBED SEMI TRAILER
40FT FLATBED SEMI TRAILER
45FT FLATBED SEMI TRAILER
Brand: Wosheng
Brand: Wosheng
Brand: Wosheng
2 Axles/3 Axles
2 Axles/3 Axles
3 Axles/4 Axles
20ft container or cargo loading
1*40ft/2*20ft Container or cargo loading
1*40ft/1*45ft container or cargo loading
Loading Capacity: 20 - 60 Tons
Loading Capacity: 30 - 80 Tons
Loading Capacity: 30 - 100 Tons
Gooseneck Type: Yes
Gooseneck Type: Yes
Gooseneck Type: Yes
Tandem Type: Yes
Tandem Type: Yes
Tandem Type: Yes
Main Beam


Material: Q345/T700
Material: Q345/T700
Material: Q345/T700
Upper Plate Thickness: 12mm
Upper Plate Thickness: 16mm
Upper Plate Thickness: 16mm
Middle Plate Thickness: 6mm
Middle Plate Thickness: 10mm
Middle Plate Thickness: 10mm
Lower Plate Thickness: 14mm
Lower Plate Thickness: 18mm
Lower Plate Thickness: 18mm
Height: 500mm
Height: 500mm
Height: 500mm
Platform Thickness: 2.5mm
Platform Thickness: 3mm
Platform Thickness: 3mm
Product Dimension


L 7000mm*W 2500mm*H 1570mm
L 12400mm*W 2500mm*H 1570mm
L 13950mm*W 2500mm*H 1600mm
Axles


2/3 Axles *13/16 Ton
WOSHENG/FUWA/BPW/Othe
2/3 Axles *13/16 Ton
WOSHENG/FUWA/BPW/Other
3/4 Axles *13/16 Ton
WOSHENG/FUWA/BPW/Other
Tire


12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
Rim


9.00*22.5 (8/12 Pieces) Steel/Aluminum
9.00*22.5 (8/12 Pieces) Steel/Aluminum
9.00*22.5 (8/12 Pieces) Steel/Aluminum
Leaf Spring


90mm*13mm*10/90mm*16mm*10Pcs
90mm*13mm*10/90mm*16mm*10Pcs
90mm*13mm*10/90mm*16mm*10Pcs
King Pin


50#(2")/90#(3.5") JOST/Other Brand
50#(2")/90#(3.5") JOST/Other Brand
50#(2")/90#(3.5") JOST/Other Brand
Landing Gear


28 Ton Two Speed,JOST/Other Brand
28 Ton Two Speed,JOST/Other Brand
28 Ton Two Speed,JOST/Other Brand
Twist Lock


4 Sets
12 Sets
12 Sets
Vehicle Painting


Electrophoresis painting
Electrophoresis painting
Electrophoresis painting
Details Images
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 7

Landing Gear
JOST or Wosheng landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of 30℃ to 120℃.

Twist Lock
Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs. Customers can change the number of locks according to your own needs.
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 8
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 9

Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system, Prevent tire offset after loading, maximally avoid tire abrasion. Meanwhile, Easy to disassemble and maintain.

Brake System
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 10
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 11

Axle
BPW/FUWA/LEAO Axle optional. Integrated Advanced Low-Alloy Axle Beam, Whole Axle Beam No Welding process. Strong Carrying Capacity and high bending Strength. Axle maintenance-free could reach 3 Year/400,000 kilometers.

Tool Box
Located on the side of the trailer without taking up too much space, it can store necessary maintenance tools, straps and safety equipment, made of durable materials and securely locks to keep the contents safe.
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 12
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 13

Company Profile
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 14
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 15

Factory
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of
detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 16
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 17
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 18
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 19
Certification
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 20
Packing and Shipping
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 21
Our Advantages
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 22
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
12500x2500x1600-3100mm 3-4 Axles Fuwa Axle Flatbed Semi Trailer Suitable for Container 23
FAQ
Q1. Are you a factory or trade company ?
We are a comprehensive industrial and trade enterprise integrating product design,scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification?
Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent?
Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality?
We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide?
Accepted Delivery Terms: EXW, FOB, CFR, CIF

Q6. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools.
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
