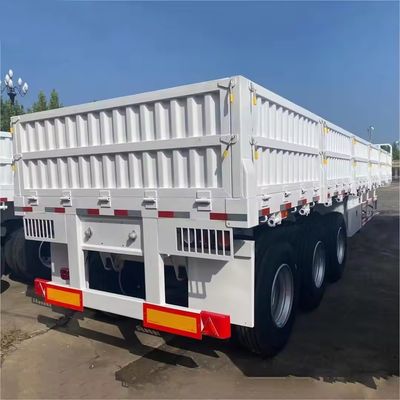

12400x2610x1550mm Semi-Trailer 3 Axle 4 Axle Fence Side Plate Truck Semi Trailer

Large Image : 12400x2610x1550mm Semi-Trailer 3 Axle 4 Axle Fence Side Plate Truck Semi Trailer

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Wo sheng

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$10,000.00/sets 1-4 sets
Payment Terms:	T/T, L/C

Contact Now

12400x2610x1550mm Semi-Trailer 3 Axle 4 Axle Fence Side Plate Truck Semi Trailer

Description

Use:	Truck Trailer	Type:	Semi-Trailer
Material:	Steel	Size:	12400x2610x1550mm
Max Payload:	>30000 Kg	Color:	According To Customer
Size:	According To Customer	Lead Time:	10 Days

Products Description

1.Capable OF Rough Road Condition

International standard heavy duty chassis and running system applied to cope with rough roadcondition.

2.Steel Structure

High tensile steel material and advanced design to achieve lower weight with high carrying capacity, reduce operation cost..

3.Light Design

Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.

4.Suspension

Different types of suspension are designed for various operating condition, bogie suspension; air suspension;
mechanical suspension.

5.The Frame

Wosheng trailer frame are beam through the structure, longitudinal beam using straight or gooseneck type. The web height is from 400mm to 550mm manganese plate welding, the rail is welded by automatic submerged welding, the frame is shot peening, and the beam is penetrated into the rail and welded as a whole.

Drawing

Specification

Wosheng Side Wall Semi Trailer
Trailer Application	Transport container, loose cargo, bulk cement, bulk rice, Coal etc
Trailer Model	2 Axles	3 Axles	4 Axles
Trailer Brand	Wosheng Trailer
Loading Capacity	30-60T	30T-80T	40T-100T
Product Size(L*W)	13000mm*2500mm	13000mm*2500mm	13000mm*2500mm
Sidewall Height	600mm-1700mm	600mm-1700mm	600mm-1700mm
OEM/ODM	Yes	Yes	Yes
Doors Opening Type	Multi choices	Multi choices	Multi choices
Main Beam Material	Q345/T700	Q345/T700	Q345/T700
Upper Plate Thickness	12mm	16mm	18mm
Middle Plate Thickness	6mm	10mm	12mm
Lower Plate Thickness	14mm	18mm	20mm
Height	500mm	500mm	500mm
Axles	13 Ton Wosheng/FUWA/BPW/Other
Tire	12R22.5 Linglong/Triangle/Double-Coin/Bridgestone/Other
Tire		(8 Pieces)	(12 Pieces)	(16 Pieces)
Rim	9.00*22.5 Steel/Aluminum
Rim		(8 Pieces)	(12 Pieces)	(16 Pieces)
Leaf Spring	90mm13mm10/90mm16mm10
Kin Pin	50#(2")/90#(3.5") JOST/Other Brand
Landing Gear	28 Tons Two Speed,JOST/Other Brand
Vehicle Painting	Electrophoresis paint
Above Information are VEHICLE Standard Spec.If customer want to change Spec.Please Let us know.

Twist Lock:
If you have shipping container requirements you should inform us in advance, we will provide you with 12 sets of twistlocks.

Brake System:
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Suspension:
Customers can choose mechanical suspension or air suspension.
Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.

Axle:

BPW/FUWA/L1Axle Wosheng optional.

We usually choose Fuwa axles(Chinese best axles) . If you want , we can choose other axles.

Tire:
Double Coin/LingLong/Michelin/Triangle/

Bridgestone and other famous brand for choice.Better Performance in wear resistance.

Landing Gear:
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.
