Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer, Skeleton Semi Trailer |
|---|---|---|---|
| Material: | Steel, Q345B | Size: | 12.38x2.48x1.55m |
| Max Payload: | >50000 Kg | Axles: | 2/3/4/5 Axles |
| Tare Weight: | 6.5 T | Color: | Customized Color |
| Painting: | Customization | Payload: | 50 T |
| Tire Specification: | 12R22.5 Customized | Rim: | 9.0-22.5 |
| Lead Time: | 10 Days |

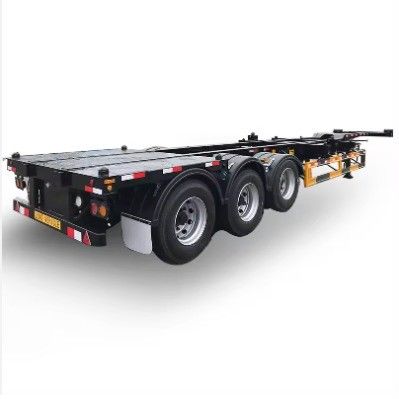

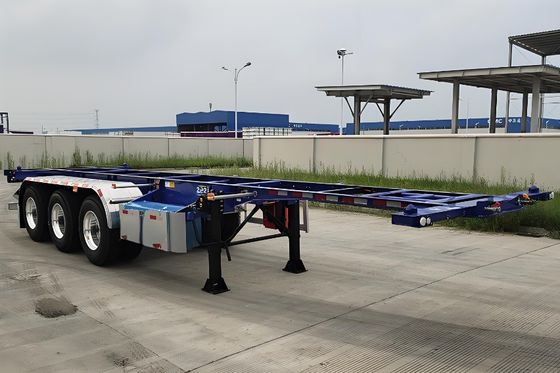

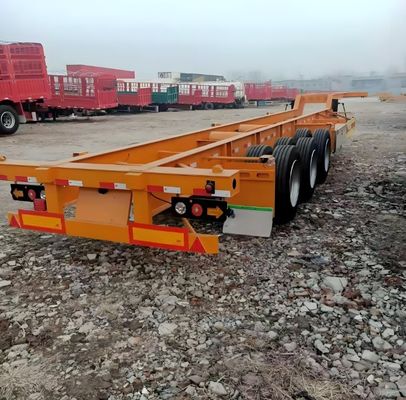

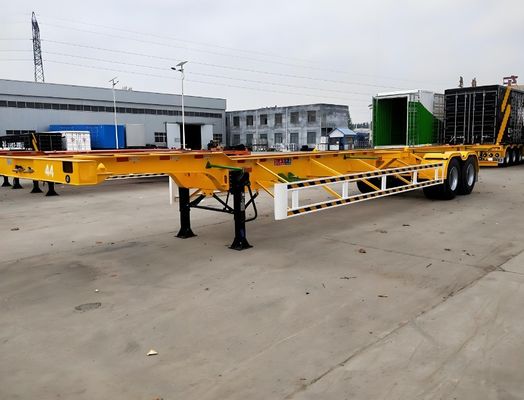

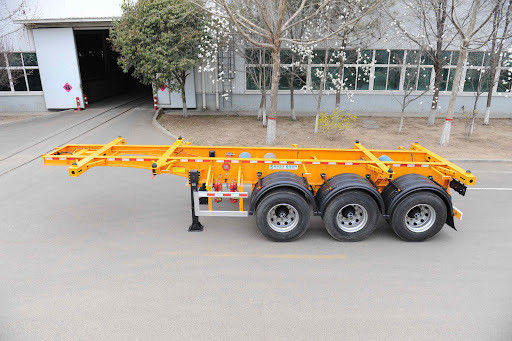

Detail Specification for skeleton semi trailer | ||
Items | skeleton semi trailer | |
Tare Weight | 6.5 Tons | |
Payload | 50Tons | |
Size | 12380X2480X1550mm | |
Frame | Main Beam: Opting for high strength Q345B steel, 520mm deep welded I-section main beams, Top flange thickness 14mm, Bottom flange thickness 16mm, Middle flage thickness 8mm | |
Cross Beam: Heavy duty thickened 10# channel steel | ||
Side Beam: Heavy duty 18# channel steel | ||
Axles | 13/16/20 ton. Axle amount optional like 2/3/4/5/6 axles etc, axle brand optinal like SaF /fuwa /BPW etc. | |
King pin | 2.00"(50#), bolting king pin, JOST brand | |
Suspension | Heavy duty type tri-axles suspension with equalizers. American design | |
Steel Spring | Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm | |
Landing gear | 28tons lifting capacity , two speed | |
Tire specs | 12R22.5 Triangle brand , or another brand according to customer | |
Pneummatic Braking system | dual line pneumatic brake system, T 30 air chamber, 40 L air tanks, Emergency relay valve | |
Rim | 9.00-22.5 brand according to customer | |
Paiting | Sanding , anti-corrosion , one primer paining add two layer top coat painting | |
Side Gurd | According to customer | |
Electrical system | 24 volt electrical system 7 pin electrical connector, Parking stop, reverse, number plate and indicator lights, rear lights conform to european standard, rear front and side reflectors | |
spare tire | Two set of heavy duty spare wheel carriers, indluding a riser | |
Tool Box | One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar | |
