WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials

WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials

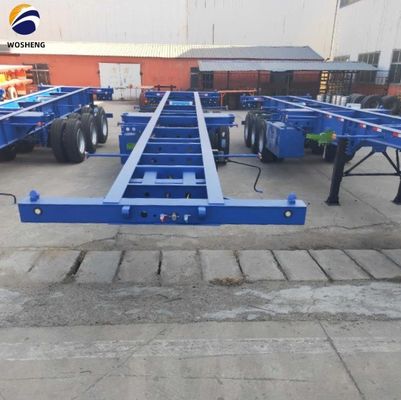

Large Image :  WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials

Product Details:
Place of Origin: Shandong, China
Brand Name: YUN SHENG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,500.00/units 1-9 units
Payment Terms: T/T, L/C
Contact Now

WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 12400x2500x1550mm
Max Payload: 50 Ton Function: Transport 40ft Container
Main Beam: Q345B Height 500mm Upper/down/middle Plate Are 14mm /16mm/8mm Color: Customer's Request
Leaf Spring: 90(w)mm*13/16(thickness)mm*10(layer) Brake System: Dual Line Braking System
King Pin: 2"(50mm)or3.5"(90mm) JOST Axle: 13Ton, 3 Axles FUWA
Suspension: Mechanical Suspension Landing Gear: Heavy Duty Landing Gear 28t
Tire: 12.00R22.5/315 80R22.5/11.00R20(Brand Optional)

Products picture

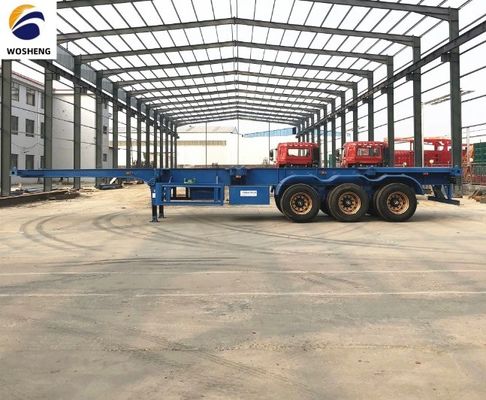

WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 0
Skeleton Semi Trailer.
Wosheng Skeleton Semi Trailer is an semi trailer with standardizes size (customization) and steel skeleton structure, mainly used for transporting container. This model have simple structure , strong durability, can adapt to complex transportation environment, and is an important part of modern logistics transportation. It is widely used in various types of international shipping ,railways road and other transportation occasions, can meet the transportation needs of different sizes and different shapes of containers.

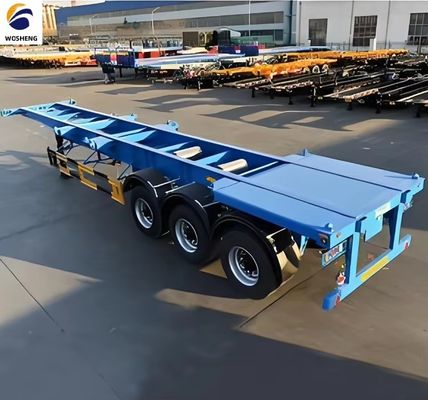

WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 1

The frame chassis of this series adopts the through-beam structure, and the frame structure includes straight and gooseneck types. The overall strength is high, the weight is light, the appearance is beautiful, and the use is safe and reliable.

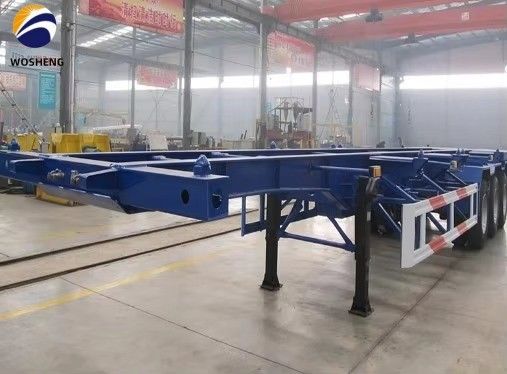

WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 2

Wosheng's raw materials ensure the quality of the products, and the procurement, inspection and use are strictly in accordance with the requirements of the quality system, which ensures the good performance of the vehicle.

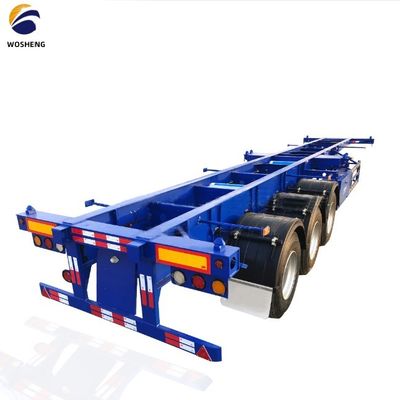

WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 3

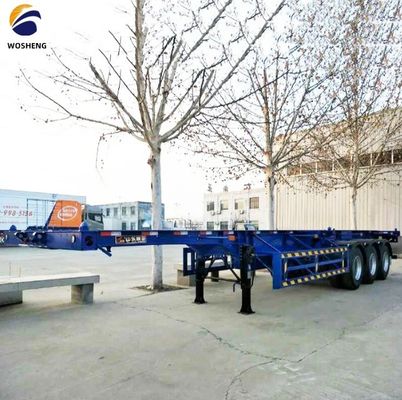

WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 4
Products Description
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 5
Product Name
Skeleton Semi Trailer
Dimension(Lx W x H)（mm）

Outside 12380×2480×1550mm (customizable)
Tare weight(kg)
6500 (depends on final configuration)
Max Loading Capacity (kg)
50000 （customizable)
Main Beam
Q345B / T700 Steel Height 500mm
upper plate is 14mm,
down plate is 16mm,
middle plate is 8mm. (customizable)
Axles
13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc
Tire
12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional)
Rim
9.00-22.5/8.00-20/8.50-20
King Pin
2"(50mm)or3.5"(90mm) JOST or other brand optional
Suspension
Mechanical Suspension Air Suspension(American or Geman)
Leaf Spring
90(w)mm*13/16(thickness)mm*10(layer)
Landing Gear
28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc.
Twist-lock
4/8/12 units (customizable)
Brake System
Dual line brake system, Air chamber T30/30,3 X 40L gas storage drums
ABS System
None or installed as your requirement.
Electrical system
1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness);
LED light ( standard rear light, turn light, rear reflector, side light,
side reflector etc.)
Color
As per customer requirement
Spare wheel bracket
1 piece of Spare Wheel Bracket
Tool box
1 set of standard tool box equipped with 1 Tire spanner, 1gudgeon sleeve and 1 cranking bar
Painting
Sand blasting before painting;one coats of primer, anti
corrosion; two coat of finish painting
Packing
Wax painting treatment to protect the vehicles from sea water,
and the chassis greased to avoid rusting during shipping.
Delivery
From China port, and carry by container ship, ro-ro ship or bulk
ship, the freight cost depends on the volume.
Products detail
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 6
Landing Gear
The warranty period of Chinese brand/JOST landing gear is more than 5 years.
Axle
BPW/FUWA/Wosheng Axle Optional. Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 7
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 8
Axle suspension and brake system
BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost.
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system, Prevent tire offset after loading, maximally avoid tire abrasion.Meanwhile, Easy to disassemble and maintain.
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 9
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 10
Tire
12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be choose freely , such as Double Coin / LingLong / Michelin / Triangle /
Bridgestone and other famous brand for choice. Better Performance in wear
resistance.
Recommend Products
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 11
Company Profile
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 12
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 13
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 14
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD. Our company focuses on the development and production of semi-trailer, engaged in the semi-trailer industry has more than 20 years of rich experience, is a real set of trade and production as one of the manufacturers.our experienced staff can discuss your requirements at any time to ensure your full satisfaction. modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 15
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 16
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 17
Packing and Shipping
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 18
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 19
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 20
We are your most reliable cooperation partner.
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 21
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 22
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 23
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 24
Certification
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 25
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 26
Exhibition
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 27
WOSHENG Tri-Axle 40FT 3 Axles 40 Ton Loading Chassis Skeleton Semi Trailer with Materials 28

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
