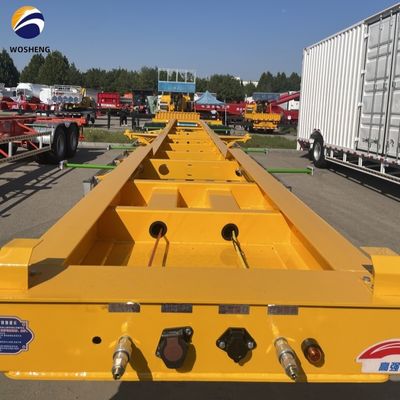

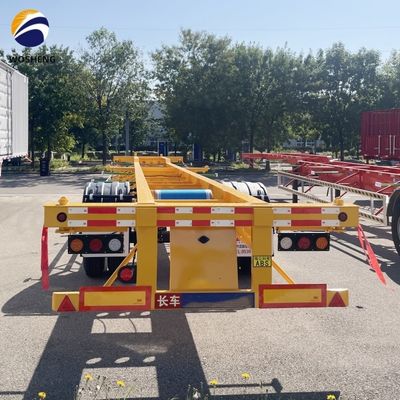

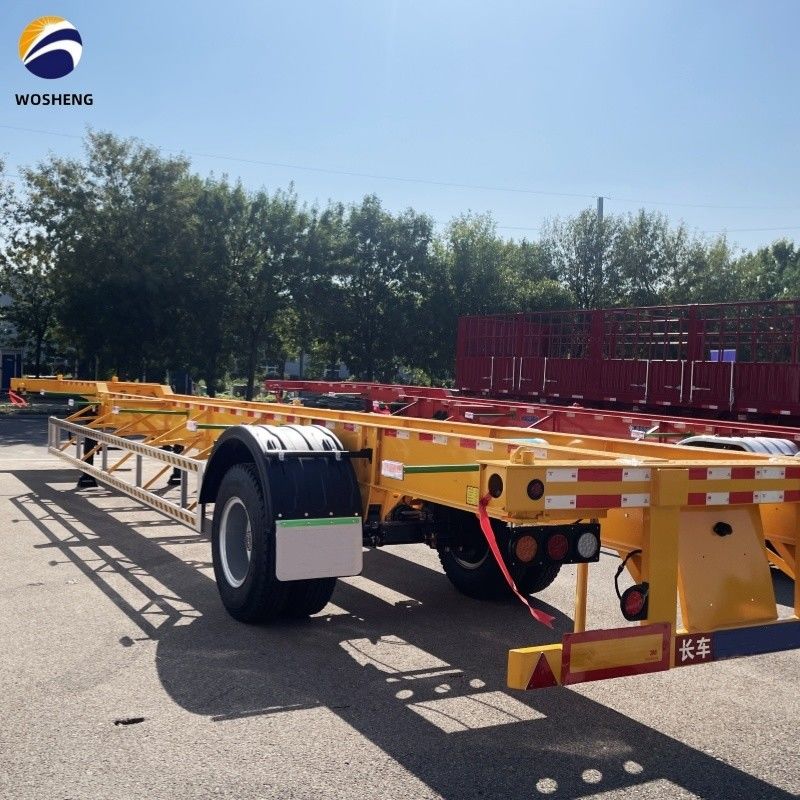

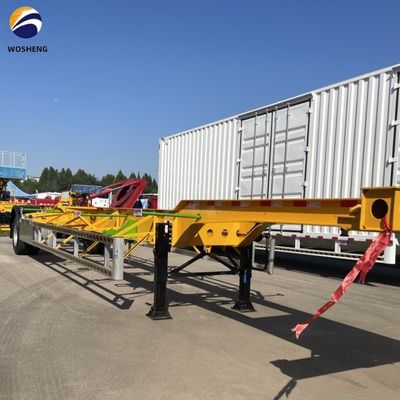

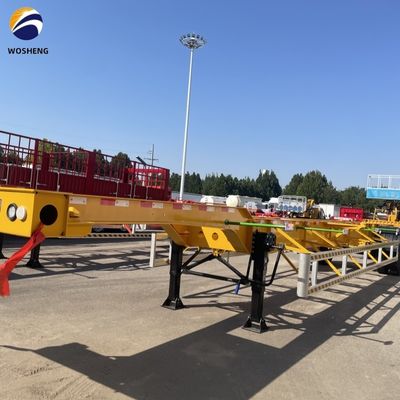

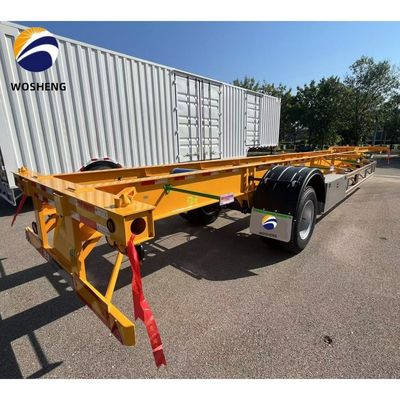

1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport

1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport

Large Image :  1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport

Product Details:
Place of Origin: Shandong, China
Brand Name: Yun Cheng
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $8,000.00/sets 1-4 sets
Payment Terms: T/T, L/C
Contact Now

1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 12.38x2.48x1.55m
Max Payload: >30000 Kg Color: Customized Color
Tare Weight: 6500kgs Usage: Container Transport
King Pin: 2.00 Or 3.5 Inch Bolt In King Pin Landing Gear: 28ton/pc
Main Beam: Q345B Rim: 9.0-20*12pcs 90#
Tire: 12R22.5*12pcs Lead Time: 7 Days

1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 0
Shandong Wosheng Semi Trailers
Qingdao Wosheng Import and Export Co., Ltd is a professional semi-trailer manufacturer with more than ten years of production experience. With a professional R & D team, we can according to your needs specializing in the production of customized high quality trailer. We provide the best quality, factory price, timely delivery and perfect after-sales. Please contact us if necessary.
Products Description
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 1
Hot selling 1/2 axles 20/40/45 feet container transport chassis steel skeleton semi trailer for truck
When using a container chassis trailer to transfer the goods, it can be directly loaded in the consignor's warehouse and transported to the consignee's warehouse for unloading. When changing vehicles and ships midway, there is no need to remove the cargo from the container and reload it. It can be quickly loaded and unloaded, and can be directly and conveniently converted from one mode of transportation to another.
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 2

The skeleton is the main product of our company, fully digesting and absorbing the characteristics of similar products at home and abroad, with strong loading capacity and high reliability.
The frame chassis of this series adopts the through-beam structure, and the frame structure includes straight and gooseneck types. The overall strength is high, the weight is light, the appearance is beautiful, and the use is safe and reliable.
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 3


Using advanced manufacturing technology, submerged arc automatic welding is used for longitudinal beams, and shot blasting is performed on the whole frame to effectively eliminate welding residues.
In the spraying process, advanced spraying powder and baking technology are used to ensure that the vehicle is not easy to rust and beautiful.

1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 4

Wosheng's raw materials ensure the quality of the products, and the procurement, inspection and use are strictly in accordance with the requirements of the quality system, which ensures the good performance of the vehicle.
Specification
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 5
Example of engineer drawing
We can design as per your requirements
Wosheng Skeleton Container Trailer


20FT Skeleton Semi Trailer
40FT Skeleton Semi Trailer
45FT Skeleton Semi Trailer
Brand: Wosheng
Brand: Wosheng
Brand: Wosheng
2 Axles/3 Axles
3 Axles/ 4 Axles
3 Axles/ 4 Axles
20ft Container Loading
1*40ft/2*20ft Container Loading
1*45ft/1*40ft/2*20ft Container Loading
Loading Capacity: 20-50 Tons
Loading Capacity: 30-80 Tons
Loading Capacity: 30-80 Tons
Type: Gooseneck or Tandem
Type: Gooseneck or Tandem
Type: Gooseneck or Tandem
Main Bean


Material: Q345/T700
Material: Q345/T700
Material: T700
Upper Plate Thickness: 12mm
Upper Plate Thickness: 14mm
Upper Plate Thickness: 10mm
Middle Plate Thickness: 6mm
Middle Plate Thickness: 6mm
Middle Plate Thickness: 5mm
Lower Plate Thickness: 12mm
Lower Plate Thickness: 16mm
Lower Plate Thickness: 10mm
Height: 500mm
Height: 500mm
Height: 420mm
Dimension


L*W*H: 7000mm*2480mm*1560mm
L*W*H: 12400mm*2480mm*1580mm
L*W*H: 13950mm*2500mm*1600mm
Axle


2/3 Axles *13 Ton
Wosheng/FUWA/BPW or Anothers
3/4 Axles *13 Ton
Wosheng/FUWA/BPW or Anothers
3/4 Axles *13/16 Ton
Wosheng/FUWA/BPW or Anothers
Tire


12R22.5 (8/12 Pieces)
Linglong/Triangle/Double
Coin/Bridgestone
12R22.5 (12/16 Pieces)
Linglong/Triangle/Double
Coin/Bridgestone
12R22.5 (12/16 Pieces)
Linglong/Triangle/Double
Coin/Bridgestone
Rim


9.00*22.5 (8/12 Pieces)
Steel/Aluminum
9.0*22.5 (12/16 Pieces)
Steel/Aluminum
9.00*22.5 (12/16 Pieces)
Steel/Aluminum
Leaf Spring


90mm*13mm*10 Pieces
90mm*16mm*10 Pieces
90mm*13mm*10 Pieces
90mm*16mm*10 Pieces
90mm*13mm*10 Pieces
90mm*16mm*10 Pieces
King Pin


#50 (2")/#90 (3.5")
JOST/Other Brand
#50 (2")/#90 (3.5")
JOST/Other Brand
#50 (2")/#90 (3.5")
JOST/Other Brand
Landing Gear


28 Tons Two Speed
JOST/Other Brand
28 Tons Two Speed
JOST/Other Brand
28 Tons Two Speed
JOST/Other Brand
Twist Lock


4 Sets
12 Sets
12 Sets
Painting


Electrophoresis Painting
Electrophoresis Painting
Electrophoresis
Vehicle Painting


Electrophoresis painting
Electrophoresis painting
Electrophoresis painting
Details Images

Wosheng Moisture-proof LED lights
Equipped with LED moisture-proof lamps to prevent short circuits and ensure the safety of vehicles transportation at night.
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 6
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 7

Landing Gear
JOST or Wosheng landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of 30℃ to 120℃.

Twist Lock
Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs. Customers can change the number of locks according to your own needs.
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 8
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 9

Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system, Prevent tire offset after loading, maximally avoid tire abrasion. Meanwhile, Easy to disassemble and maintain.

Brake System
T30/30 Spring brake chamber. WABCO valve, ABS/EBS system optional. dual line brake pipe.
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 10
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 11
Axle
BPW/FUWA/Wosheng Axle optional. Integrated Advanced Low-Alloy Axle Beam, Whole Axle Beam No Welding process. Strong Carrying Capacity and high bending Strength. Axle maintenance-free could reach 3 Year/400,000 kilometers.
Company Profile
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 12
About us
Qingdao Wosheng Import and Export Co., Ltd., a professional semi trailer manufacturer in China with over 10 years. We specialized in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles sales and service. We mainly export to South East Asia,Mid-Asia,Russia,Africa, South America market.
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 13

Factory
WOSHENG vehicle committed to advanced technology of trailer, strict quality control standards and perfect sales service experience to achieve a win-win situation with our customers.We have advanced modern equipment like automatic welding robot.large automatic gantry welding machine, automatic bending parts,surface laser plasma cutting machine & etc., and strong technical team to ensure customer satisfaction of products and timely delivery .
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 14
Certification
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 15

We have obtained the World Material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 16
Our Advantages
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 17
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 18
Packing and Shipping
1/2 Axles 20ft 40ft 45ft Steel Skeleton Semi Trailer Container Transport 19
FAQ
Q1. Are you a factory or trade company ?
We are a comprehensive industrial and trade enterprise integrating product design,scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification?
Yes,we could. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent?
Yes, we're looking for the agent all over the world, warm welcome to contact us for further discussion.

Q4. How to control quality?
We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. Which kind of trade term will you accept?
Accepted Delivery Terms: EXW, FOB, CFR, CIF

Q6. What logistics ways we can work for shipment?
We arrrange delivery by sea for 90% of our shipment, like: South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment. For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can ship trucks by land transportation or railway. For spare parts in urgent demand, we can ship it by express, such as DHL, TNT, UPS, or Fedex.
