Product Details:
|
| Use: | Truck Trailer, Animal Fence Transport Trucks Trailers | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel, Steel | Size: | 12400x2500x3650mm(customizable), 12400x2500x3650mm |
| Max Payload: | >30000 Kg | Product Name: | Fence Semi Trailer |
| Axle: | 3/4 Axles | King Pin: | 2"(50#) Or 3/5"(90#) |
| Main Bean: | Q345B/T700 | Rim: | 9.00-22.5/8.00-20/8.5-20 |
| Tire: | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 | Color: | Customization |

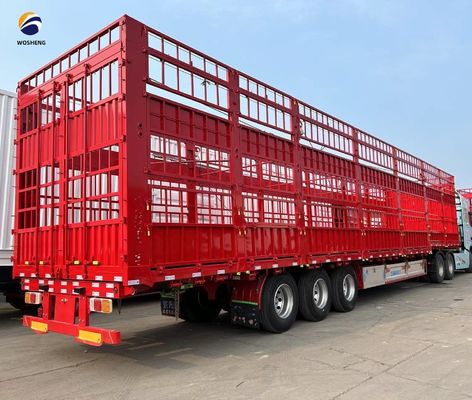

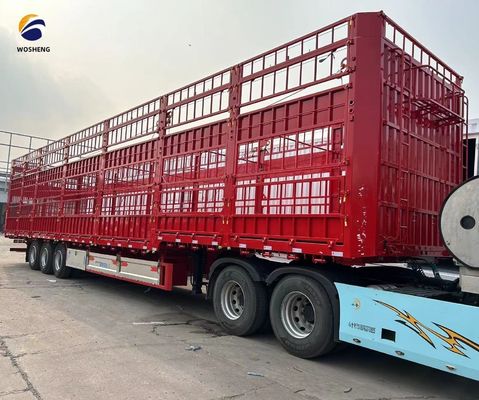

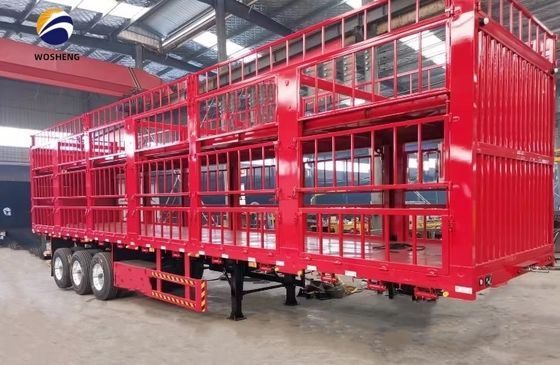

Wosheng Livestock Fence Semi Trailer | ||
Product Name | Livestock Fence Semi Trailer | |
Dimension(Lx W x H)（mm） | 17500*2800*430mm (customizable) | |
Floors | 1/2/3/4 (customizable) | |
Tare weight (kg) | 7500 (depends on final configuration) | |
Max Loading Capacity (kg) | 50000 （customizable) | |
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) | |
Side Beam | 16mm channel steel(material is Q235B steel) | |
Bottom plate thickness (mm) | 3mm (customizable) | |
Above Decks | Electric lifting | |

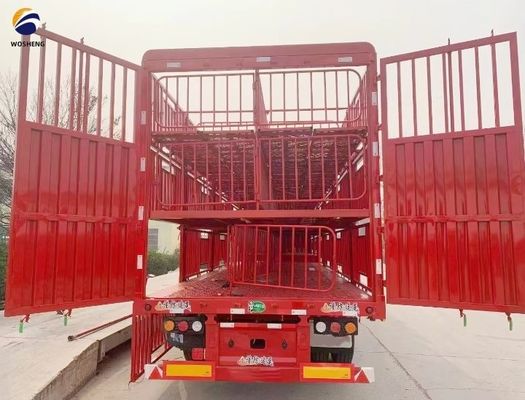

Back door | Common manual open/close ,Electric lifting or Hydraulic lifting | |
Axles | 13Ton. 3Axles Brand optional | |
Tire | 12.00R22.5 (optional)Brand Tringle, double coin etc | |
Rim | 9.00-22.5 (optional) | |
King Pin | 2"(50mm)or3.5"(90mm) JOST | |
Suspension | AIR/Mechanical Suspension | |
Leaf Spring | 90(w)mm*13(thickness)mm*10(layer) | |
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA | |
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums | |
ABS System | None or installed as your requirement. | |
Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) | |
Color | As per customer requirement | |
Spare Wheel Bracket | 1 piece of Spare Wheel Bracket | |
Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar | |
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; | |
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. | |
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. | |
Remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. | |
