Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400x2500x3650mm |
| Max Payload: | 80tons | Color: | Customization |
| Axle: | 3/4 Axles | King Pin: | 2"(50#) Or 3/5"(90#) |
| Main Bean: | Q345B | Rim: | 9.00-22.5 |
| Tire: | 12.00R 22.5 | Suspension: | Mechanical Suspension Or Air Suspension |
| Brake System: | Air Champer | Lead Time: | 15 Days |
| Condition: | New |

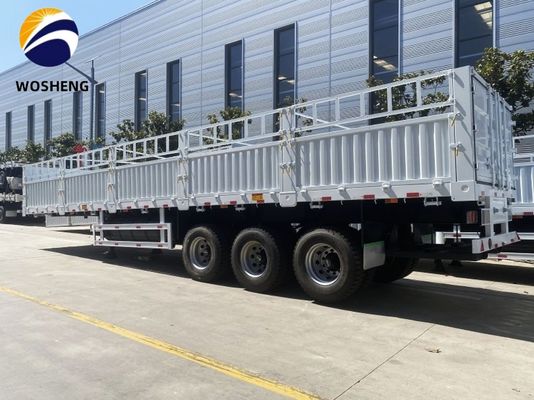

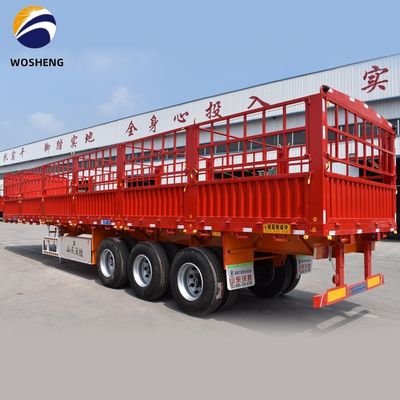

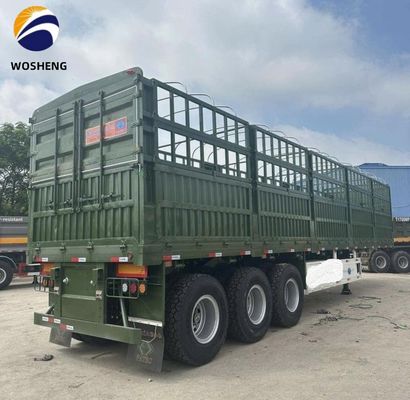

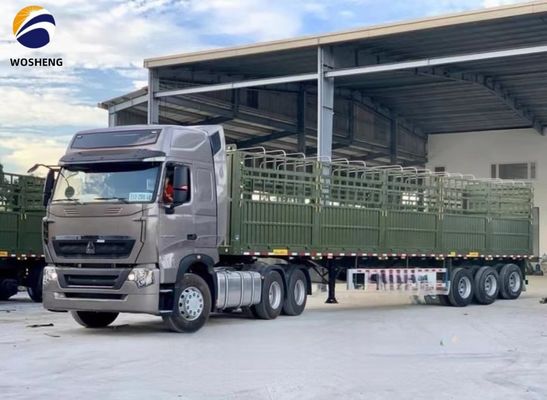

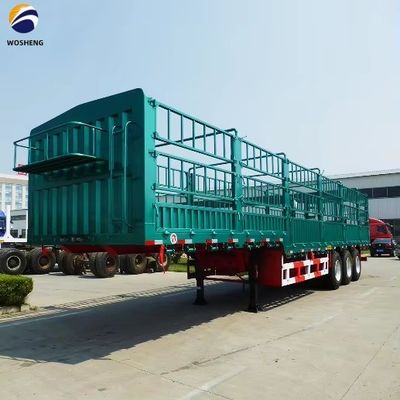

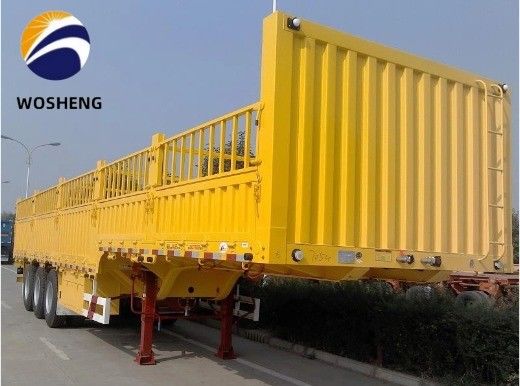

Wosheng Fence Cargo Semi Trailer(Customerize and OEM Service Available) | ||||||
Application | Coal/ Livestock/Vegetable/Cargo Loading | |||||
Product Name | 2 axles fence semi trailer | 3 axles fence semi trailer | 4 axles fence semi trailer | |||
Size（mm) | 9500/11000*2500*2800/3800 | 12500/13000*2500*2800/3800 | 12500/13000*2500*2800/3800 | |||
Payload | 30-60Tons | 30-80Tons | 40-100Tons | |||
Main beam | Height: 500mm, Upper plate is 12mm, Middle plate is 6mm, Down plate is 14mm , Material is Q345B Steel. | Height: 500mm, Upper plate is 16mm, Middle plate is 10mm, Down plate is 18mm , Material is Q345B Steel. | Height: 500mm, Upper plate is 18mm, Middle plate is 12mm, Down plate is 20mm, Material is Q345B Steel. | |||
Axles | 2*13T/16Ton Wosheng/ FUWA/BPW/Other | 3*13T/16Ton Wosheng/FUWA/BPW/Other | 4*13T/16Ton Wosheng/ FUWA/BPW/Other | |||
Side Wall Height | 600mm-1700mm (can be customized) | |||||
Side beam | 16mm channel steel (Material is Q235B steel) | |||||
Bottom Platform | 3mm checquered steel plate | |||||
Suspension | Mechanical suspension (Air suspension optional) | |||||
Leaf spring | 90(width)mm*13(thickness)mm*10 layer(especial for exporting market) | |||||
Tire | 12R22.5 / 11.00R20 8/12pcs (Other size optional) | |||||
Rim | 9.00-22.5 / 11.00R20 8/12pcs (Other size optional) | |||||
Kin pin | Jost brand 2.0 or 3.5 inch | |||||
Landing gear | Jost brand 28Ton two speed | |||||
Braking system | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks | |||||
Electrical | LED light , 7 ways ,24V | |||||
Tool box | One piece 1m *0.5m*0.5m ( size can be customized) | |||||
Twist locks | Optional | |||||
ABS | Optional | |||||
Painting | 1.Sand blasting processing clean rust.2.Coat of anticorrosive primer. 3.Coats of finish urethane paint. 4.Color as customer choice. | |||||
Shipping terms | By bulk vessel, RORO, or 40HQ container | |||||
This series of semi-trailers are designed with cross-beam structure in the main frame, and for the longitudinal beam, it’s designed as flat bed or goose-neck. The height of the middle plate (manganese plate) is from 400mm to 550mm. The longitudinal beam is welded by automatic submerged welding. The frame is shot blasted. The beam penetrates the longitudinal beam and is welded as a whole. | ||||||||
