Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm

Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm

Large Image :  Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm

Product Details:
Place of Origin: Shandong, China
Brand Name: WOSHENG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $18,000.00/sets 1-9 sets
Payment Terms: T/T, L/C
Contact Now

Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 16000x2500x1100mm Or Customizable
Max Payload: >30000 Kg Product Name: Lowbed Semi Trailer
Tare Weight: 80-100TON Size: 16000x2500x1100mm
Axle: 4 Axle Tire: 12R22.5
Suspension: Mechanical Suspension Air Suspension King Pin: 2"(50mm) Or3.5"(90mm)
Brake System: Dual Line Braking System Twist Locks: Customers Optional
Color: Customers Optional

Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 0
Shandong Wosheng Semi Trailers
Qingdao Wosheng Import and Export Co., Ltd is a professional semi-trailer manufacturer with more than ten years of production experience. With a professional R & D team, we can according to your needs specializing in the production of customized high quality trailer. We provide the best quality, factory price, timely delivery and perfect after-sales. Please contact us if necessary.
Products Description
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 1
High quality 4 axle 80 100 ton transport excavators and dozers lowboy low loader lowbed semi trailer for sale
Wosheng low bed semi-trailers are usually used to transport container, heavy vehicles , rail vehicles, mining machinery, forestry machinery, construction machinery and other heavy loads. The lower the center of gravity, the better the stability and safety, the better the ability to transport super high loads and pass overhead obstacles.
According to the number of axles and the size of the tires, the load of the lowbed semi trailer is also different. The more the number of axles, the greater the load, and the load range is between 20-150 tons.
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 2

Lowbed semi trailer have plate types, concave beam type and exposed tire type structure, its frame for the ladder, longitudinal beam section for the i-shape, with high stiffness, high strength characteristics.
The main plane of the frame and cargo platform is low, which ensures the smoothness of transportation.
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 3
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 4
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 5
Specification
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 6
Example of engineer drawing
We can design as per your requirements
Wosheng Lowbed Lowboy Semi Trailer (Customerize and OEM Service Available)
Product Name
2 axles lowbed semi trailer
3 axles lowbed semi trailer
4 axles lowbed semi trailer
Size（mm）
12500*3000*1100
13000*3000*1100
14000*3000*1100
Payload
40000KG
60000KG
80000KG
Plate
4mm checked plate
4mm checked plate
5mm checked plate
Axles
2 * 13ton capacity
(Brand optional)
3 * 13ton capacity
(Brand optional)
4 * 13ton capacity
(Brand optional)
Ladder
Hydraulic ladder or Mechanical spring ladder
Main beam
Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm ;
Material is Q345B Steel.
Side beam
250mm I beam; 20mm channel steel ( Material is Q235steel ).
Bottom Platform
4mm thickness diamond steel plate
Suspension
Mechanical suspension (Air suspension optional)
Leaf spring
90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
(specially intended for overseas markets)
Tire
12R22.5 / 11.00R20 8pcs (Other size optional)
Rim
9.00-22.5 / 11.00R20 8pcs (Other size optional)
Kin pin
2’’/3.5’’ bolt type
Landing gear
28 Ton two speed
Braking system
Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical
LED light , 7 ways ,24V
Accessory
One tooling box with a set of standard trailer tool
Painting
1.Sand blasting processing clean rust.
2.Coat of anticorrosive primer.
3.Coats of finish urethane paint.
4.Color as customer choice.
Other Descriptions
The cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the
transportation.
Usage
It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks,
power plant equipment or machine, and all sorts of steel products.
Other Specifications
It's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders
belong to optional components), with the overall height of 1710 mm.
Remark
We can design model according to client's requirement
Details Images
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 7

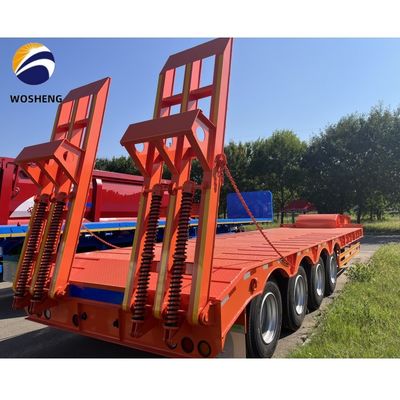

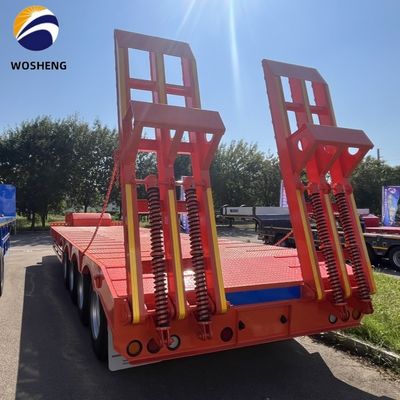

Ladder (1) and anti-skid chains
This is Mechechinal Ladder .
The function of the ladder anti-skid chain is to prevent the ladder from falling off, making it safer to use.


Ladder(2) Hydraulic :
Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual.
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 8
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 9


Twist Lock
It is also optionally available with container locks, which facilitates the transport of containers.


Low bed platform
The low bed platform uses patterned steel and welded anti-skid ribs to prevent equipment and goods from loosening and slipping.
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 10
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 11

Axle
BPW/FUWA/WOSHENG Axle optional. Integrated Advanced Low-Alloy Axle Beam, Whole Axle Beam No Welding process. Strong Carrying Capacity and high bending Strength. Axle maintenance-free could reach 3 Year/400,000 kilometers.


Brake System
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 12
Company Profile
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 13
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 14

Factory
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of
detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 15
Certification
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 16

We have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 17
Our Advantages
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 18
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 19
Packing and Shipping
Heavy Duty Lowboy Trailer with Max Payload of 30000 kg and Size of 16000x2500x1100mm 20
FAQ
Q1. Are you a factory or trade company ?
We are a comprehensive industrial and trade enterprise integrating product design,scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification?
Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent?
Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality?
We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide?
Accepted Delivery Terms: EXW, FOB, CFR, CIF

Q6. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools.
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
