20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform

20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform

Large Image :  20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform

Product Details:
Place of Origin: Shandong, China
Brand Name: Wosheng
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,000.00/sets 1-4 sets
Payment Terms: T/T, L/C
Contact Now

20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel Size: 12400x2610x1550mm Or Customization
Max Payload: 100tons Color: Customization
Usage: Container Etc All Kind Of Cargo Axle: 3 Axles Or Customization
Tare Weight: 7.0 Ton Or Customaization Loading Capacity: 100Tons Or Customization
King Pin: 2.00" (50#)/(90#) Tire Specs.: 12R22.5, Triangle Brand Or According Customer Reauirements
Rim: 9.0-22.5 Main Beam: Q345b Or T700
Lead Time: One Week

Description of Flatbed Container Trailer
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 0

1.The Flatbed Container Trailer is the main product of our company. It's made of high stength full thickness Steel, titanium content 0.98‰, which ensure the toughness and strength of the beam and frame’s toughness and strength. The Max Loading Capacity: 30- 100 Tons
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 1
2.The main beam adopts fully automatic submerged arc welding, the whole vehicle is shot blasted and rust-proof, and the floor is a 3mm thick anti-skid plate
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 2

3.The whole frame of the flatbed trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 3

4.We adopt world famous brand of parts, like Fuwa axle, BPW axles, JOST landing gear, WABCO braking valve etc. The axles are equipped with WABCO emergency brake valves, and the double brake air chambers also widen the pads.
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 4
5.This kind of flat semi-trailer can be equipped with removable breast boards, columns, number of locks, etc. according to customer requirements. colums height can be asjusted
Specification
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 5
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 6
Wosheng 40Ton Flatbed Trailer 20/40/45/48ft Container Flatbed Semi-trailer Chassis
Product name
20 FT Flatbed Semi-trailer
40 FT Flatbed Semi-trailer
45 FT Flatbed Semi-trailer
Product Size
7000*2500*1570mm
12400* 2500*1570mm
13950*2500*1600mm
Axle
2 /3 Axles*13Ton FUWA/BPW/Wosheng or Customizaion
2 /3 Axles*13Ton FUWA/BPW/Wosheng or Customization
2 /3 Axles*13Ton FUWA/BPW/Wosheng or Customization
Application
1*20 ft Container or cargo Loading Loading
1*40ft/2*20 ft Container/Cargo Loading
1*40ft/1*45/2*20 ft Container / Cargo Loading
Capacity
20-60 Tons
30-80 Tons
30-100 Tons
Main Beam Material
Q345/T700
Q345/T700
Q345/T700
Upper Plate Thickness
12mm
14mm
16mm
Middle Plate Thickness
6mm
8mm
10mm
Down Plate Thickness
14mm
16mm
18mm
Height
500mm
Platform Thickness
3mm thick patterned steel plate
Leaf Spring
90mm*13mm*10/90mm*16mm*10layers
Kin Pin
50#(2")/90#(3.5") JOST/Other Brand
Landing Gear
28 Tons Two Speed,JOST/Other Brand
Twist Lock
4 Sets
12 Sets
12Sets
Suspension System
Mechanical or Air Suspension
Tire
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other
Rim
9.00*22.5 (8/12 Pieces)
Tool Box
Steel or Aluminum
Painting
Electrophoresis paint
If you want to know more details,please contact us directly
Details Images
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 7

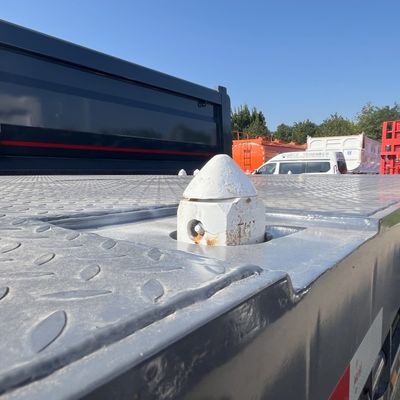

Twist Lock
Commercial 20ft with 8sets , 40ft 45ft with 12sets twist lock , also can adjust according to your requirement .
Landing gear
The warranty period of Wosheng brand or JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 8
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 9
Brake System
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system, Prevent tire offset after loading, maximally avoid tire abrasion.
Meanwhile, Easy to disassemble and maintain..
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 10
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 11
Axle:
BPW/FUWA/Wosheng Axle optional. Integrated Advanced Low-Alloy Axle Beam, Whole Axle Beam No Welding process. Strong Carrying Capacity and high bending Strength. Axle maintenance-free could reach 3 Year/400,000 kilometers.
Tool Box
Located on the side of the trailer without taking up too much space, it can store necessary maintenance tools, straps and safety equipment, made of durable materials and securely locks to keep the contents safe.
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 12
20ft 40ft Container Flatbed Truck Semi Trailer with 3mm 4mm Grain Plate Platform 13
Tire
12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be choose freely , such as Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear
