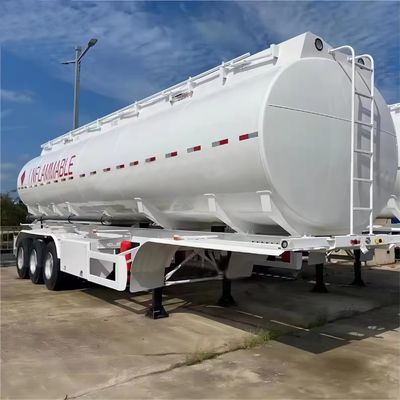

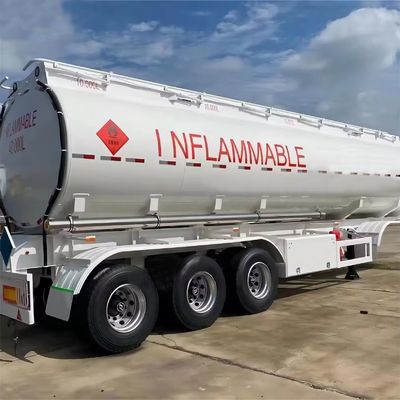

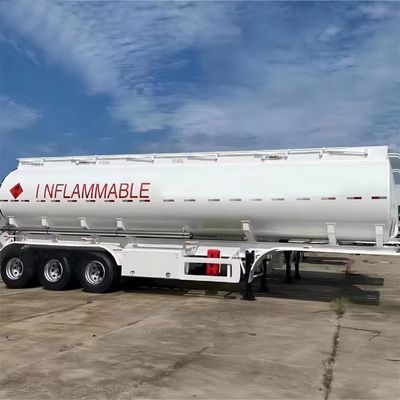

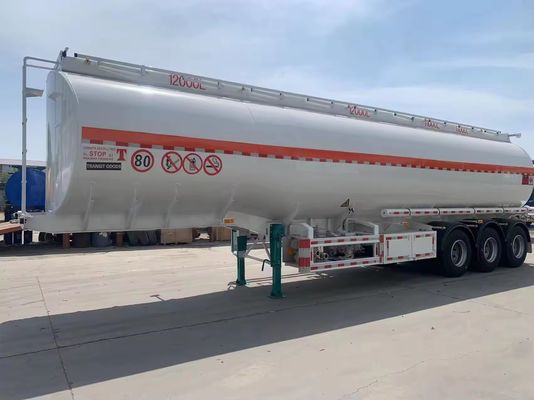

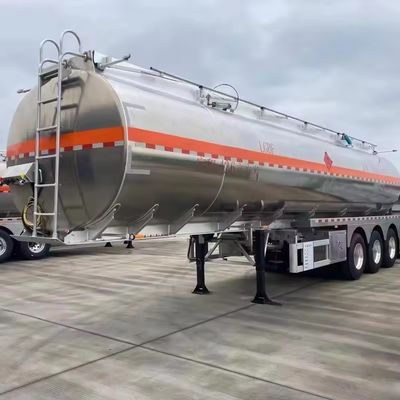

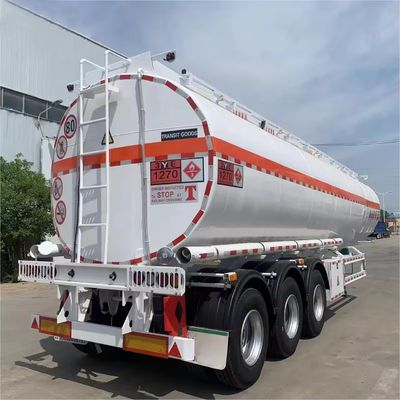

Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker

Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker

Large Image :  Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker

Product Details:
Place of Origin: SHANDONG CHINA
Brand Name: WO SHENG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $9,800.00/units 1-4 units
Payment Terms: T/T, L/C
Contact Now

Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker

Description
Use: Truck Trailer Type: Semi-Trailer
Material: Steel, Aluminum Alloy Size: 13000*2550*3780mm
Max Payload: 80 Ton Function: Tank Semi Trailer
Color: White/blue/red/green/customized Landing Gear: Standard 28 Ton
King Pin: 2"(50mm)or3.5"(90mm) JOST Axle: 2 Axles 3 Axles 4 Axles FUWA/Wosheng
Suspension: Mechanical Suspension Tire: 12.00R22.5/11.00R20(Brand Optional)

Products picture
1.Compared with the common single oil tank truck, the semi-trailer fuel tank can effectively improve the transportation efficiency. In the case of the same tonnage, the transportation cost is reduced and the fuel consumption is saved.
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 0
2.The fuel tank body is made of 4mm or 6mm high-quality carbon steel produced by the iron and steel company according to the national standard. It can also produce heating and thermal insulation series tanks.
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 1
3.There are multiple anti-wave baffles in the tank. High-pressure gas leak detection is adopted, so that the tank has the characteristics of high strength, stable center of gravity, safe and stable vehicle transportation, etc.
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 2
4.Centrifugal pumps, gear pumps and stainless steel pumps can be selected according to the purpose of the tanker, which have the characteristics of large flow rate and fast suction speed.
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 3
Products Description
Material
Carbon Steel/Aluminum/Stainless Steel
Application
Fuel/Liquid Loading
Volume of Tank
20-55 CBM Customized
Axle
2/3/4 Axles
Compartment
1 to 9
Length*Width*Height
13000mm*2500mm*3800mm
European System
Available
Thermal
Available
Manhole
Anti-Explosion
Lifted Axle
Available
Vehicle Examination
X-RAY Room Examination
OEM/ODM
Available
SKD/CKD Cooperation
Available
Tank Shape
D Style/Round Style
Item
Spec.
Tank Thickness
5mm
Dish End Thickness
6mm
Buffle Thickness
4mm
The spare parts below are based on the quantity of compartments.For ExampleOne Compartment.
Manhole
X-RAY Room Examination
Discharge Valve
2*3 inch
Bottom Valve
4 inch Aluminum
Discharge Pipe
3 inch rubber hose,6m/each
Hose Carrier
2 Pieces Carbon Steel/Aluminum
Axles
2/3/4 Axles *13/16 Ton FUWA/BPW/Other
Tire
12R22.5/11.00r20 (8/12/16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other
Rim
9.00*22.5/8.0 (8/12/16 Pieces) Steel/Aluminum
Leaf Spring
90mm*13mm*10/90mm*16mm*10
Suspension System
Mechanical or Air Suspension
Kin Pin
50#(2")/90#(3.5") JOST/Other Brand,Changeable
Landing Gear
28 Tons Two Speed,/JOST/Other Brand
Tool Box
Steel or Aluminum
Extinguisher
2 Sets
Above Information are Standard Spec.If customer want to change Spec.Please Let us know. Want to know more details,please contact us directly.
Products detail
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 4
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 5

Axle suspension and brake system

BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 6

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 7

Leaf Spring

Usually six sets, 10pcs leaf spring , 13mm thickness, 90mm width
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 8

Tire

use famous brand , or according to customer

Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 9
Company Profile
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 10
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 11
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 12
About us
Shandong Wosheng Special Vehicle Manufacturer Co., LTD. Our company focuses on the development and production of semi-trailer, engaged in the semi-trailer industry has more than 20 years of rich experience, is a real set of trade and production as one of the manufacturers.our experienced staff can discuss your requirements at any time to ensure your full satisfaction. modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 13
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 14
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 15
Packing and Shipping
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 16
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 17
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 18
We are your most reliable cooperation partner.
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 19
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 20
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 21
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 22
Certification
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 23
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 24
Exhibition
Stainless Steel 3 Axles Fuel Oil Truck Semi-Trailers 4000 to 45000 Litres Oil Tanker 25
FAQ

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
