4200L Fuel Tanker Semi Trailer Made of Carbon Steel Stainless Steel or Aluminium Alloy

Large Image : 4200L Fuel Tanker Semi Trailer Made of Carbon Steel Stainless Steel or Aluminium Alloy

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Wosheng

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$14,500.00/sets 1-3 sets
Payment Terms:	T/T, L/C

Contact Now

4200L Fuel Tanker Semi Trailer Made of Carbon Steel Stainless Steel or Aluminium Alloy

Description

Use:	Truck Trailer	Type:	Semi-Trailer, Ellipse , Circle
Material:	Aluminum / Alloy	Size:	11300x2500x3750mm
Max Payload:	>30000 Kg	Color:	According To Customer
Axle:	3axles	King Pin:	2"(50mm) Or 3.5"(90mm)
Tire:	12R22.5	Apply:	Fuel, Oil Etc Liquid Cargo Transporting
Suspension System:	Mechanical Or Air Suspension	Landing Gear:	28 Ton
Brake System:	Air Chamber	Condition:	New

Products Description

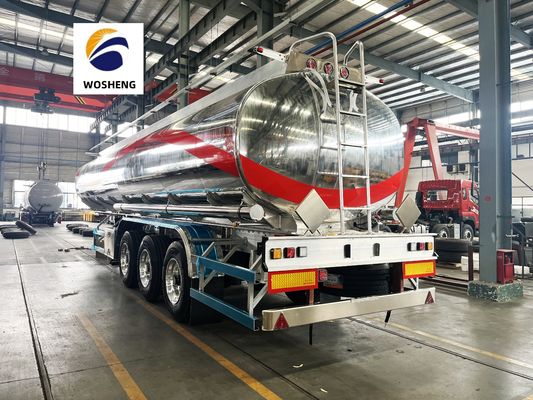

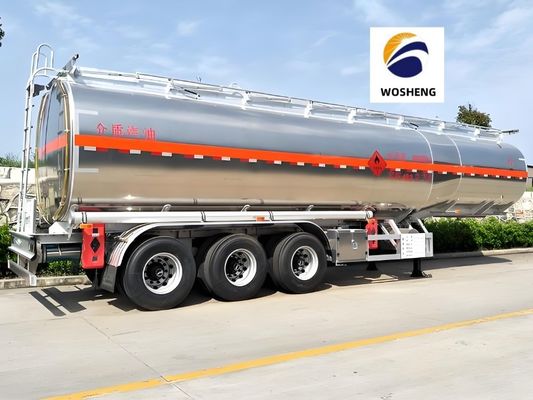

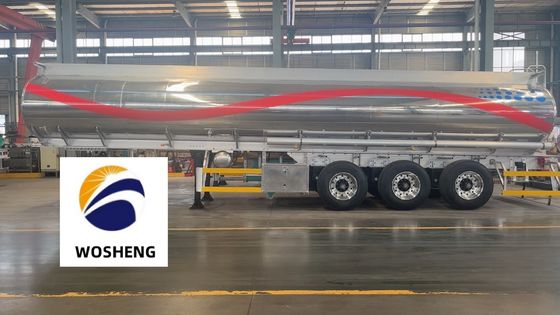

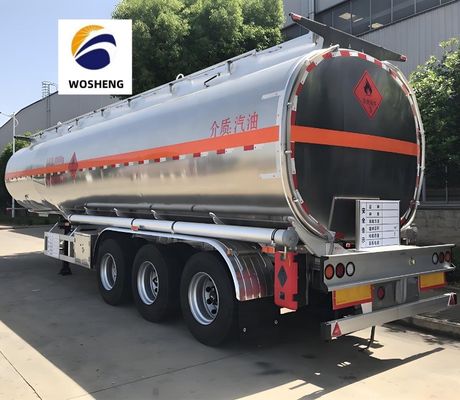

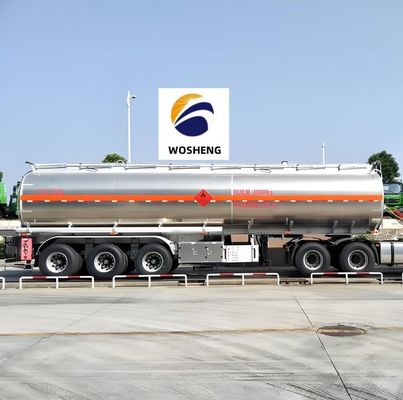

Fuel tanker trailer

1.Compared with the common single one pieve oil tank truck, the semi-trailer fuel tank can effectively improve the transportation efficiency. In the case of the same tonnage, the transportation cost is reduced and the fuel consumption is saved

2.The fuel tank body is made of 4mm 5.5mm 6mm high-quality plate produced by the iron steel company according to thenational standard. It can also produce heating and thermal insulation series tanks.

3.There are multiple anti-wave baffles in the tank. High-pressure gas leak detection is adopted, so that the tank has the characteristics of high strength, stable center of gravity, safe and stable vehicle transportation, etc.

4.Centrifugal pumps, gear pumps and stainless steel pumps can be selected according to the purpose of the tanker, which have the characteristics of large flow rate and fast suction speed.

5.Single-counting and double-counting flow meters can be selected for the measurement of oil tankers, and a tax-controlled computer fuel dispenser can also be installed, and a 10-15m automatic retractable return reel can be installed, equipped with arefueling gun. Edible oil products can be measured with a computerized edible oil product meter.

Drawing

Specification

Shandong Wosheng Fuel Tanker Truck Trailer
Material	Carbon Steel/Aluminum/Stainless Steel
Application	Fuel/Liquid Loading
Volume of Tank	20-55 CBM Customized
Axle	2/3/4 Axles
Compartment	1 to 9
LengthWidthHeight	13000mm2500mm3800mm
European System	Available
Thermal	Available
Manhole	Anti-Explosion
Lifted Axle	Available
Vehicle Examination	X-RAY Room Examination
OEM/ODM	Available
SKD/CKD Cooperation	Available
Tank Shape	D Style/Round Style
Item	Spec.
Tank Thickness	5mm
Dish End Thickness	6mm
Buffle Thickness	4mm
The spare parts below are based on the quantity of compartments.For ExampleOne Compartment.
Manhole	X-RAY Room Examination
Discharge Valve	2*3 inch
Bottom Valve	4 inch Aluminum
Discharge Pipe	3 inch rubber hose,6m/each
Hose Carrier	2 Pieces Carbon Steel/Aluminum
Axles	2/3/4 Axles *13/16 Ton FUWA/BPW/Other
Tire	12R22.5/11.00r20 (8/12/16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other
Rim	9.00*22.5/8.0 (8/12/16 Pieces) Steel/Aluminum
Leaf Spring	90mm13mm10/90mm16mm10
Suspension System	Mechanical or Air Suspension
Kin Pin	50#(2")/90#(3.5") JOST/Other Brand,Changeable
Landing Gear	28 Tons Two Speed,/JOST/Other Brand
Tool Box	Steel or Aluminum
Extinguisher	2 Sets
Above Information are Standard Spec.If customer want to change Spec.Please Let us know. Want to know more details,please contact us directly.

Bottom Valve

Manhole Cover

Discharge Valvel

Discharge Pipe

Air Control

Pressure Gauge

Tanker Body Material Thickness 5mm

End Plate：6mm or customizition
We choose clearly thickness for tanker body and end plate, and the tanker will be much safer than normal type

Axle

Brand :BPW/FUWA Wosheng . Because Fuel tankers are special to transport oil, they need high quality to ensure safety. We usually choose BPW or Fuwa axles(Chinese best axles) . If you want , we can choose other axles.

Tires

Featured Tire Double Coin / LingLong/ Michelin/ Triangle/Bridgestone and other famous brand for choice. Better

Performance in wear resistance.

Landing Gear

Landing Gear The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses lowtem perature premium
chassis oil and israted for service from -30'C to 120°C

Recommend Products

Company Profile

About us

Shandong Wosheng Special Vehicle Manufacturer Co., LTD.

Our Company mainly produce fence semi trailer, lowbed semi trailer , low fence semi trailer , rear dump semi trailer, container flat semi trailer, fuel oil semi trailer, etc all kinds of semi trailer, Our company have more than 20 years produce and exporting experience Quality is firstly, Credit is our base for business, Welcome to know us and build business relationship.

Factory :

Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in
appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.

Packing and Loading

Container usually us 45 feet

Usually by bulk

Certification

we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000 Quality Management Certification. We are also a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents.

We are your most reliable cooperation partner

We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.

High quality , factory lower price , good service !

FAQ

Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research and development, production and sales. Welcome to visit our factory at any time.

Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.

Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.

Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.

Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
