Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400x2610x1550mm Or Customization |
| Max Payload: | 80tons | Color: | Customization |
| Usage: | Container Etc All Kind Of Cargo | Axle: | 3pc |
| Tare Weight: | 7.0 Ton Or Customaization | Loading Capacity: | 50 Tons Or Customization |
| King Pin: | 2.00" (50#)/(90#) | Tire Specs.: | 12R22.5, Triangle Brand Or According Customer Reauirements |
| Rim: | 9.0-22.5 | Main Beam: | Q345b |
| Lead Time: | One Week |

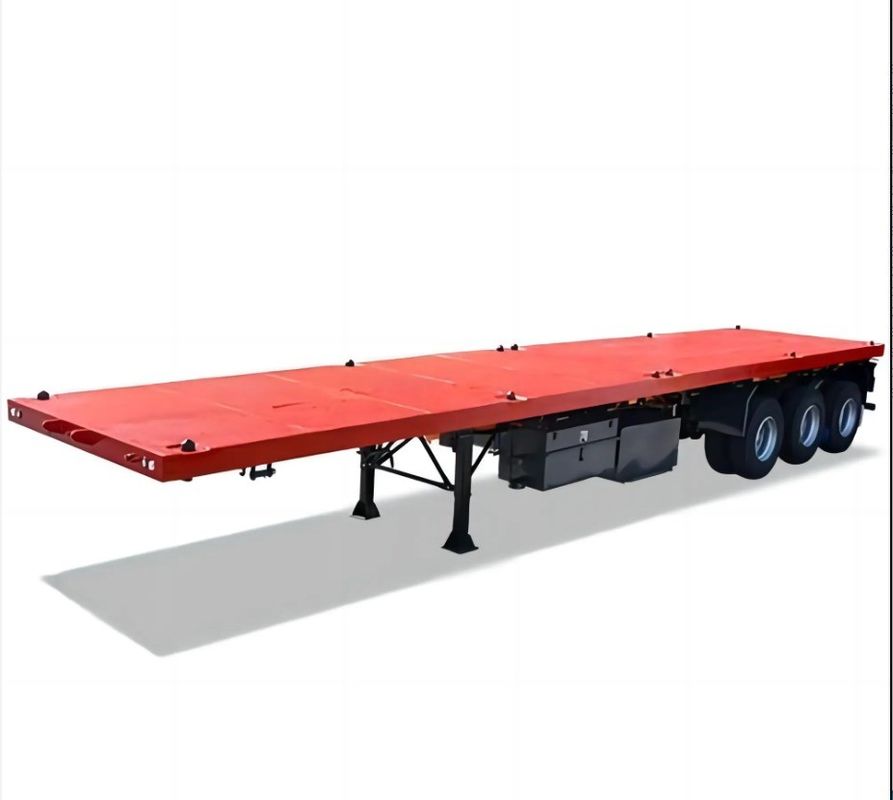

Detail Specification for flatbed semi trailer | ||
Items | Flat bed semi tailer | |
Tare Weight | 7.0 Tons | |
Payload | 50Tons | |
Size | 12400x2610x1550mm | |
Frame | Main Beam: Opting for high strength Q345B steel, 520mm deep welded I-section main beams, Top flange thickness 14mm, Bottom flange thickness 16mm, Middle flage thickness 8mm | |
Cross Beam: Heavy duty thickened 10# channel steel | ||
Side Beam: Heavy duty 18# channel steel | ||
Floor: 3mm thickness checkered plate | ||
Axles | 13/16/20 tons, axle amount optional like 2/3/4/5/6 axle ... axle brand optional like SAF/FHWA/BPW etc | |
King pin | 2.00"(50#), bolting king pin, JOST brand | |
Suspension | Heavy duty type tri-axles suspension with equalizers. American design | |
Steel Spring | Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm | |
Landing gear | 28tons lifting capacity , two speed | |
Tire specs | 12R22.5 Triangle brand , or another brand according to customer | |
Rim | 9.00-22.5 brand according to customer | |
Paiting | Sanding , anti-corrosion , one primer paining add two layer top coat painting | |
Side Gurd | According to customer | |
Electrical system | One unit of 24v 7-pin ISO 1185 socket: LED light | |
spare tire | Two set of heavy duty spare wheel carriers, indluding a riser | |
Tool Box | One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar | |
