Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400x2550x3500mm |
| Max Payload: | 60Tons | Product Name: | Side Columns Timber Semi Trailer |
| Dimension(Lx W X H)(mm): | 12400x2550x3500mm(customizable) | Tare Weight(kg): | 8200(depends On Final Configuration) |
| Max Loading Capacity(kg): | 60000(customizable) | Axles: | 13Ton. 3 Axle Brand Wosheng |
| Tire: | 12.00R22.5(optional)Brand Tringle, Double Coin Etc | Rim: | 9.00-22.5(optional) |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST | Suspension: | Mechanical Suspension |
| Color: | As Per Customer Requirement |
Detail Specification for flatbed semi trailer | ||

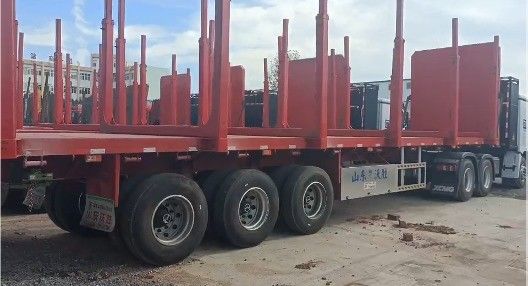

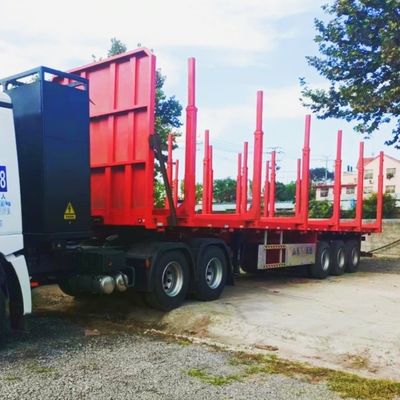

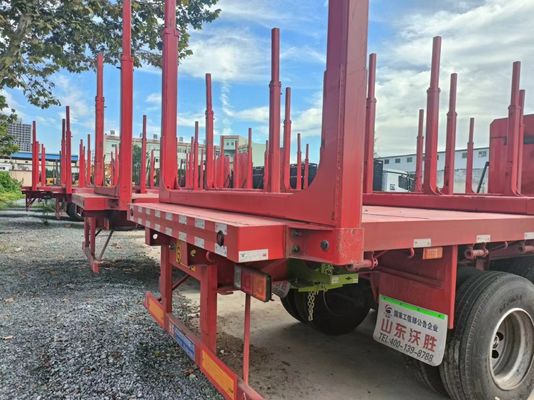

Items | Side columns timber semi trailer | |
Tare Weight | 8.2 Tons | |
Payload | 60Tons | |
Size | 12400x2550x3500mm | |
Frame | Main Beam: Opting for high strength Q345B steel, 480mm deep welded I-section main beams, Top flange thickness 14mm, Bottom flange thickness 16mm, Middle flage thickness 8mm | |
Cross Beam: Heavy duty thickened 10# channel steel | ||
Side Beam: Heavy duty 16# channel steel | ||
Floor: 3mm thickness checkered plate | ||
Axles | 13/16/20 tons, axle amount optional like 2/3/4/5/6 axle ... axle brand optional like SAF/FHWA/BPW etc | |
King pin | 2.00"(50#), 3.5"(90#)bolting king pin, JOST brand | |
Suspension | Heavy duty type tri-axles suspension with equalizers. air or mechanical suspension | |
Steel Spring | Six sets of reliable famous brand , 10pcs leaf spring, thickness 13 or16mm. width 90mm | |
Landing gear | 28tons lifting capacity , two speed | |
Tire specs | 12R22.5 Triangle brand , or another brand according to customer | |
Rim | 9.00-22.5 brand according to customer | |
Paiting | Sanding , anti-corrosion , one primer paining add two layer top coat painting | |
Side Gurd | According to customer | |

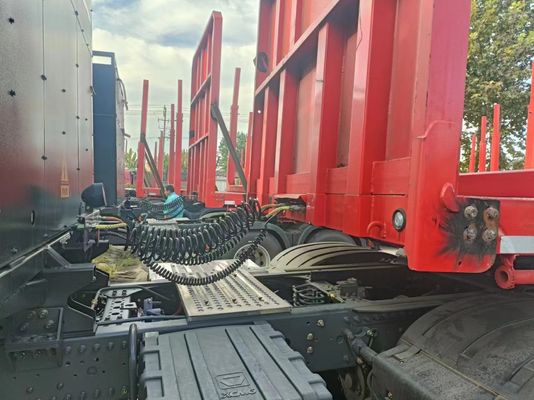

Electrical system | One unit of 24v 7-pin ISO 1185 socket: LED light | |
spare tire | Two set of heavy duty spare wheel carriers, indluding a riser | |
Tool Box | One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking | |
Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar | |
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; | |
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. | |
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. | |
Remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. | |
Pls kindly noted that pictures and configuration information are only for your reference.The final product can be made according to specific requirements. | ||
