Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400*2610*1550mm |
| Max Payload: | 20T-80T | Product Name: | Flatbed Semi-trailer |
| Tare Weight: | 20T-80T | Axle: | 4 Axle |
| Tire: | 12R22.5 | Suspension: | Mechanical Suspension Air Suspension |
| King Pin: | 2"(50mm) Or3.5"(90mm) | Brake System: | Dual Line Braking System |

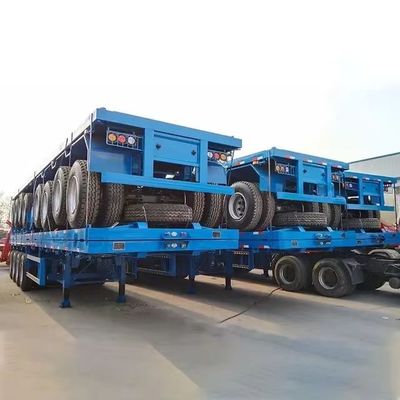

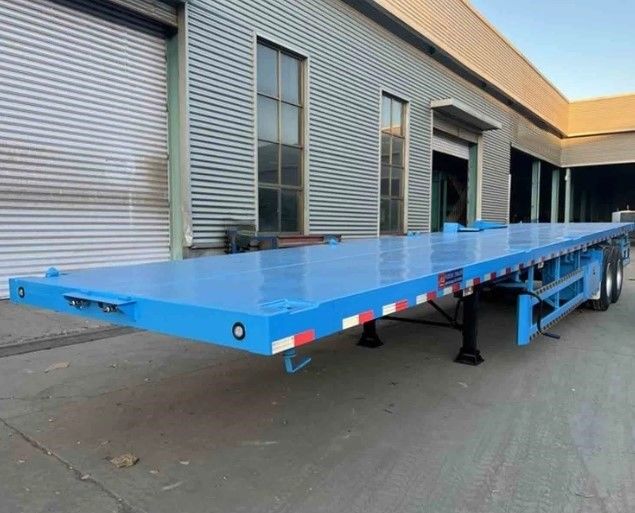

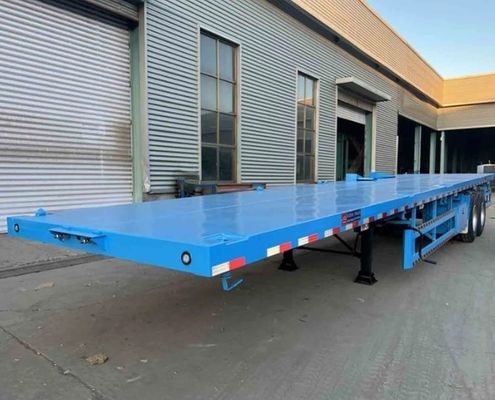

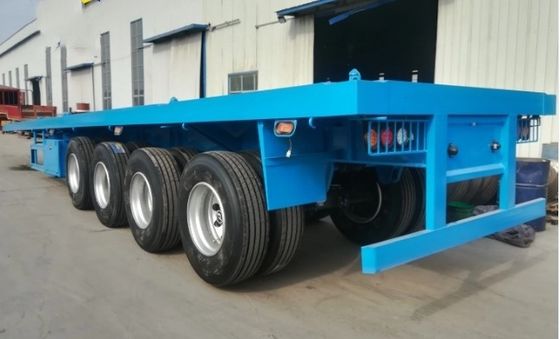

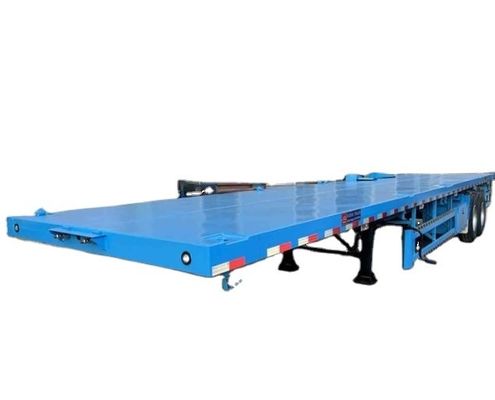

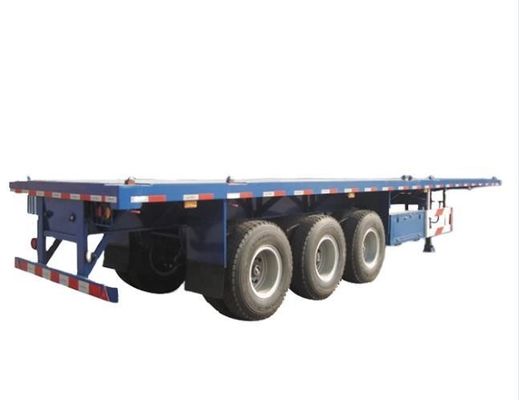

Product Name | Flatbed Semi Trailer | |||
Dimension(Lx W x H)（mm） | outside 12400×2610×1550mm (customizable) | |||
Front Guard Height (mm) | 1550mm (customizable) | |||
Tare weight (kg) | 7000 (depends on final configuration) | |||
Max Loading Capacity (kg) | 50000 （customizable) | |||
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) | |||
Side Beam | Q235 16# channel steel (customizable) | |||
Bottom Plate | 3mm diamond plate (customizable) | |||
Axles | 13/16/20 Ton. Axle amount optional like 2/3/4/6axles ..., Axle brand optional like SAF /FUWA/BPW etc | |||
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) | |||
Rim | 9.00-22.5/8.00-20/8.50-20 | |||
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional | |||
Suspension | Mechanical Suspension Air Suspension(American or Geman) | |||
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) | |||
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. | |||
Twist-lock | 4/8/12 units (customizable) | |||
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums | |||
ABS System | None or installed as your requirement. | |||
Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) | |||
Color | As per customer requirement | |||
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; | |||
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. | |||

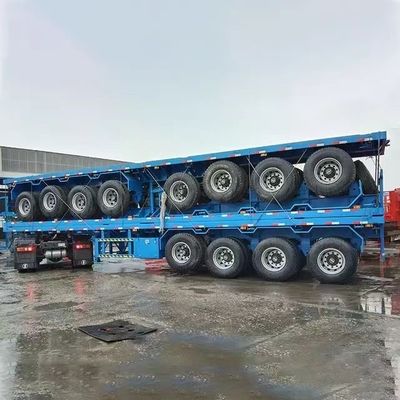

Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. | |||
Remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. |
