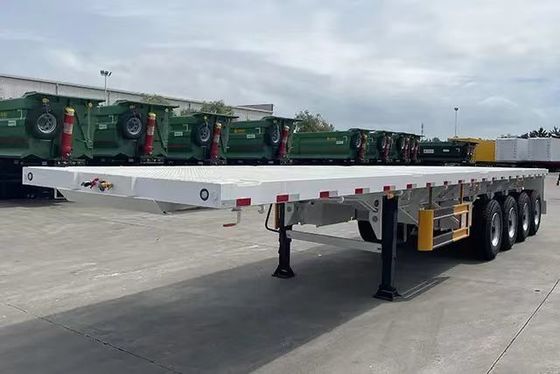

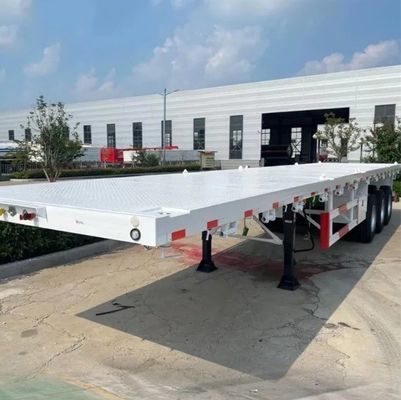

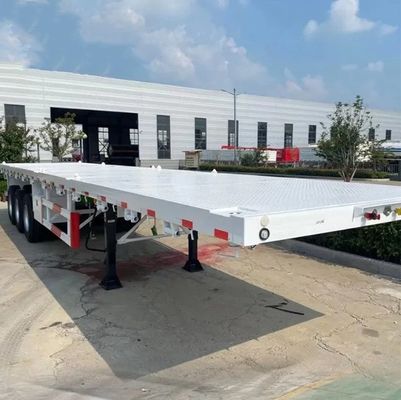

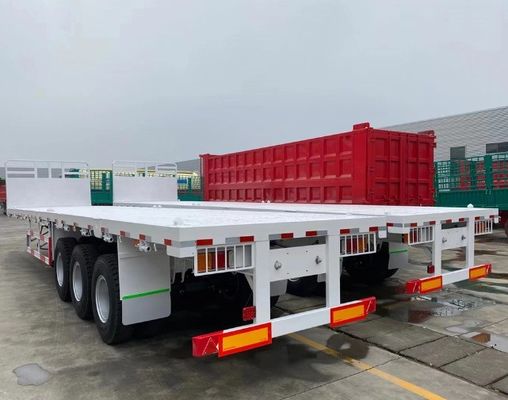

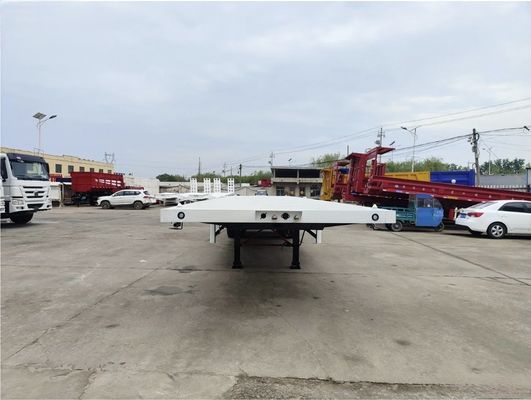

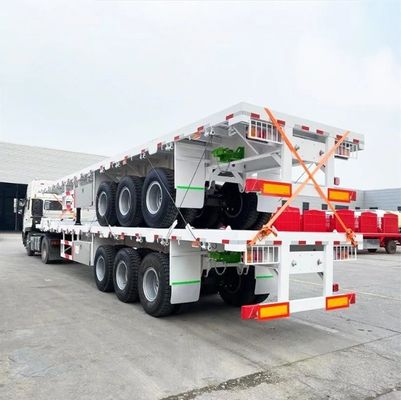

Customized 3 Axles 40FT Container Flat Bed Semi Truck Trailers with Max Payload 100tons

Large Image : Customized 3 Axles 40FT Container Flat Bed Semi Truck Trailers with Max Payload 100tons

Product Details:

Place of Origin:	Shandong China
Brand Name:	WoSheng flatbed semi trailer

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,600.00/units 1-3 units
Payment Terms:	T/T, L/C

Contact Now

Customized 3 Axles 40FT Container Flat Bed Semi Truck Trailers with Max Payload 100tons

Description

Use:	Truck Trailer	Type:	Semi-Trailer
Material:	Steel	Size:	12500x2500x1600-3100mm Or Customizable
Max Payload:	100tons	Product Name:	Wosheng Flatbed Semi Trailer
Function:	Transport Container And Bulk Cargos	Main Beam:	Q345B, Height 0.5m, Upper /down/middle Plate Is 14/16/8mm
Color:	Customized Color	Leaf Spring:	90(w)mm13/16(thickness)mm10(layer)
King Pin:	2"(50mm)or3.5"(90mm)	Axle:	13/16/20ton*3 Axles
Suspension:	Mechanical /Air Suspension	Landing Gear:	28t Heavy Duty Landing Gear
Tire:	12.00R22.5

Shandong Wosheng Semi Trailers

Shandong Wosheng is a professional semi-trailer manufacturer with more than ten years of production experience. With a professional R & D team, we can do special design and production according to the needs of customers, like flatbed, lowbed, fence, sidewall, side curtain, container skeleton, ,fuel tank,dump semi trailer etc. Contact us whenever you need !

Products Description

Wosheng Flatbed semi trailer is suitable for transporting large, heavy goods such as containers, steel, building materials, machinery and equipment. It has strong load capacity, convenient loading and unloading, and high transportation efficiency.

Flatbed Semi Trailer Specification
20FT FLATBED SEMI TRAILER	40FT FLATBED SEMI TRAILER	45FT FLATBED SEMI TRAILER
Brand: Wosheng	Brand: Wosheng	Brand: Wosheng
2 Axles/3 Axles	2 Axles/3 Axles	3 Axles/4 Axles
20ft container or cargo loading	140ft/220ft Container or cargo loading	140ft/145ft container or cargo loading
Loading Capacity: 20 - 60 Tons	Loading Capacity: 30 - 80 Tons	Loading Capacity: 30 - 100 Tons
Gooseneck Type: Yes	Gooseneck Type: Yes	Gooseneck Type: Yes
Tandem Type: Yes	Tandem Type: Yes	Tandem Type: Yes
Main Beam
Material: Q345/T700	Material: Q345/T700	Material: Q345/T700
Upper Plate Thickness: 12mm	Upper Plate Thickness: 16mm	Upper Plate Thickness: 16mm
Middle Plate Thickness: 6mm	Middle Plate Thickness: 10mm	Middle Plate Thickness: 10mm
Lower Plate Thickness: 14mm	Lower Plate Thickness: 18mm	Lower Plate Thickness: 18mm
Height: 500mm	Height: 500mm	Height: 500mm
Platform Thickness: 2.5mm	Platform Thickness: 3mm	Platform Thickness: 3mm
Product Dimension
L 7000mmW 2500mmH 1570mm	L 12400mmW 2500mmH 1570mm	L 13950mmW 2500mmH 1600mm
Axles
2/3 Axles *13/16 Ton WOSHENG/FUWA/BPW/Othe	2/3 Axles *13/16 Ton WOSHENG/FUWA/BPW/Other	3/4 Axles *13/16 Ton WOSHENG/FUWA/BPW/Other
Tire
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand	12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand	12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand
Rim
9.00*22.5 (8/12 Pieces) Steel/Aluminum	9.00*22.5 (8/12 Pieces) Steel/Aluminum	9.00*22.5 (8/12 Pieces) Steel/Aluminum
Leaf Spring
90mm13mm10/90mm16mm10Pcs	90mm13mm10/90mm16mm10Pcs	90mm13mm10/90mm16mm10Pcs
King Pin
50#(2")/90#(3.5") JOST/Other Brand	50#(2")/90#(3.5") JOST/Other Brand	50#(2")/90#(3.5") JOST/Other Brand
Landing Gear
28 Ton Two Speed,JOST/Other Brand	28 Ton Two Speed,JOST/Other Brand	28 Ton Two Speed,JOST/Other Brand
Twist Lock
4 Sets	12 Sets	12 Sets
Vehicle Painting
Electrophoresis painting	Electrophoresis painting	Electrophoresis painting

Example of engineer drawing

We can design as per your requirments !

Details Images

Landing Gear

JOST or Wosheng landing gear can be optioned made in aluminum or steel;designed to work under both high and low temperature in the
range of 30℃ to 120℃.

Twist Lock

Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs.Customers can change the number of locks according to your own needs.

Anti-Tire abrasion Suspension

Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.

Brake System

T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Tool Box

Located on the side of the trailer without taking up too much space, it can store necessary maintenance tools, straps and safety equipment. made of durable materials and securely locks to keep the contents safe.

Axle BPW/FUWA/LEAO Axle optional.

Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000 kilometers.
